Tilton VQDE VQHR Master Cylinder Kits (76-000)

Regular price $226.50 USD
Regular price $239.00 USD Sale price $226.50 USD
Sale Sold out
Cylinder Size

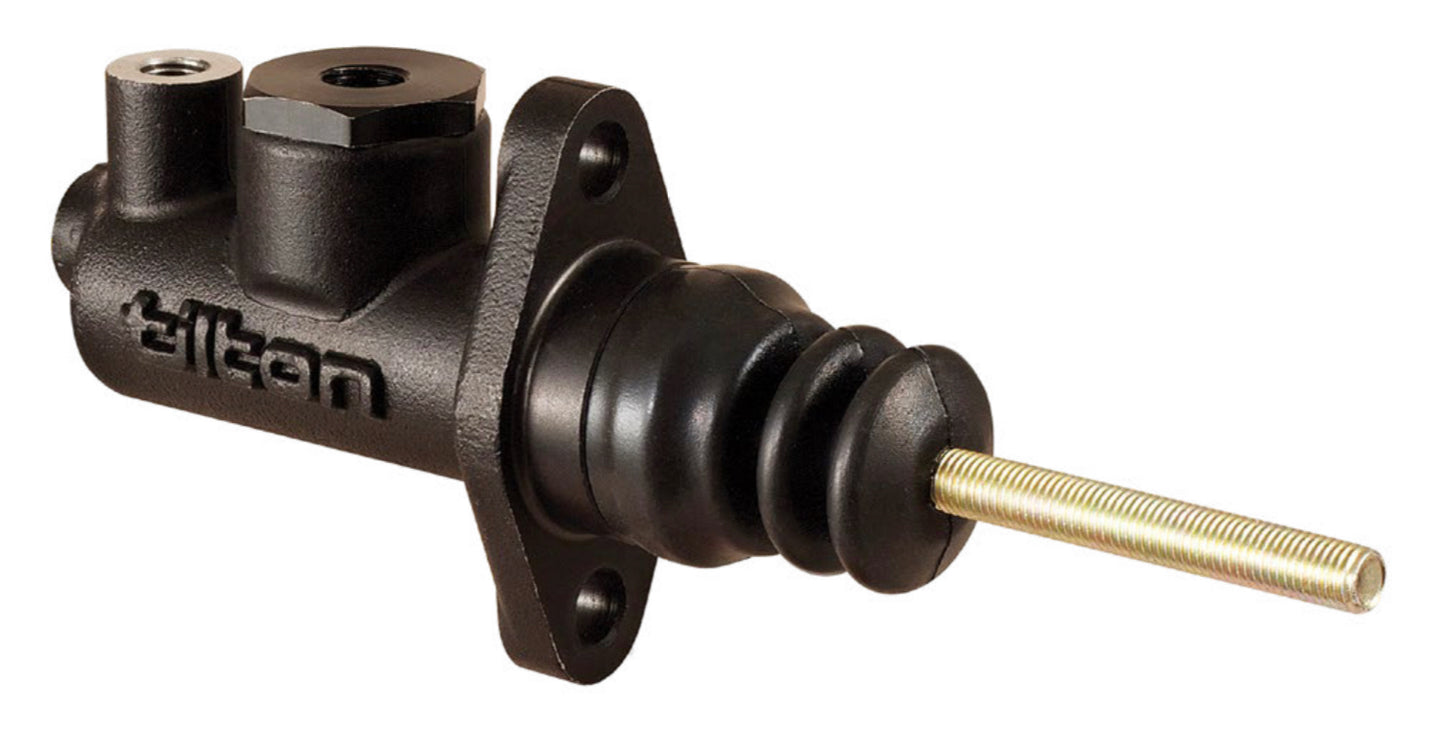

Tilton VQDE VQHR 76-Series Master Cylinder - 5/8” Cylinder

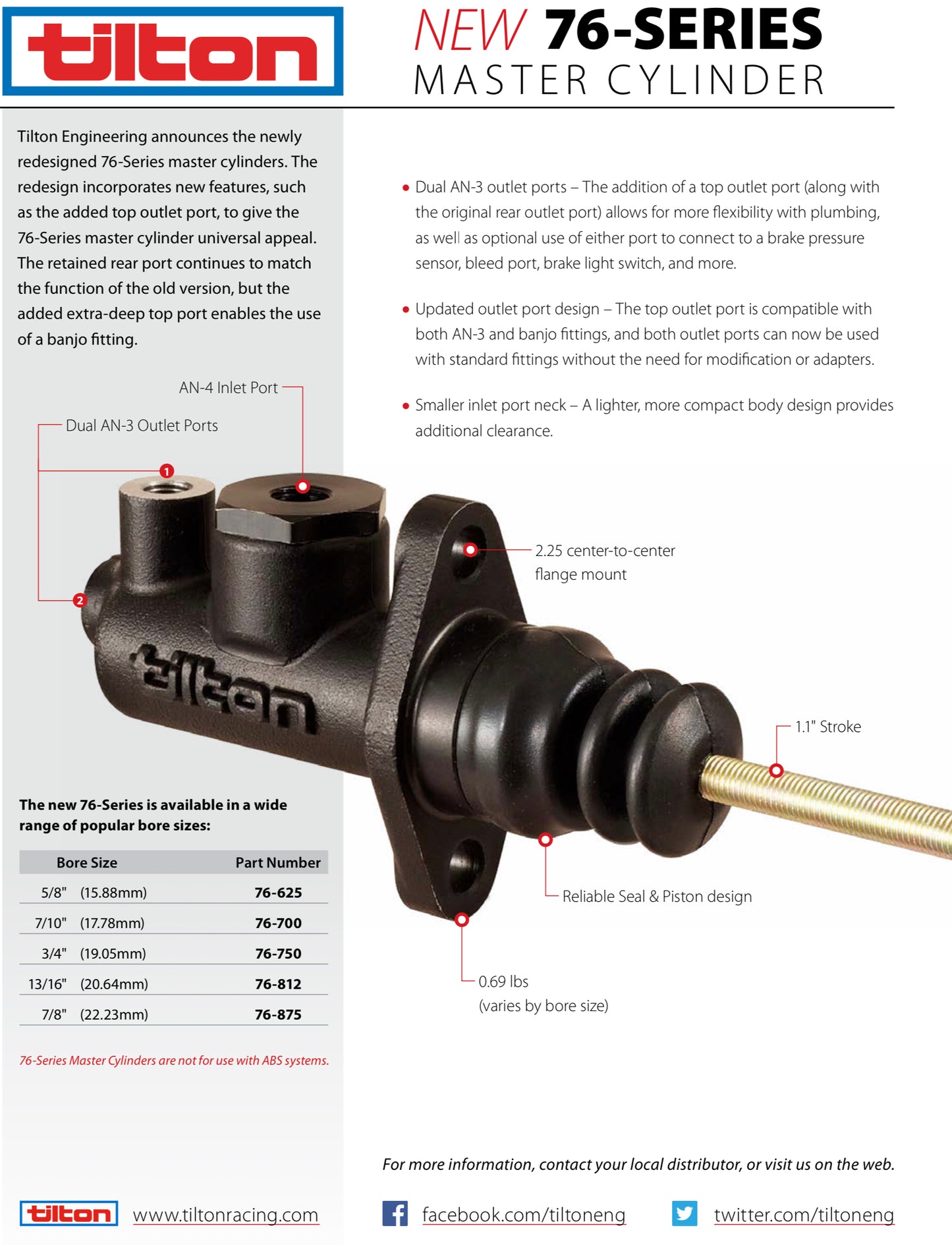

Tilton’s newly designed 76-series master cylinders incorporate new features, such as the added top outlet port, to provide universal appeal. 76-Series master cylinders retain the rear port to continue to match the function of the old version, while the added extra-deep top port enables the use of a banjo fitting.

  • Addition of a top AN-3 outlet port (along with the original rear outlet port) allows for more flexibility with plumbing.
  • Optional use of either port to connect to a brake pressure sensor, bleed port, brake light switch, and more.
  • Top outlet port is compatible with both AN-3 and banjo fittings.
  • Both outlet ports can now be used with standard fittings without the need for modification or adapters.
  • Lighter, more compact body design provides additional clearance.
  • Available in seven bore sizes (see P/N Options above).
  • Includes Steel Braided Hose & fittings to connect directly to the OEM Slave Cylinder.
  • Includes fittings to connect to the OEM Clutch Fluid Reservoir.

-Flange-mount onto pedal assemblies with 2.25” center-to-center mounting studs
-Aluminum alloy body is black anodized for corrosion resistance
1.1” stroke
-Dual AN3 outlet port options (rear & top). Top outlet port is deep for use with most banjo fittings. Rear outlet port is standard depth AN3 spec.
-7/16”-20 inlet port
-Fits Tilton 600-Series and 800-Series (clutch only) pedal assemblies/balance bars


-2003 to 2008 350z
-2003 to 2007 G35 Coupe
-2003 to 2006 G35 Sedan
*Does not fit 2007 to 2008 G35 Sedans

Other Tilton Products available for any chassis/engine - if you dont see what you’re looking for please message us directly.

We shop our competition - if you find a lower comprable price we will match or beat it - message for details!

Tilton has produces high-end driveline, brake system, and starter components. They also offer complete driveline packages that include a Bellhousing, clutch, starter, and throw-out bearing. These packages can be configured to fit different applications and set ups.
