Tial MV-S 38mm V-Band External Waste Gate

Regular price $349.99 USD
Regular price $399.99 USD Sale price $349.99 USD
Sale Sold out
Color

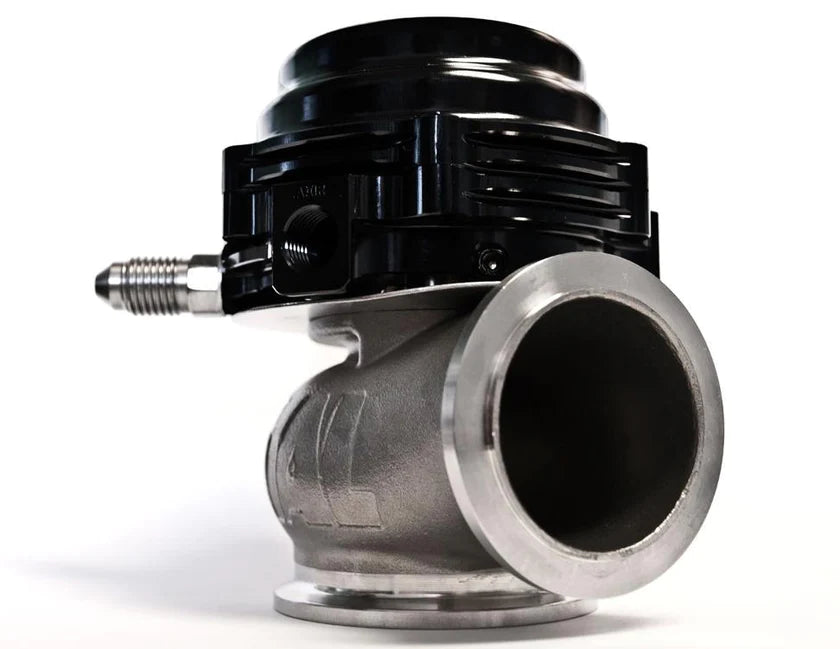

TiAL MVS Wastegate - 38mm V-Band External Wastegate

The MV-S 38mm unit is much more compact than its F38 predecessor - standing only 3.7" in height. The V-Band flanges make installation pain free, the three lower & two upper air ports make connecting pressure sources and boost controllers easy!

TiAL MVS Features
  • High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
  • High temperature silicone Nomex reinforced actuator diaphragm.
  • 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
  • Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
  • All Stainless Steel hardware.
  • Mating weld flanges are 304L

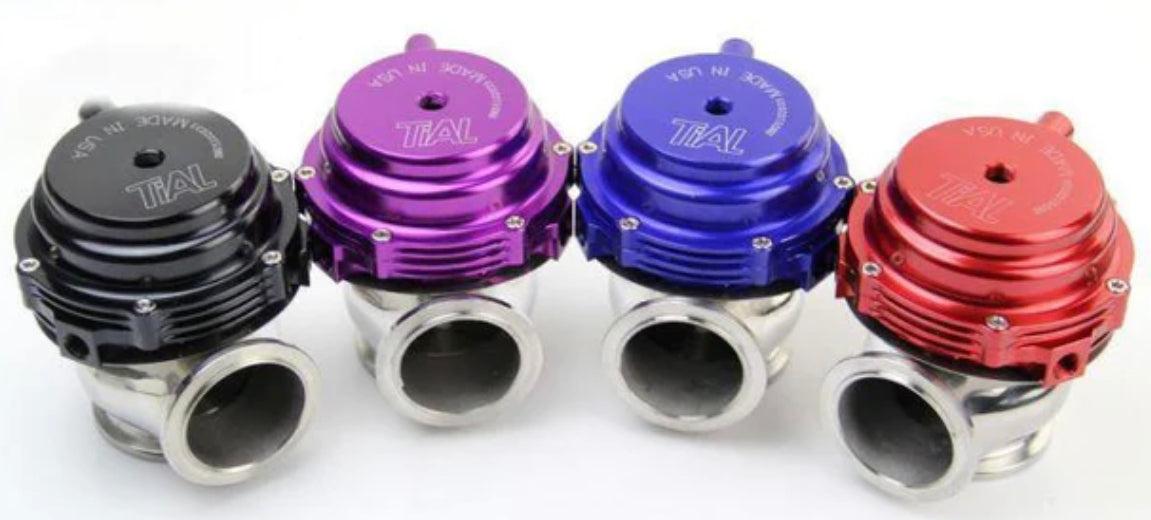

  • Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
  • 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
  • Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall, more compact than any other external wastegate on the market today.
  • V-Band inlet and outlet make install easy, flanges and clamps are in the box!
What's in the Box?
  • MV-S Assembly
  • MV-S Valve Seat
  • Inlet V-band clamp
  • Inlet Flange
  • Outlet V-Band Clamp
  • Outlet Flange
  • 2 TiAL Air Fittings
  • Plugs for unused airports

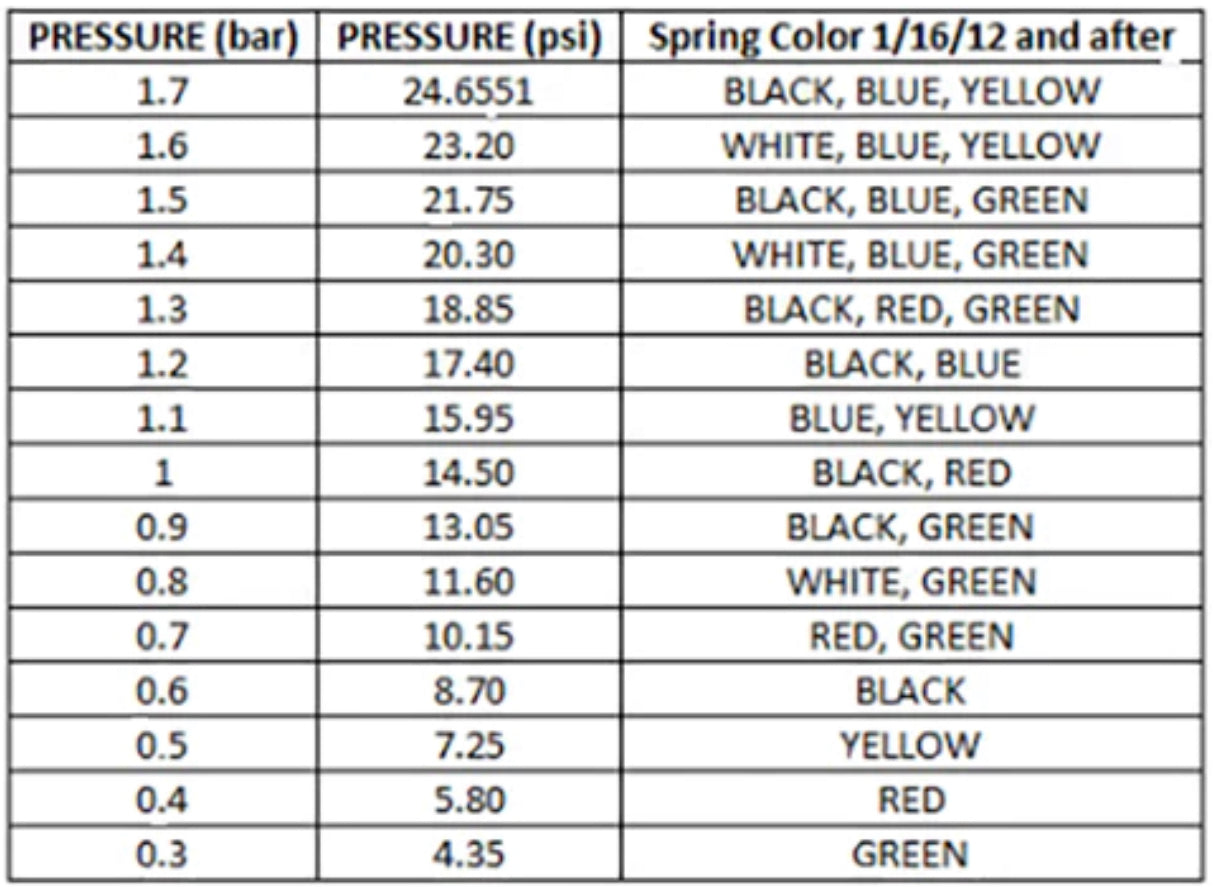

  • Includes multiple springs
