HKS Supercharger Vehicle Specific Kit Supercharger Series (TOYOTA)

SUPERCHARGER VEHICLE SPECIFIC KIT SUPERCHARGER Series (TOYOTA)

 Description

The HKS GT SUPERCHARGER, Vehicle Specific Kit includes supercharger, brackets, piping, intercooler, traction oil and etc. the parts needed for each specific vehicle. There are two types of the kit.



PRO KIT

HKS GT SUPERCHARGER Pro Kit has all the parts you need for installation except computer-control device. (Maintenance parts like, oil, plug and etc. are not included) It needs a separate engine control device and need to set the fuel and ignition timing. We have special fueling parts and controlling device for the Pro Kit which let you set up easily. HKS GT SUPERCHARGER Pro Kit has a "SETUP KIT" for CR-Z. It's a set of Supercharger and brackets. It needs other parts like supercharger pulley, suction and chamber and also it needs to make separate piping.

COMPLETE PARTS

GT S/C unit
Super Power Flow
Intercooler
Suction pipe
S/C bracket
Chamber pipe
Pulley/belt
Relief valve
Traction oil cooler
Traction oil tank
Traction oil

COMPLETE KIT

Release date will be announced later. HKS GT Supercharger Complete Kit has all the parts you need for installation. (Maintenance parts like, oil, plug and etc. are not included) HKS has set the best setting for each vehicle with our computer-control device for the fueling and ignition timing to get the most out of the normal engine.

COMPLETE PARTS

GT S/C unit
Super Power Flow
Intercooler
Suction pipe
Injector
Chamber pipe
Special sub-computer
Relief valve
S/C bracket
Traction oil cooler
Pulley/belt
Traction oil tank



Details

Make

TOYOTA

Name	PULLEY UPGRADE KIT

Model

86

Product Number

12002-KK001-17-20

Engine

FA20

Remarks

Product: GT SUPERCHARGER PRO KIT, S/C SIZE: GTS7040L, /GT S/C Ver.3 Pro KIT /No engine management part is included. (Resetting of fuel & ignition is required.) /Minor modification of the bumper reinforcement, radiator support, and front chain cover is required. (Estimated Installation Hours: Approx. 8 hrs.) / 2017+ OK by changing the silicon hose for throttle to long one.

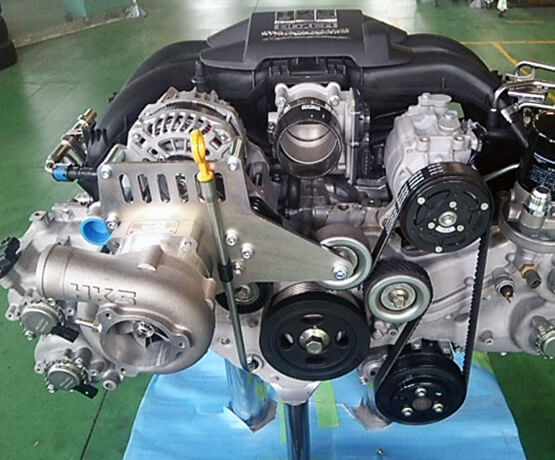

GT SUPERCHARGER for TOYOTA 86/SCION FR-S and SUBARU BRZ -Ver.3-

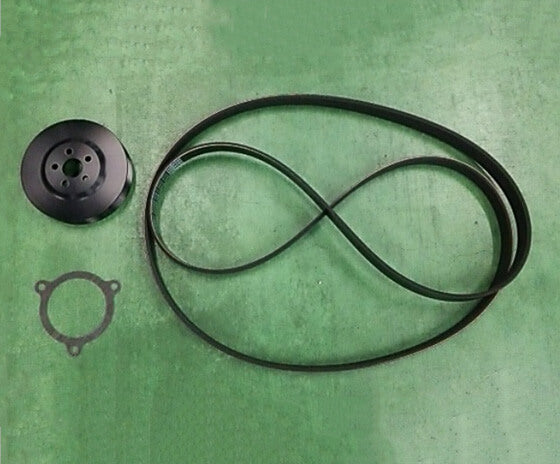

PULLEY UPGRADE KIT

This kit improves the engine output better than the base kit when using with E85.

Features

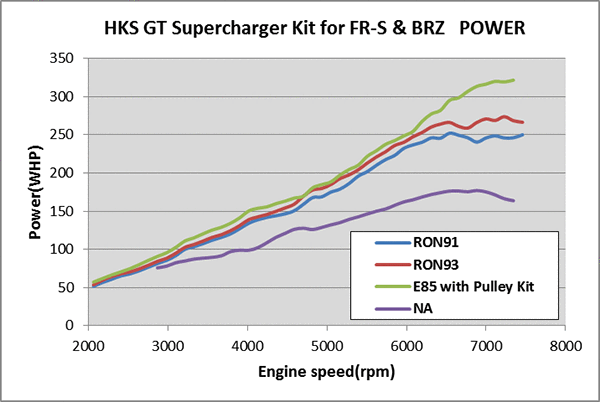

Additional installation of a small diameter pulley to Supercharger Kit Ver.3, which is best match with 91 octane gasoline, upgrades the fuel parts with E85 and leads to +90% more power compared to the stock.
HKS S/C RON91: RON91 gasoline spec. 255HP (+80HP of the stock)
HKS S/C E85: E85 fuel +PULLEY UPGRADE KIT + Fuel Pump + Injector. 320HP (+150HP of the stock)
※Pulley Upgrade Kit, fuel pump, and injector are available separately.
This kit is designed exclusively as the optional part for 12001-KT003/KT004. If E85 or racing fuel is not used, the output may be lowered than the one with the standard pulley size.


Make

TOYOTA

Name	VERSION UP KIT TO GT S/C SYSTEM FR-S

Model

86

Product Number

12002-KK002-17-20

Engine

FA20

Remarks

Product: VERSION UP KIT to GT/SC SYSTEM FR-S, /This product is to upgrade GT SUPERCHARGER SYSTEM ZN6/ZC6 FA20 Ver.2(12001-AT009) to GT SUPERCHARGER SYSTEM ZN6/ZC6 FA20 Ver.3(12001-KT003). /Compatibility of the vehicle with an AT transmission has not been confirmed.



GT SUPERCHARGER for TOYOTA 86/SCION FR-S and SUBARU BRZ -Ver.3-
VERSION UP KIT to GT/SC SYSTEM FR-S

Higher engine power for those who are using V2!

Features

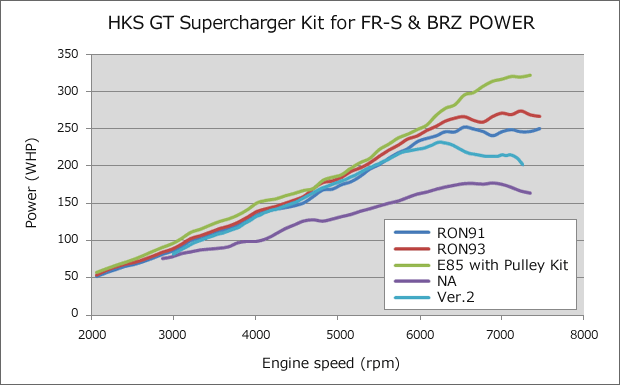

Upgrading Supercharger Kit Ver.2 to ver.3, which is best match with 91 octane gasoline, enables the engine to increase the output.
With RON91: 255HP (+80HP of the stock)
With E85+PULLEY UPGRADE KIT + Fuel Pump + Injector: 320HP (+150HP of the stock)
The following parts have been redesigned:
Suction Pipe: The diameter of the joint to the compressor is enlarged.

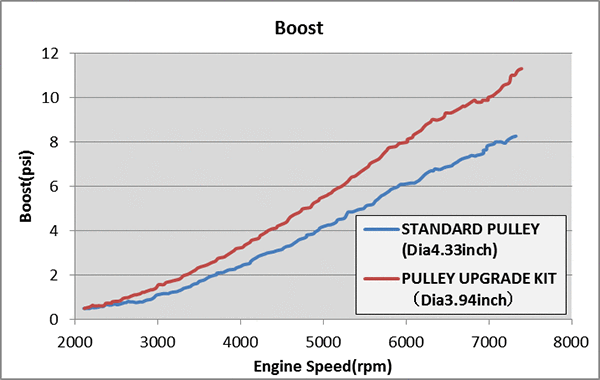

Pulley: The pulley diameter is enlarged for better matching with RON91 gasoline.
　　　 3.54 inches ⇒ 4.33 inches
S/C Bracket: The S/C layout is slightly modified to use the large diameter pulley.

Make

TOYOTA

Name	GT2 S/C SYSTEM Pro FR-S

Model

86

Product Number

12001-KT004 -17-20

Engine

FA20

Remarks

Product: VERSION UP KIT to GT/SC SYSTEM FR-S, /This product is to upgrade GT SUPERCHARGER SYSTEM ZN6/ZC6 FA20 Ver.2(12001-AT009) to GT SUPERCHARGER SYSTEM ZN6/ZC6 FA20 Ver.3(12001-KT003). /Compatibility of the vehicle with an AT transmission has not been confirmed.

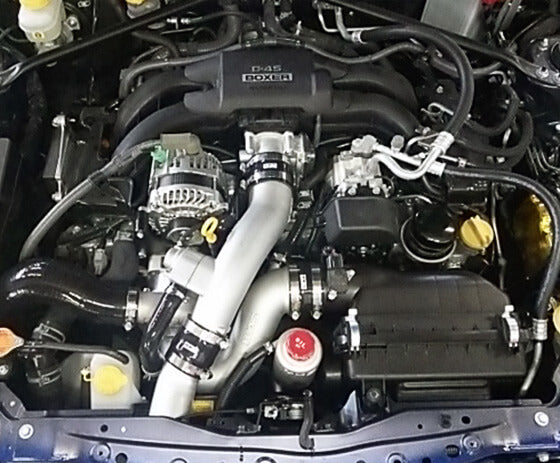

Supercharger kit with new layout best match with the 91 octane gasoline.


Features
Matching with the 91 octane gasoline is optimized. The kit layout and supercharger setting are improved from the existing kit.

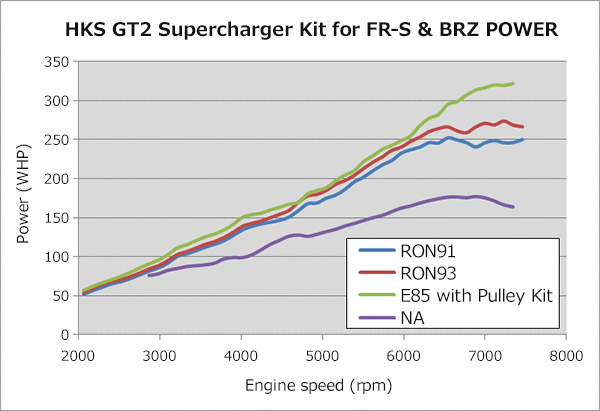

The engine output shows a 50% increase from the stock.
PULLEY UPGRADE KIT and E85 fuel + upgraded fuel part enable the engine to output 90% more compared to the stock.
RON 91 gasoline spec. 255HP (+80HP of the stock)
E85 fuel + Pulley Upgrade kit + Fuel Pump + Injector. 320HP (+150HP of the stock)
※Pulley Upgrade Kit, fuel pump, and injector are available separately.
This kit is designed exclusively for 86/FR-S/BRZ. All necessary installation parts are included in the kit.
