HKS Supercharger Vehicle Specific Kit Supercharger Series (HONDA S2000)

SUPERCHARGER VEHICLE SPECIFIC KIT SUPERCHARGER Series (HONDA S2000)

 Description

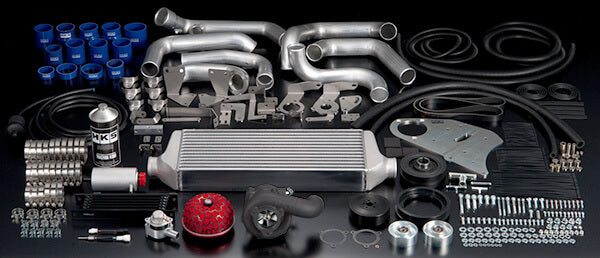

The HKS GT SUPERCHARGER, Vehicle Specific Kit includes supercharger, brackets, piping, intercooler, traction oil and etc. the parts needed for each specific vehicle. There are two types of the kit.



PRO KIT

HKS GT SUPERCHARGER Pro Kit has all the parts you need for installation except computer-control device. (Maintenance parts like, oil, plug and etc. are not included) It needs a separate engine control device and need to set the fuel and ignition timing. We have special fueling parts and controlling device for the Pro Kit which let you set up easily. HKS GT SUPERCHARGER Pro Kit has a "SETUP KIT" for CR-Z. It's a set of Supercharger and brackets. It needs other parts like supercharger pulley, suction and chamber and also it needs to make separate piping.

COMPLETE PARTS

GT S/C unit
Super Power Flow
Intercooler
Suction pipe
S/C bracket
Chamber pipe
Pulley/belt
Relief valve
Traction oil cooler
Traction oil tank
Traction oil

COMPLETE KIT

Release date will be announced later. HKS GT Supercharger Complete Kit has all the parts you need for installation. (Maintenance parts like, oil, plug and etc. are not included) HKS has set the best setting for each vehicle with our computer-control device for the fueling and ignition timing to get the most out of the normal engine.

COMPLETE PARTS

GT S/C unit
Super Power Flow
Intercooler
Suction pipe
Injector
Chamber pipe
Special sub-computer
Relief valve
S/C bracket
Traction oil cooler
Pulley/belt
Traction oil tank



Details

Make

HONDA

Name	GT2 S/C SYSTEM PRO S2000 (AP1/AP2) JDM/USDM

Model

S2000

Product Number

12001-AH010-99-03

Engine

F20C

Remarks

N/A



With F1 level piston speed and super high rpm characteristics, the S2000 is a great representation of Japanese sports cars. This kit has been designed to try and compliment these characteristics and deliver more power as the engine rpm increases creating a forced induction system that those who love Honda engines will agree with.
Smooth torque delivery leads to ease of use which makes the HKS GT Supercharger a great match for the engine. We would like those who want more power but feel resistance to forced induction on a Honda to experience this setup which has acceleration feel reminiscent of a tuned NA engine.

GT SUPERCHARGER Pro KIT
S/C Unit, S/C Oil Parts, S/C Fitting Parts, S/C unit Pulley, Belt, Suction Pipe, Intercooler, Intercooler Pipe (Includes relief valve)

* GT2 S/C Pro Kit requires a separate engine control system in order to operate correctly
* φ58 restrictor included in the GT2 S/C Pro kit is for US specification vehicles and may cause damage to Japanese specification cars.

Notes for Installation
Kit does not have control device, you need separate device.
Injector (Stock injector volume is insufficient to bring out full supercharger performance)
Spark Plug: HKS Super Fire Racing M45i or higher
Engine oil with high temp grade of over 40 should be used
Clutch should be changed to one of higher torque capacity
When fitting front mount intercooler, The stock air guide and under cover require small modification for pipe clearance.
