Red Line Oil: D4 ATF/D6 ATF/HIGH-TEMP ATF/Racing ATF/Lightweight Racing ATF/NON -SLIP CVT
Couldn't load pickup availability
Red Line Oil: D4 ATF/D6 ATF/HIGH-TEMP ATF/RACING ATF/LIGHTWEIGHT RACING ATF/NON -SLIP CVT

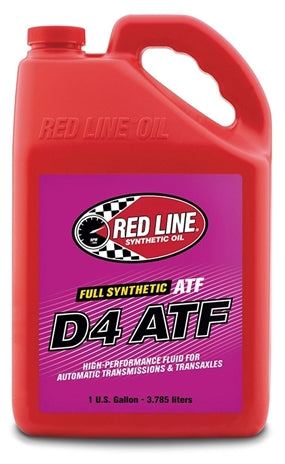

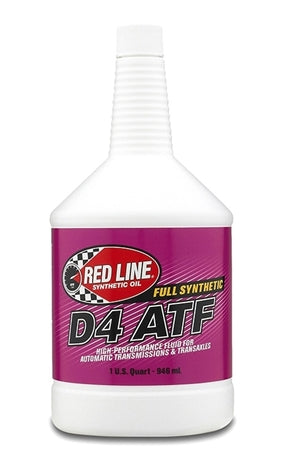

D4 ATF - QUART
- Our most versatile ATF, use where Dexron III®, Dexron II®, Mercon® and Mercon V® fluids are recommended, for use in automatic, manual transmissions and power steering
- Popular applications: Toyota Type T-III and T-IV, Honda ATF-Z1, Nissan Matic D, J & K, Diamond SP-II, SP-III, Mazda ATF M-V, most BMW and Audi/VW automatic transmissions
- Also used with manual transmissions and transaxles like T-5, T-45, T-56 and late-model BMW, provides a GL-4 level of gear protection
- Excellent cold weather operation
Since most GL-5 gear oils for differentials are too slippery for manual transmissions, Red Line offers these products that ensure proper shifting while providing ultimate wear protection
- Appropriate coefficient of friction for most manual transmission synchronizers (other's synthetic gear oils are often too slippery for proper synchro engagement)
- Red Line offers lubricants to pinpoint nearly every transmission application
- MT-LV, MTL, MT-85 & MT-90 are not for use in differentials with hypoid gears
- Excellent gear and synchro protection, balanced slipperiness for easier shifting in cold climates
- Excellent for high- and low-mile transmissions
- Compatible with petroleums and other synthetics
TYPICAL PROPERTIES
| SAE Viscosity Grade (Motor Oil) | 0W20 |
| SAE Viscosity Grade (Gear Oil) | 70W80 |
| Vis @ 100°C, CSt | 7.5 |
| Vis @ 40°C, CSt | 35.4 |
| Viscosity Index | 188 |
| Pour Point, °C | -60 |
| Pour Point, °F | -76 |
| Brookfield Viscosity @ -40°C, Poise | 52 |
AVAILABLE SIZES
| Quart | 30504 |
| Gallon | 30505 |
| 5 Gallon* | 30506 |
| 16 Gallon* | 30507 |
| 55 Gallon* | 30508 |

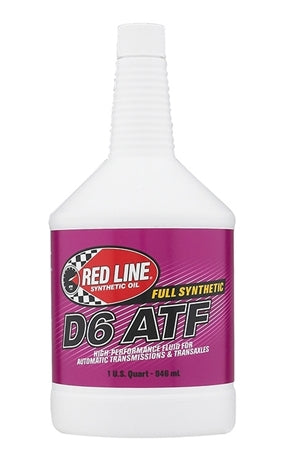

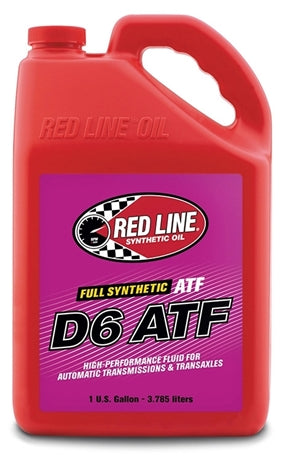

D6 ATF - QUART
- Our lowest viscosity, most shear-stable ATF for consistent operation, designed to satisfy Dexron-VI®, Mercon®SP, Mercon®LV, Honda DW-1, Toyota WS, Mercedes Benz NAG-2, ZF-LG 6, 6+ and 8 fluids, for use in automatic and manual transmissions
- Also satisfies API 70W/75W and GL-4 gear oil requirements
With eight different combinations of viscosity, slipperiness, and OE-recommended additives packages, Red Line offers the widest selection of ATF available
- Red Line offers the widest selection of fully-synthetic ATF on the market today
- Each offer improved thermal stability, maintain viscosity levels, and feature lower volatility while providing the required frictional characteristics of each fluid's OEM-style replacement
- Reduced oxidation and lower volatility at high temperature
- Allows high-temp operation without varnishing valves and clutches
- Extended drain intervals
TYPICAL PROPERTIES
| Vis @ 40°C, CSt | 31 |
| Vis @ 100°C, CSt | 6.3 |
| Viscosity Index | 163 |
| Pour Point, °C | -60 |
| Pour Point, °F | -76 |
| Brookfield Viscosity @ -40°C, Poise | 45 |
AVAILABLE SIZES
| Quart | 30704 |
| Gallon | 30705 |
| 5 Gallon* | 30706 |
| 16 Gallon* | 30707 |
| 55 Gallon* | 30708 |

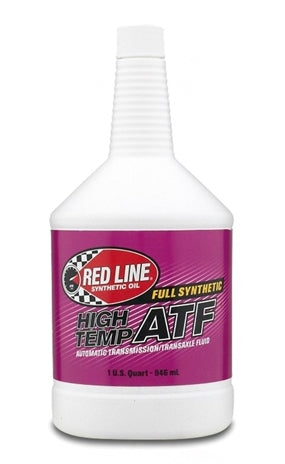

HIGH-TEMP ATF - QUART
- For heavily-loaded vehicles, allowing operation at up to 70°F higher while maintaining thicker viscosity than traditional ATFs
- Use where Dexron III®, Dexron II®, Mercon® or GL-4 gear oil are recommended
- Dramatically less evaporation, less varnish of valves and clutches in extreme conditions
With eight different combinations of viscosity, slipperiness, and OE-recommended additives packages, Red Line offers the widest selection of ATF available
- Red Line offers the widest selection of fully-synthetic ATF on the market today
- Each offer improved thermal stability, maintain viscosity levels, and feature lower volatility while providing the required frictional characteristics of each fluid's OEM-style replacement
- Reduced oxidation and lower volatility at high temperature
- Allows high-temp operation without varnishing valves and clutches
- Extended drain intervals
TYPICAL PROPERTIES
| Vis @ 100°C, CSt | 9.5 |
| Vis @ 40°C, CSt | 48.3 |
| Viscosity Index | 220 |
| Pour Point, °C | -51 |
| Pour Point, °F | -60 |
| Brookfield Vis @ -40°C, P | 175 |
AVAILABLE SIZES
| Quart | 30204 |
| Gallon | 30205 |
| 5 Gallon* | 30206 |
| 16 Gallon* | 30207 |
| 55 Gallon* | 30208 |

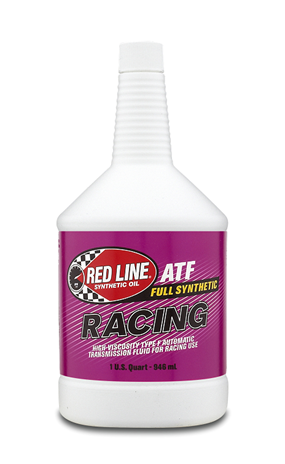

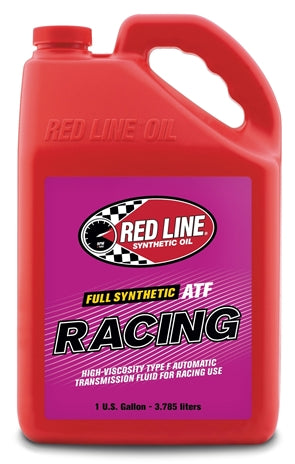

RACING ATF - QUART
- Similar to a Type F fluid, featuring even higher viscosity and no friction modifiers
- Produces faster shifts, quicker lock-up, better converter efficiency at high temps
- Enhanced extreme-pressure additives provide 5-times better film strength than petroleum ATFs
- Reduced clutch and gear wear compared to petroleum ATFs
With eight different combinations of viscosity, slipperiness, and OE-recommended additives packages, Red Line offers the widest selection of ATF available
- Red Line offers the widest selection of fully-synthetic ATF on the market today
- Each offer improved thermal stability, maintain viscosity levels, and feature lower volatility while providing the required frictional characteristics of each fluid's OEM-style replacement
- Reduced oxidation and lower volatility at high temperature
- Allows high-temp operation without varnishing valves and clutches
- Extended drain intervals
TYPICAL PROPERTIES
| Vis @ 100°C, CSt | 10 |
| Vis @ 40°C, CSt | 53.7 |
| Viscosity Index | 177 |
| Pour Point, °C | -50 |
| Pour Point, °F | -58 |
| Brookfield Viscosity @ -40°C, Poise | 150 |
AVAILABLE SIZES
| Quart | 30304 |
| Gallon | 30305 |
| 5 Gallon* | 30306 |
| 16 Gallon* | 30307 |
| 55 Gallon* | 30308 |

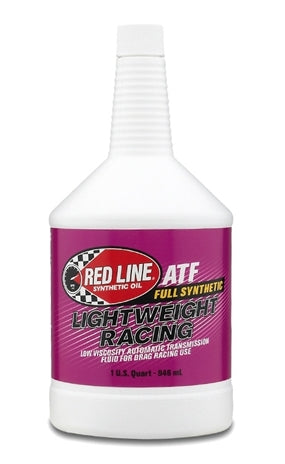

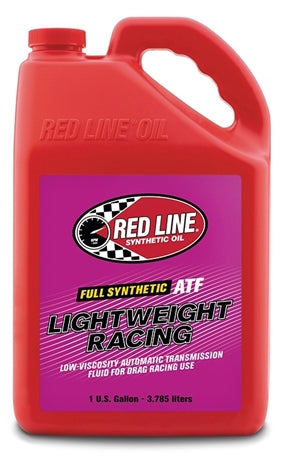

LIGHTWEIGHT RACING ATF - QUART
- Superior consistency and wear protection for Bracket and Heads-Up drag racing transmissions like Powerglide and Turbo 400
- Popular with turbo and blown doorslammers like NMRA, NMCA, ORSCA and PSCA -- replaces hydraulic oils and other non-ATFs used to escape heat issues
- Low viscosity offers less frictional drag for quicker ETs and more MPH
- Dissipates heat for longer trans life, better clutch, gear, and seal life
- Compatible with petroleum ATFs and other brands synthetic ATF
- Extreme-pressure protection provides much better film-strength
With eight different combinations of viscosity, slipperiness, and OE-recommended additives packages, Red Line offers the widest selection of ATF available
- Red Line offers the widest selection of fully-synthetic ATF on the market today
- Each offer improved thermal stability, maintain viscosity levels, and feature lower volatility while providing the required frictional characteristics of each fluid's OEM-style replacement
- Reduced oxidation and lower volatility at high temperature
- Allows high-temp operation without varnishing valves and clutches
- Extended drain intervals
TYPICAL PROPERTIES
| Vis @ 100°C, CSt | 4.74 |
| Vis @ 40°C, CSt | 21.46 |
| Viscosity Index | 140 |
| Pour Point, °C | -50 |
| Pour Point, °F | -58 |
| Brookfield Vis @ -40°C, P | 75 |
AVAILABLE SIZES
| Quart | 30314 |
| Gallon | 30316 |
| 5 Gallon* | 30318 |

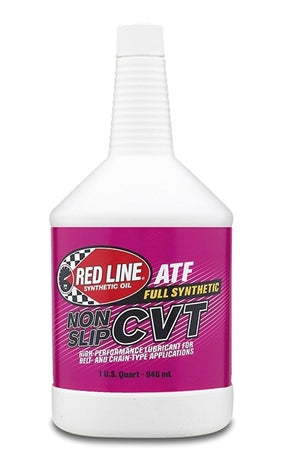

NON-SLIP CVT - QUART
- Designed specifically for use in metal belt-type Continuously Variable Transmissions including Mini, Nissan and Subaru
- Includes anti-wear additives for improved metal-to-metal protection in torque-converter clutches and offers consistent performance over broad temperature range
- Synthetic base stocks offer improved shear characteristics, improved thermal stability and extended drain intervals (up to 30,000 miles, follow manufacturers specifications)
With eight different combinations of viscosity, slipperiness, and OE-recommended additives packages, Red Line offers the widest selection of ATF available
- Red Line offers the widest selection of fully-synthetic ATF on the market today
- Each offer improved thermal stability, maintain viscosity levels, and feature lower volatility while providing the required frictional characteristics of each fluid's OEM-style replacement
- Reduced oxidation and lower volatility at high temperature
- Allows high-temp operation without varnishing valves and clutches
- Extended drain intervals
TYPICAL PROPERTIES
| Vis @ 100°C, CSt | 7.7 |
| Vis @ 40°C, CSt | 37.5 |
| Viscosity Index | 181 |
| Pour Point, °C | -51 |
| Pour Point, °F | -60 |
| Brookfield Viscosity @ -40°C, Poise | 120 |
AVAILABLE SIZES
| Quart | 30804 |
| 5 Gallon* | 30806 |
