Radium Engineering
Radium Engineering Fuel Level Sensor
Regular price
$100.50 USD
Regular price
$119.99 USD
Sale price
$100.50 USD
Unit price
per
Couldn't load pickup availability

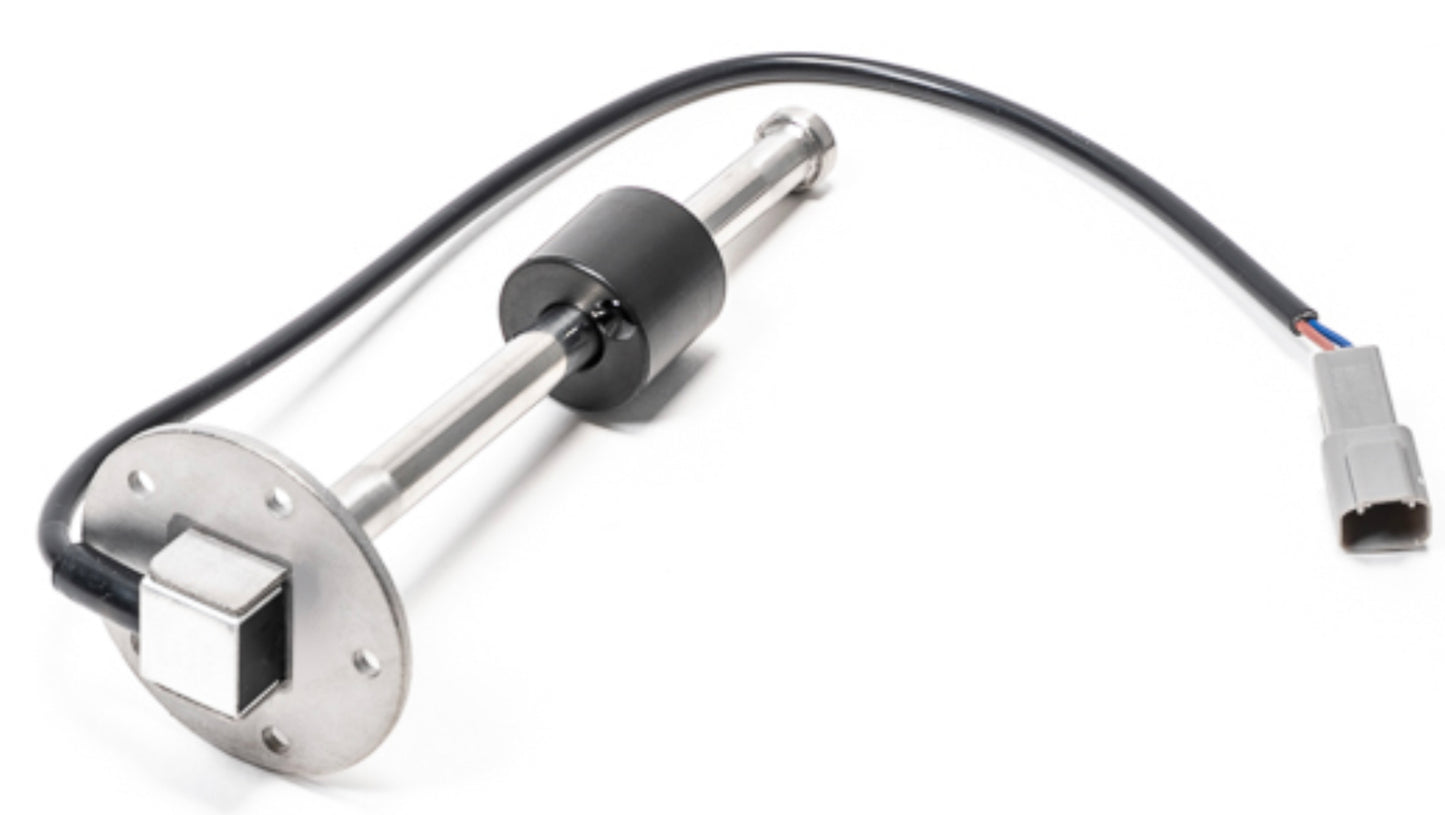

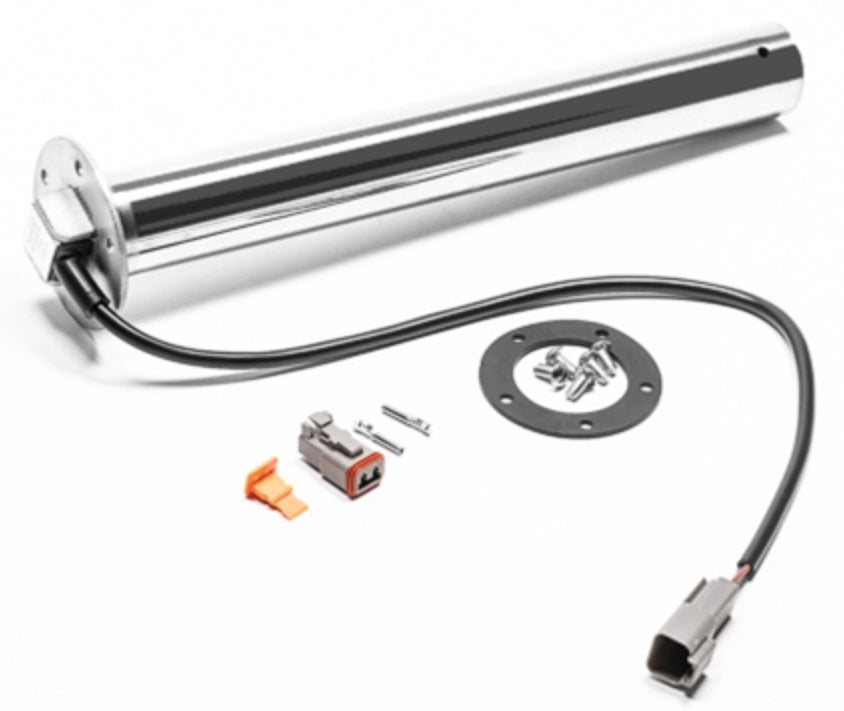

Radium Engineering Fuel Level Sensor Sending Unit

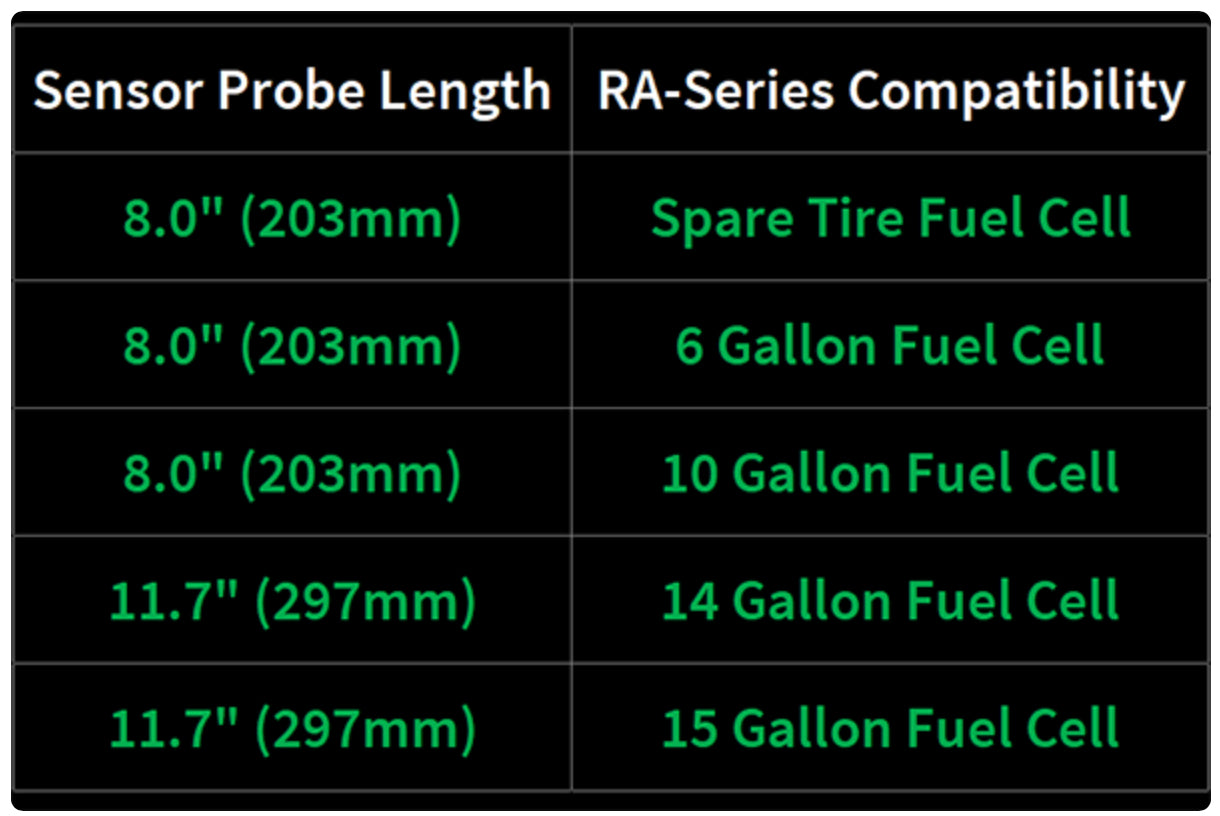

Select Size & Shroud Style
NOTES:

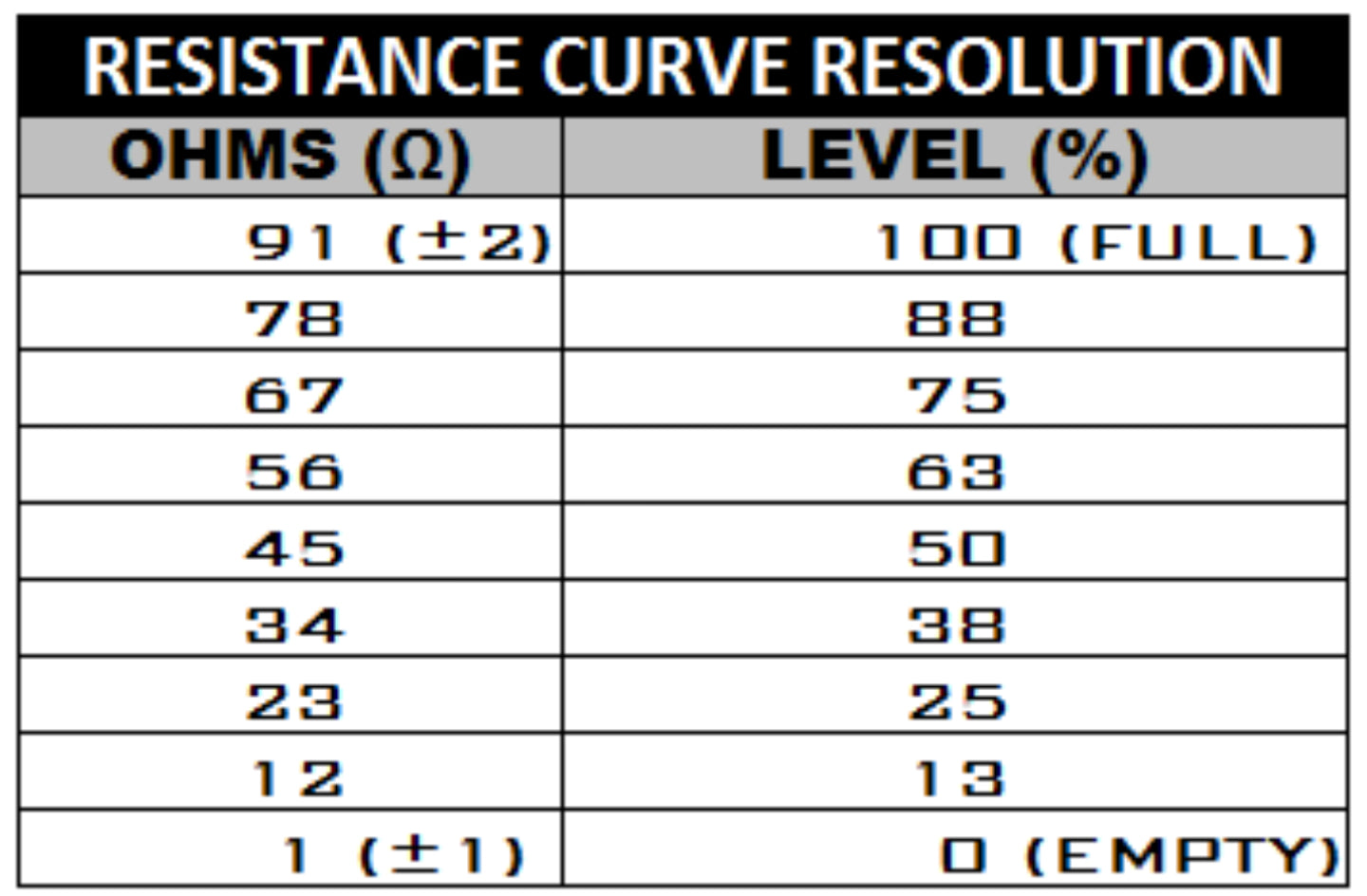

-All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges).
-Radium does not sell fuel level gauges.
-To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.

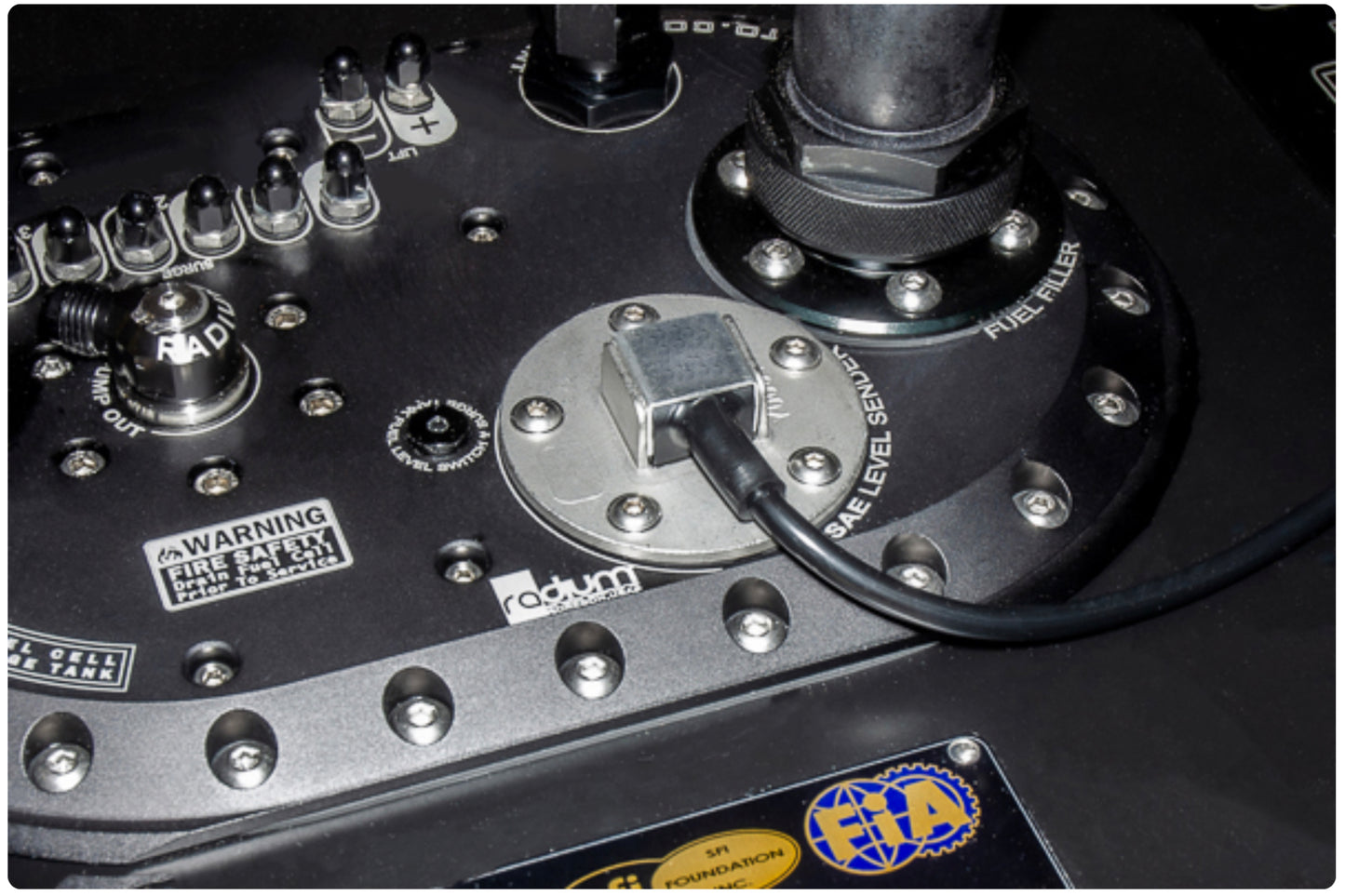

-If purchased with a Radium Fuel Cell Surge Tank (FCST), the sender will come pre-installed.
-If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter.
