K1 Technologies VHR H-Beam Rod with ARP 2000 Hardware (Set or Single)
Couldn't load pickup availability

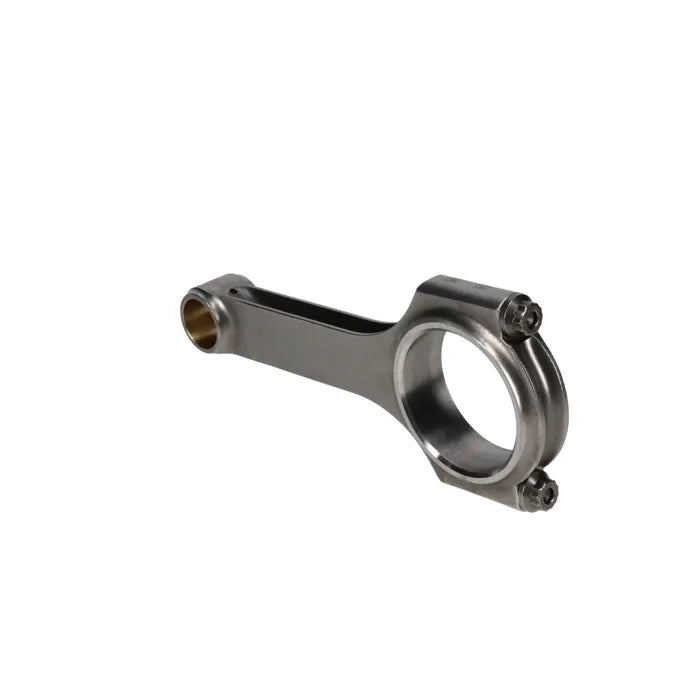

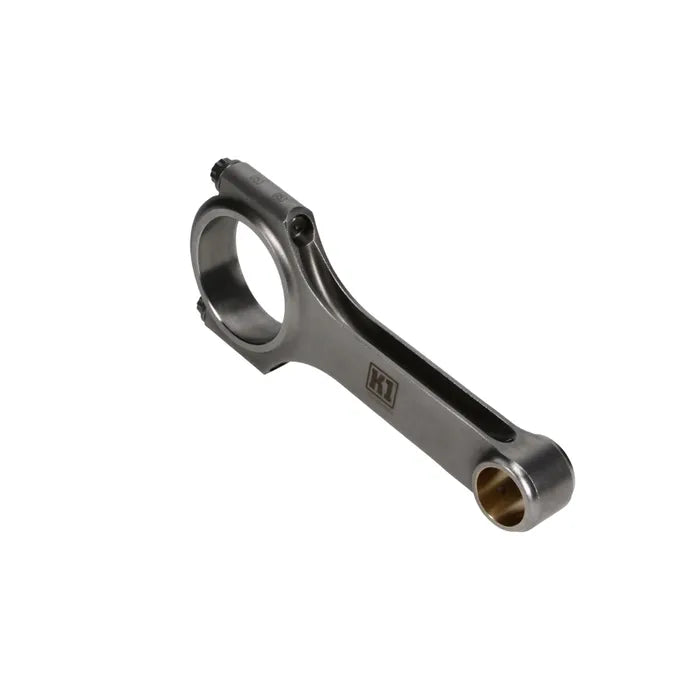

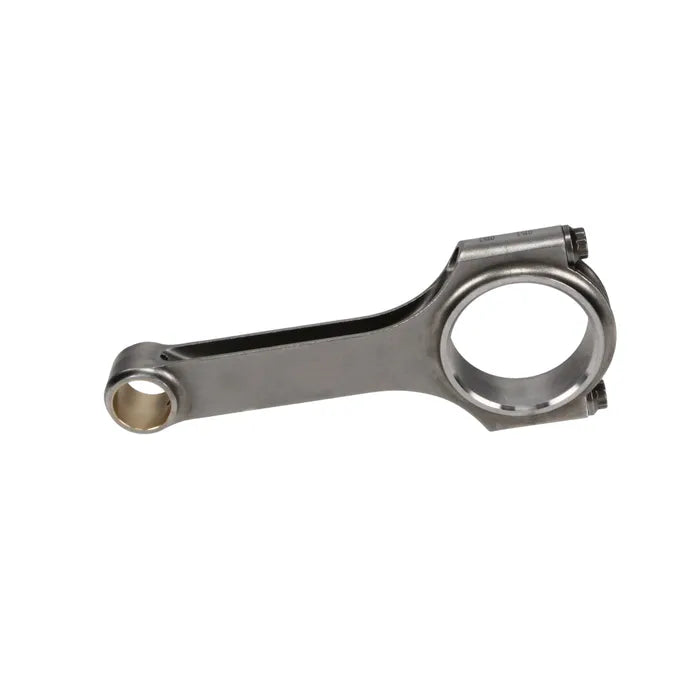

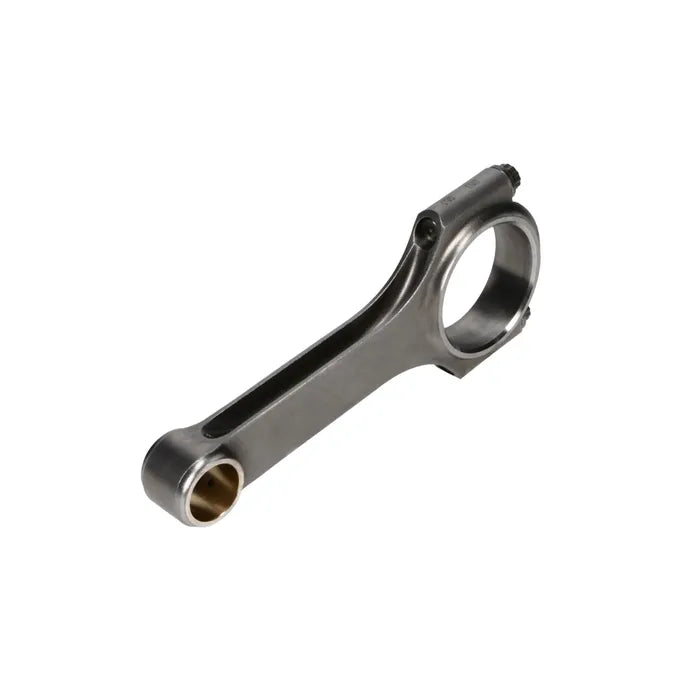

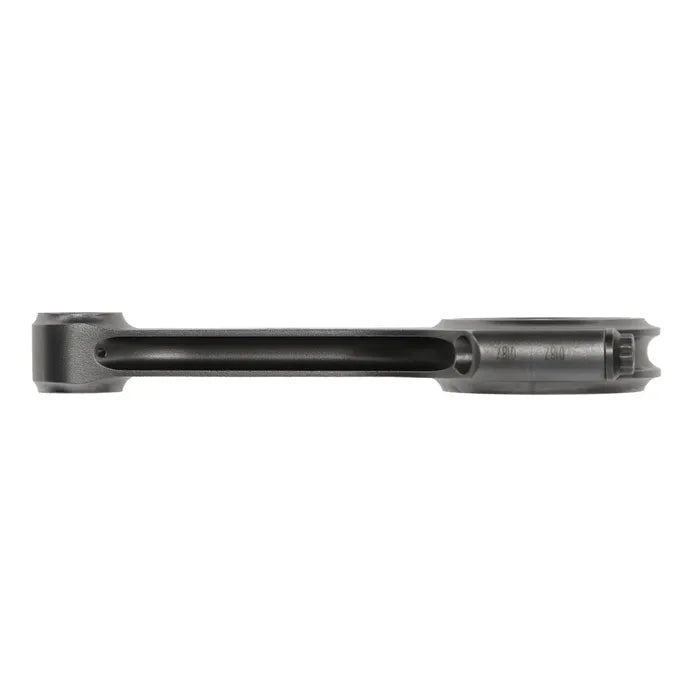

K1 Technology VHR H-Beam Design Rods with ARP 2000 Hardware

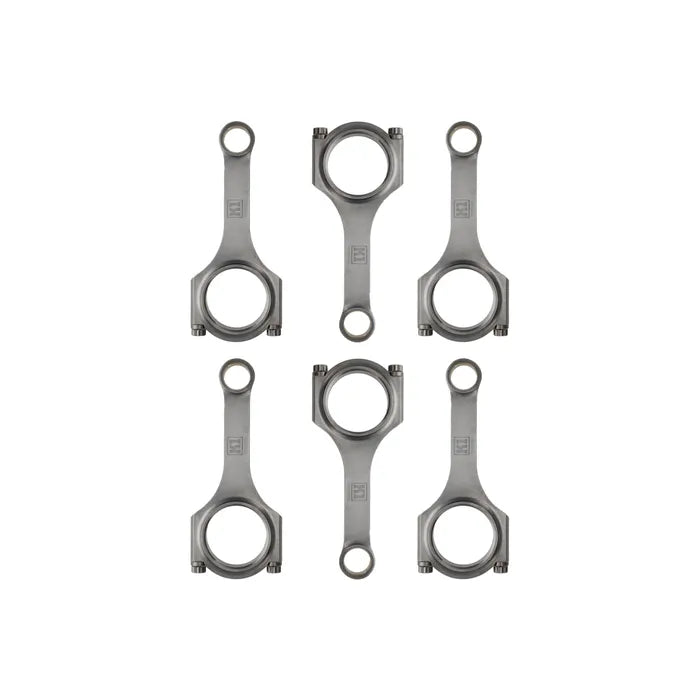

Available as a set of 6 or single rod
Message us for availability
| Bolt Diameter | 3/8 |
|---|---|
| Bolt Part Number | BT61501-S |
| Center To Center Length | 144.25 |
| Connecting Rod Finish | Shot-peened |
| Lightened | No |
| Main Bearing Bore Diameter | 55.00 |
| Main Bearing Width | 20.78 |
| Material | Forged 4340 Steel |
| Mounting Hardware Included | Yes |
| Pin End Bore | 22.00 |
| Product Types | Connecting Rod Kits |
| Rod Quantity | Set of 6 or single |
| Rod Type | H-Beam |
| Weight Matched Set | Yes |
| Wrist Pin Journal Bushing Width | 22.86 |
| Wrist Pin Style | Floating |
K1 Technologies connecting rods are manufactured with optimized strength and weight characteristics in mind to deliver reliable performance. Forged from 4340 steel, K1 rods featured a shot-peened surface finish which smooths surface blends and reduces potential stress profiles. K1 connecting rods are held to strict quality standards and undergo magnetic particle testing to ensure material properties are free of flaws. Each rod is also subject to bore tolerance compliance, holding them to +/- .0001” after finishing. Additionally, K1 rods are balanced and tested to be within +/- 1 gram per end. A dual-ribbing design on the rod caps of K1 connecting rods helps maximize strength and allows the rod big end to maintain roundness as engine RPMs increase. Full-floating, precision-honed bronze bushings are fixed into the small ends of the rods for low friction and high wear resistance. Fitted with ARP 2000 rod bolts rated at 200,000 psi tensile strength for most applications, K1 connecting rods deliver an industry-leading combination of strength and value.
Other Wiseco, K1 Technology, and Boostline Products available for any chassis/engine - if you dont see what you’re looking for please message us directly.
We shop our competition - if you find a lower comprable price we will match or beat it - message for details!
