HKS Intercooler Kit Cooling Series (HONDA)

INTERCOOLER KIT COOLING Series (HONDA)

Description

Get the Turbine's Real Power and Increase Engine Torque!

All HKS Intercoolers improve both the efficiency and power of any turbocharged application by rapidly reducing inherent heat levels of the compressed intake air charge before entering the engine. By utilizing a special tube and fin design, the intercooler acts as a large heat exchanger that dissipates the heat generated by the compression of the intake charge without creating reductions in boost pressure or response.

Cooling Efficiency Improvement = Torque Increase

The cooling efficiency of an intercooler is affected by many factors including the frontal surface area of the core, cooling fin design and air flow through and over the core. HKS has increased the size of the core over stock to increase the air flow over the core.

New type cooling fin now offers improved heat radiation. Core end tanks have been designed to flow the compressed air evenly across the whole intercooler core. All these factors will maximize reduction of intake air temperature which increases air density. Increasing the range of fueling and ignition setting making it possible to deliver more power and torque.

Lower Pressure Loss = Better Response [GT TYPE].

Along with cooling efficiency, pressure loss reduction is one of the most important aspects of intercooler performance. If the pressure drop is significantly high, throttle response and the torque is reduced.

However, reducing the pressure loss and improving the cooling efficiency are contradictory, and the lower the pressure loss, the worse the cooling efficiency becomes. A large cause of pressure drop is the cross sectional area of the tubes in which the air flows and inner fin layout and shape. HKS has emphasized cooling efficiency yet achieved a low resistance design with thin fins.

Tube design has been also considered in many possibilities and increasing the cross sectional area. With these measures in place, high levels of cooling efficiency have been achieved without sacrificing pressure drop.

 S TYPE INTERCOOLER

S TYPE is designed for street use; ideal for stock vehicles, lightly tuned vehicles, and for vehicles with stock replacement type turbines. This product has an excellent balance of response in street driving and power in the mid to high RPM range.

* S Type AL is aluminum polished piping type.

(1) Inner Fin

1. Short type
・Short type that the pitch is optimized for fin shape, for small and light to improve the cooling efficiency.

2. Triangular straight type
・Triangular straight type for less pressure loss of air flow.

(2) Outer Fin (triangular louver type)

・Cooling efficiency improved with louver because of the shorter length and angle of the fin.
・Wide surface of louver make it more efficient in cooling.

R TYPE INTERCOOLER

R TYPE is designed for circuit use; ideal to use with a stock replacement type turbine to wastegate type large size turbine. This intercooler derives better turbine performance regardless the engine rpm during driving on a straight track and acceleration after cornering.
The weight is approximately 25% lighter than a conventional product. (In-house comparison).

* R Type AL is aluminum polished piping type.

(1) Inner Fin (triangular straight type)

Triangular straight type for less pressure loss of air flow.

(2) Outer Fin (triangular louver type)

Like S TYPE, Triangular louver type for outer fin.

R-TYPE INTERCOOLER KIT V SYSTEM

Large capacity Intercooler core, which handles up to 500PS, and radiator are V mounted. Specially designed for FD3S RX-7. Because of the design, cooling air is used efficiently. For street, circuit and drift.

Details

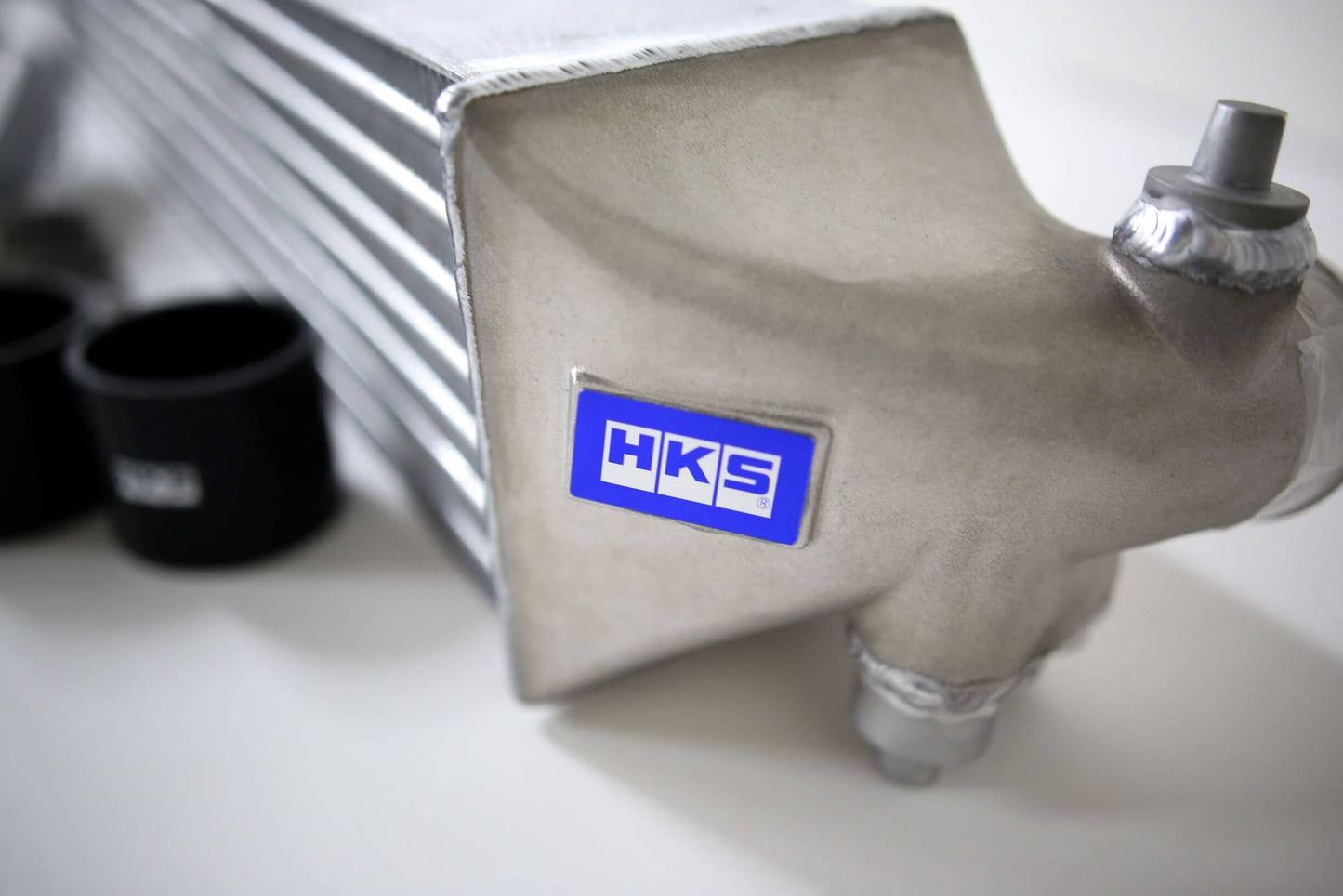

INTERCOOLER KIT for CIVIC FK8

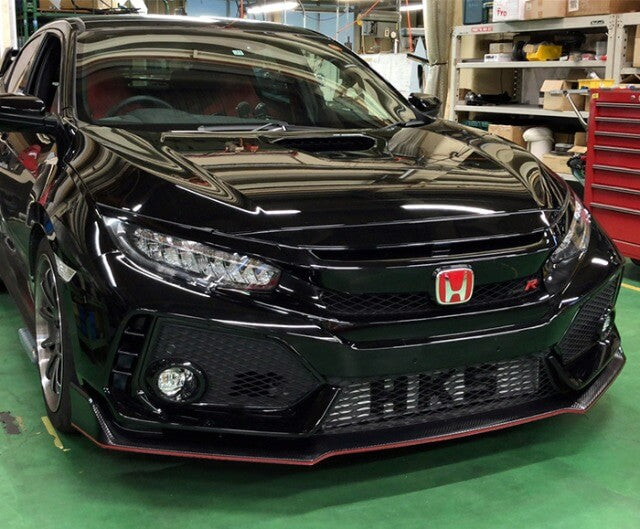

 Best Layout with Best Core Size Designed for the Fastest FF CIVIC TYPE-R(FK8).

CONCEPT

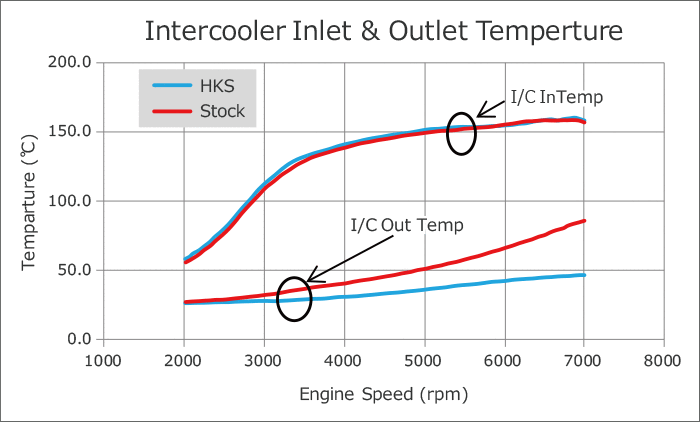

The K20C engine achieves 320ps with 2.0L displacement, and the boost pressure exceeds 150kPa. Since the stock intercooler’s capacity is insufficient, the engine intake air temperature rises to nearly 90℃.
→HKS intercooler is using a larger size intercooler to maintain cooling performance.
The stock intercooler piping layout has a sharp bend so the intake air does not flow smoothly and causes the boost pressure loss.
→HKS intercooler integrates the inlet side tank of the intercooler and pipe to realize a smooth air flow and reduce air intake loss.

 Features

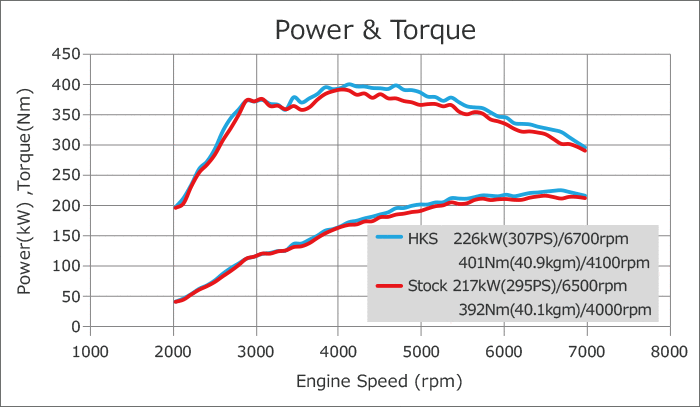

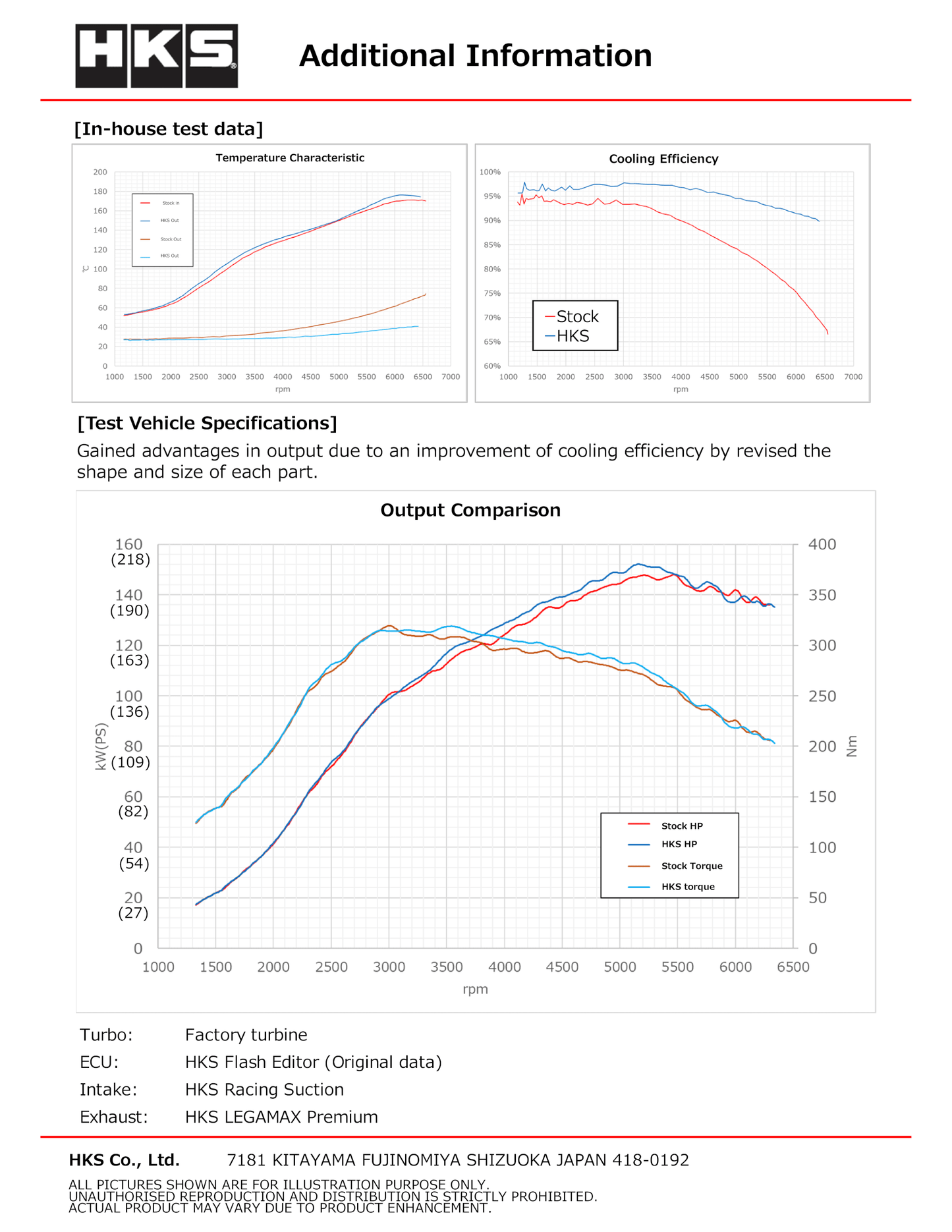

Newly designed 100mm wide core is approximately 200% of the stock in the core capacity. This large core shows overwhelming cooling performance difference.

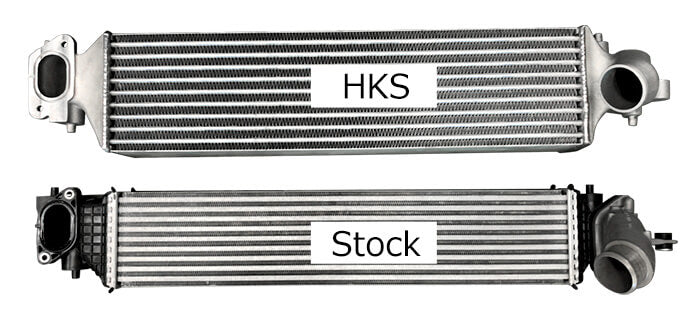

Core Size 　★HKS：695mm x 178mm x 100mm　　★Stock：680mm x 143mm x 64mm
Minor modification of the fan shroud and rubber part that comes in contact with the core is required.

INTERCOOLER CORE for CIVIC FK8

Best Layout with Best Core Size Designed for the Fastest FF CIVIC TYPE-R(FK8).

CONCEPT
The K20C engine achieves 320ps with 2.0L displacement, and the boost pressure exceeds 150kPa. Since the stock intercooler’s capacity is insufficient, the engine intake air temperature rises to nearly 90℃.
→HKS intercooler is using a larger size intercooler to maintain cooling performance.
The stock intercooler piping layout has a sharp bend so the intake air does not flow smoothly and causes the boost pressure loss.
→HKS intercooler integrates the inlet side tank of the intercooler and pipe to realize a smooth air flow and reduce air intake loss.

Features
Newly designed 100mm wide core is approximately 200% of the stock in the core capacity. This large core shows overwhelming cooling performance difference.
Core Size 　★HKS：695mm x 178mm x 100mm　　★Stock：680mm x 143mm x 64mm
Minor modification of the fan shroud and rubber part that comes in contact with the core is required.

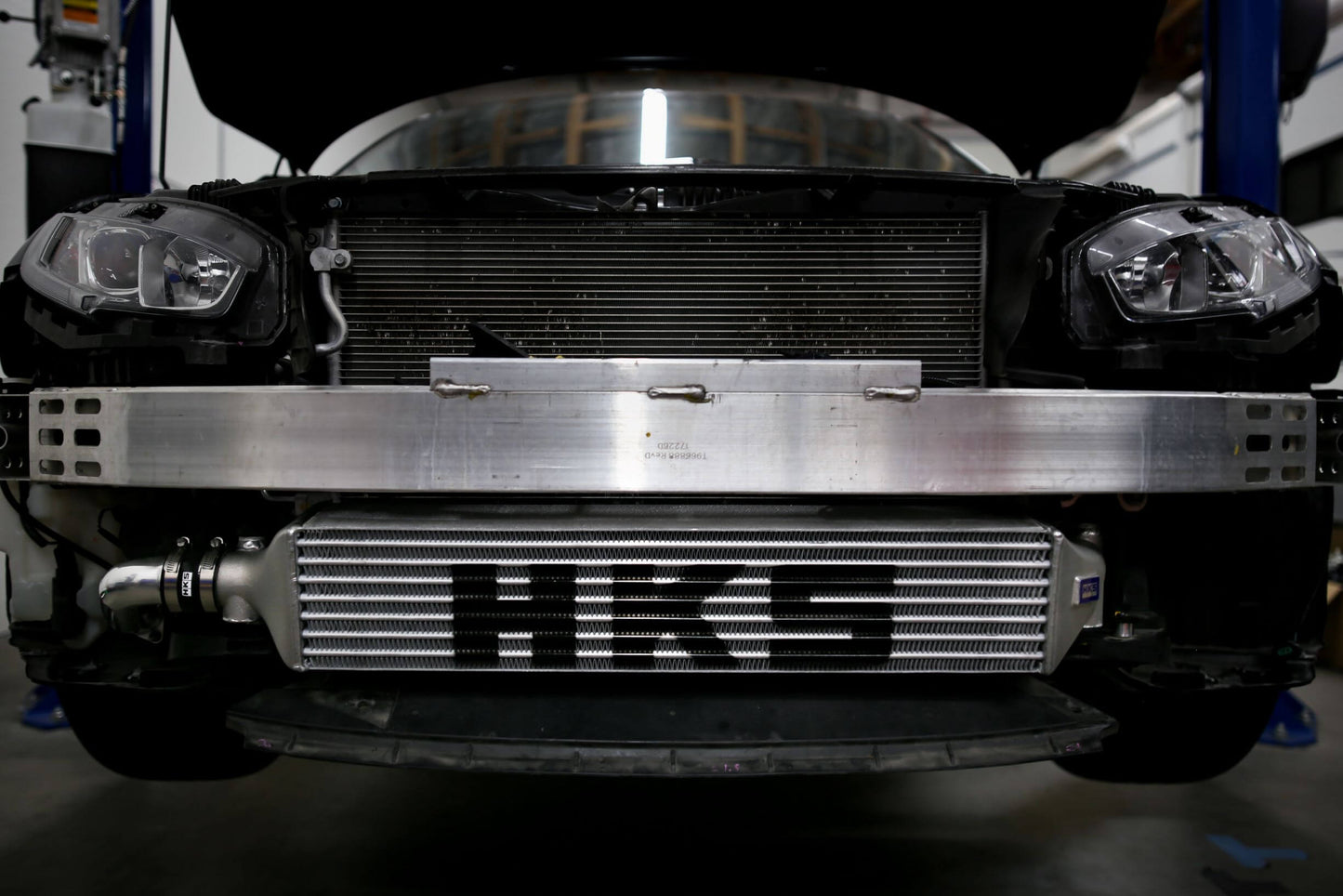

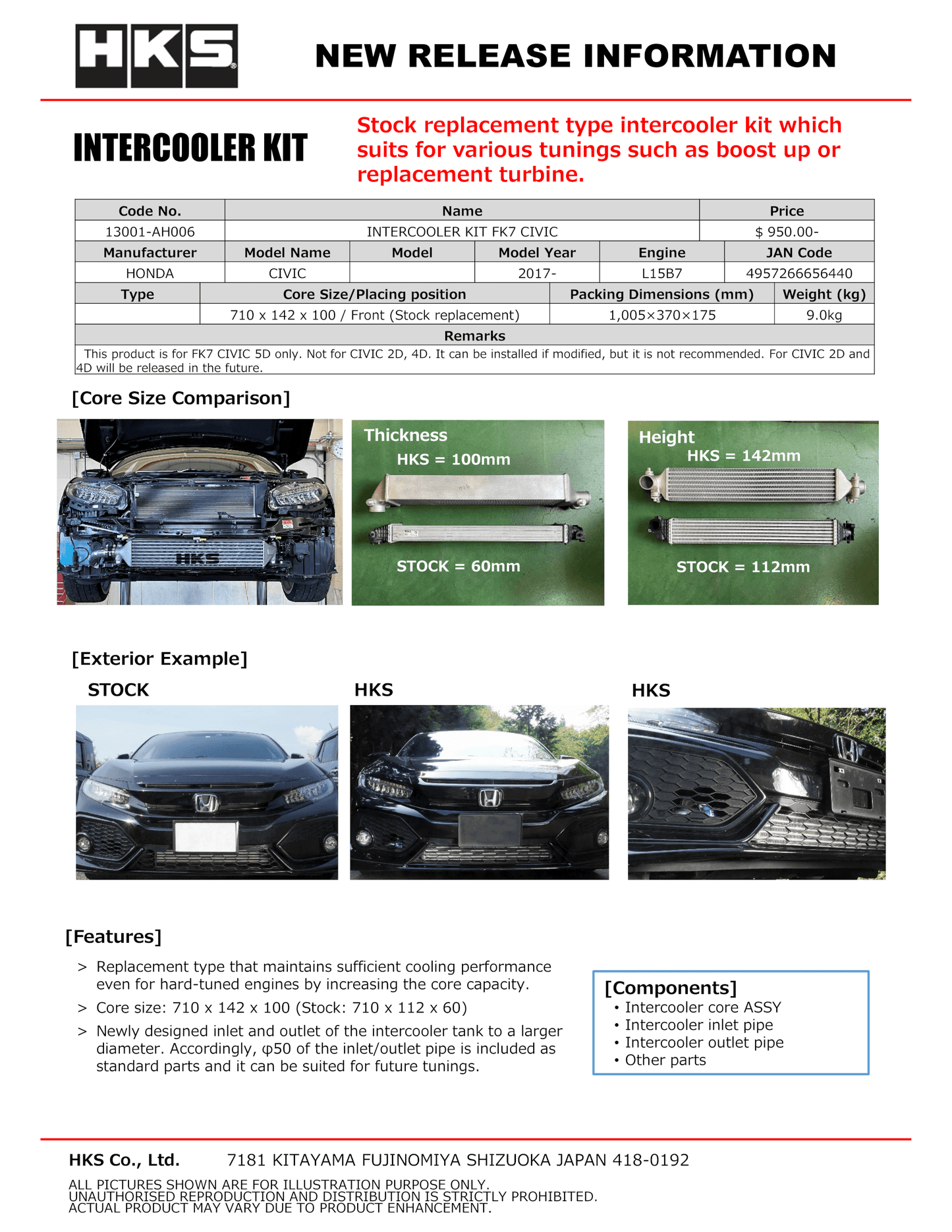

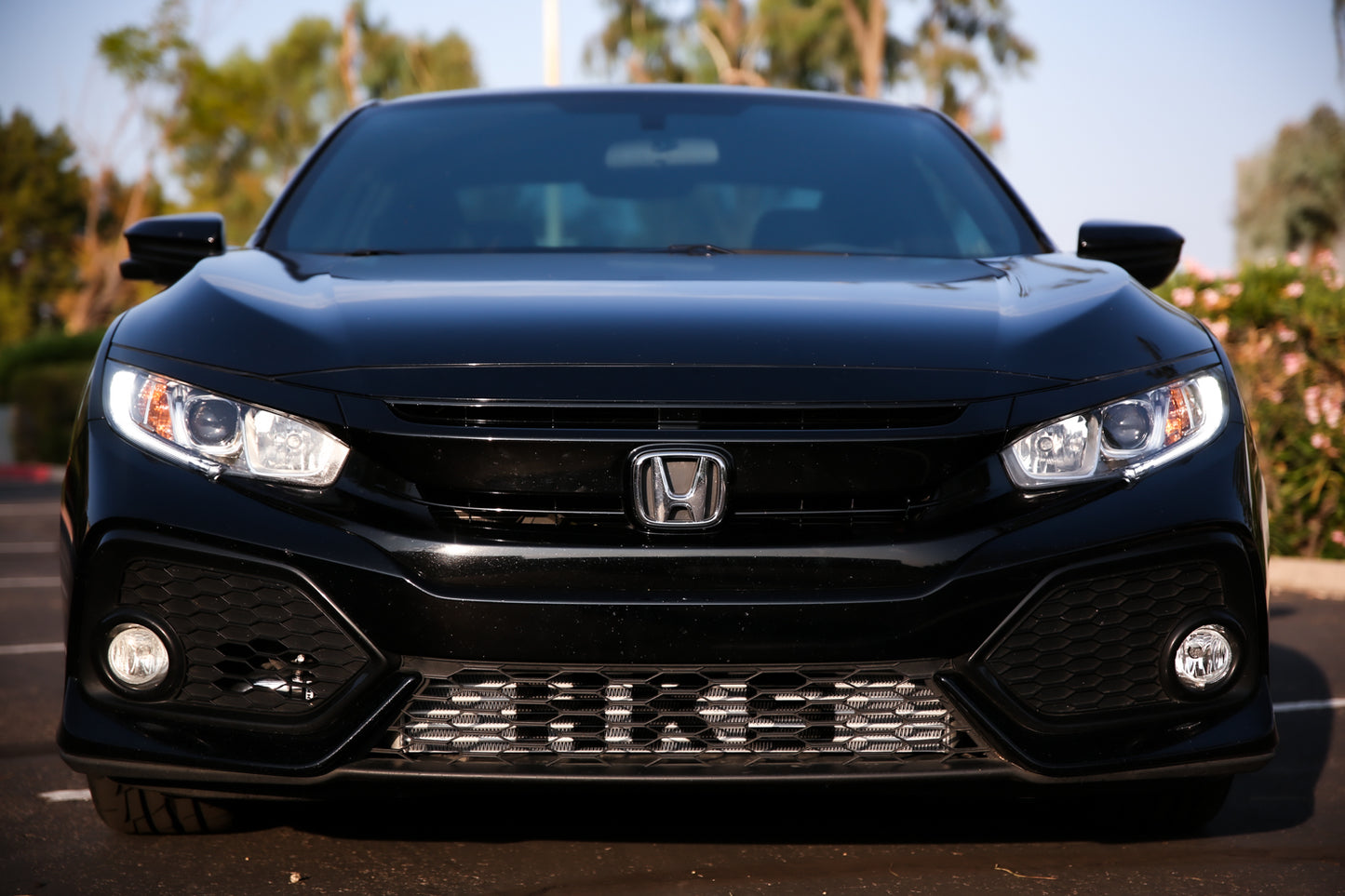

INTERCOOLER KIT FK7 CIVIC
