EVQ Labs VQDE VQHR Twin Pump Fuel Hanger & Surge Tank

EVQ Labs VQDE VQHR Twin Pump Fuel Hanger & Surge Tank

Everything VQ very happy to debut the twin pump hanger & surge tank for the 350z and g35

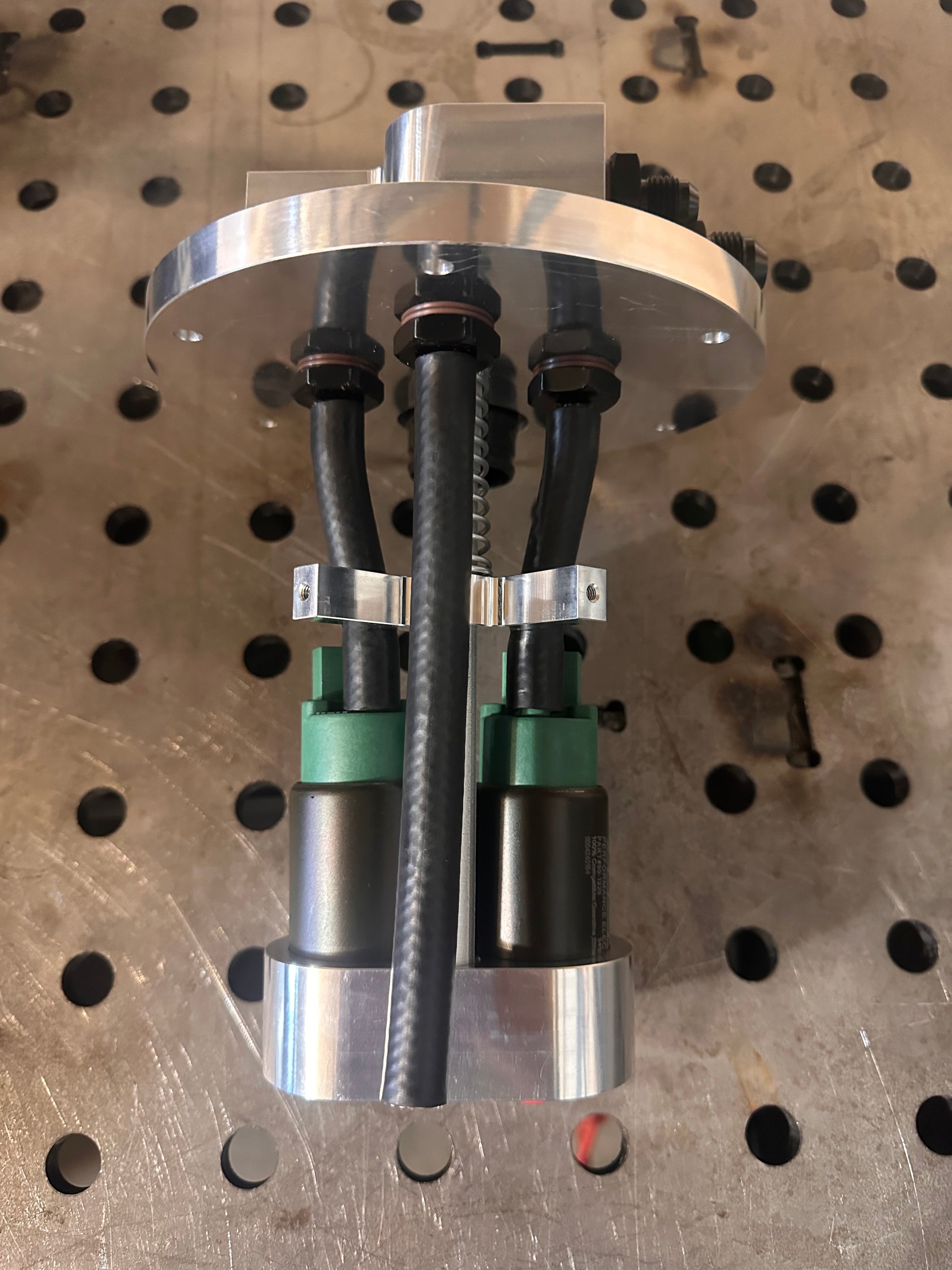

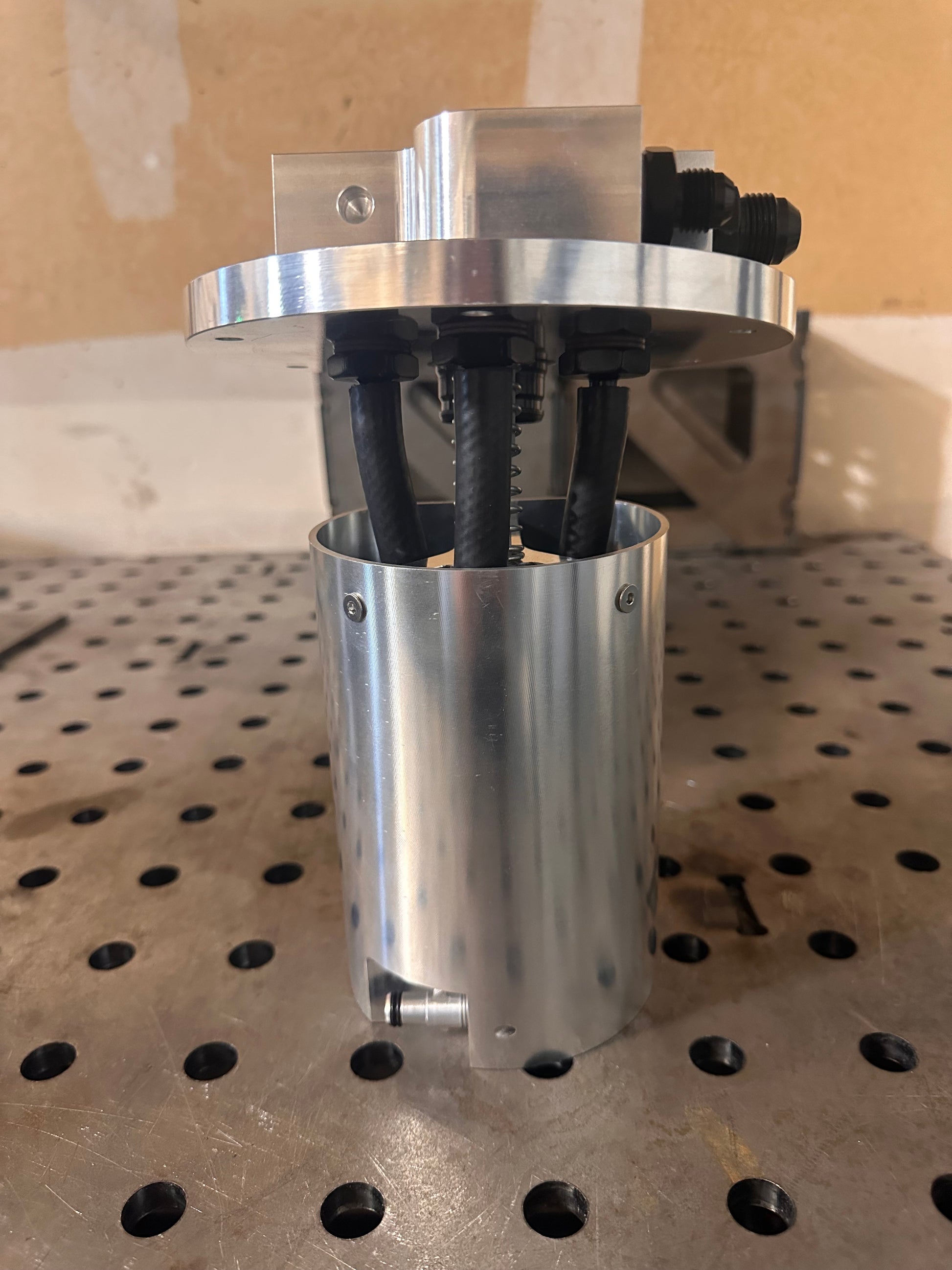

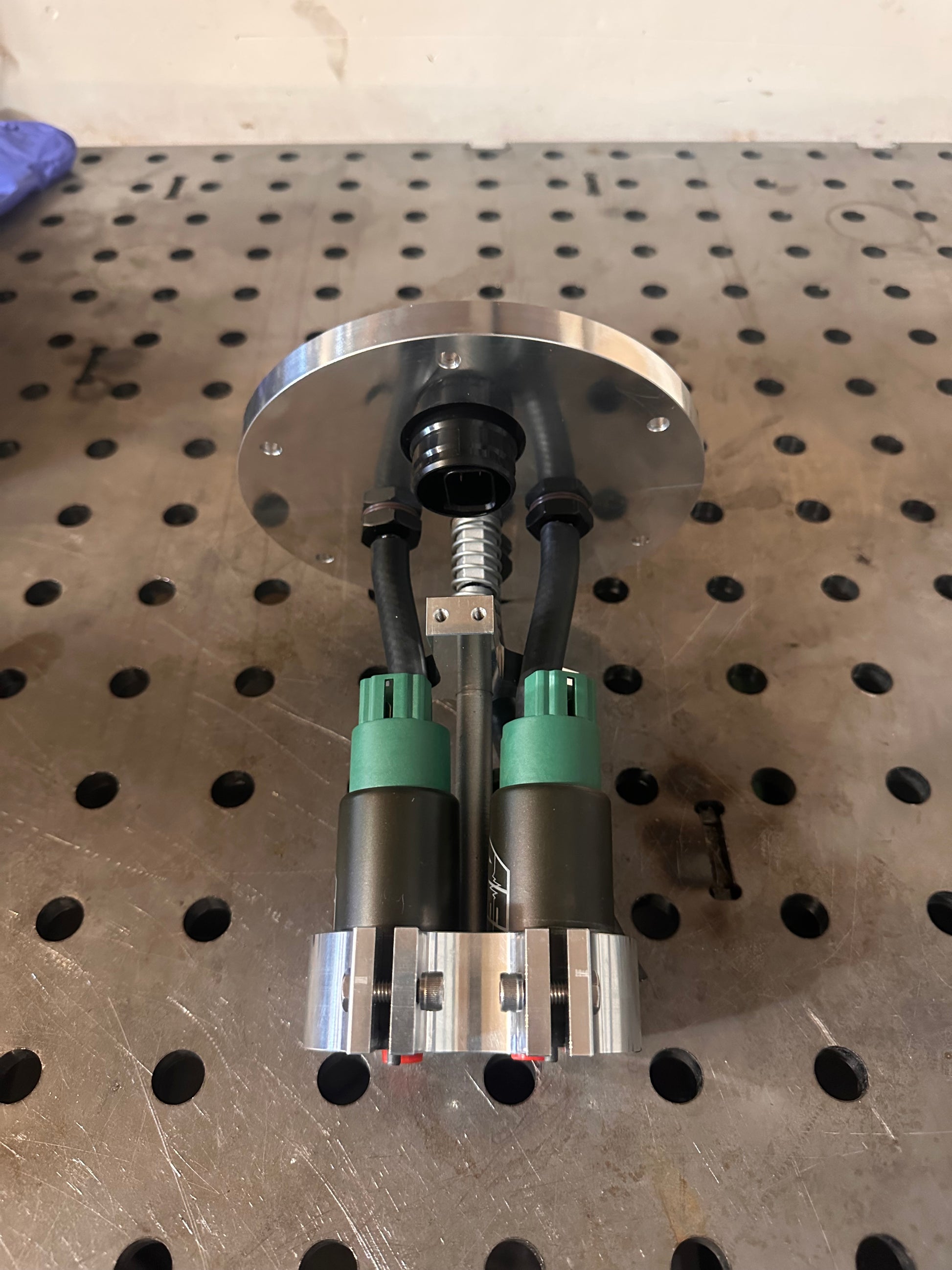

The design hangs twin AEM 340lph pumps good for 800hp to 1000hp on e85.

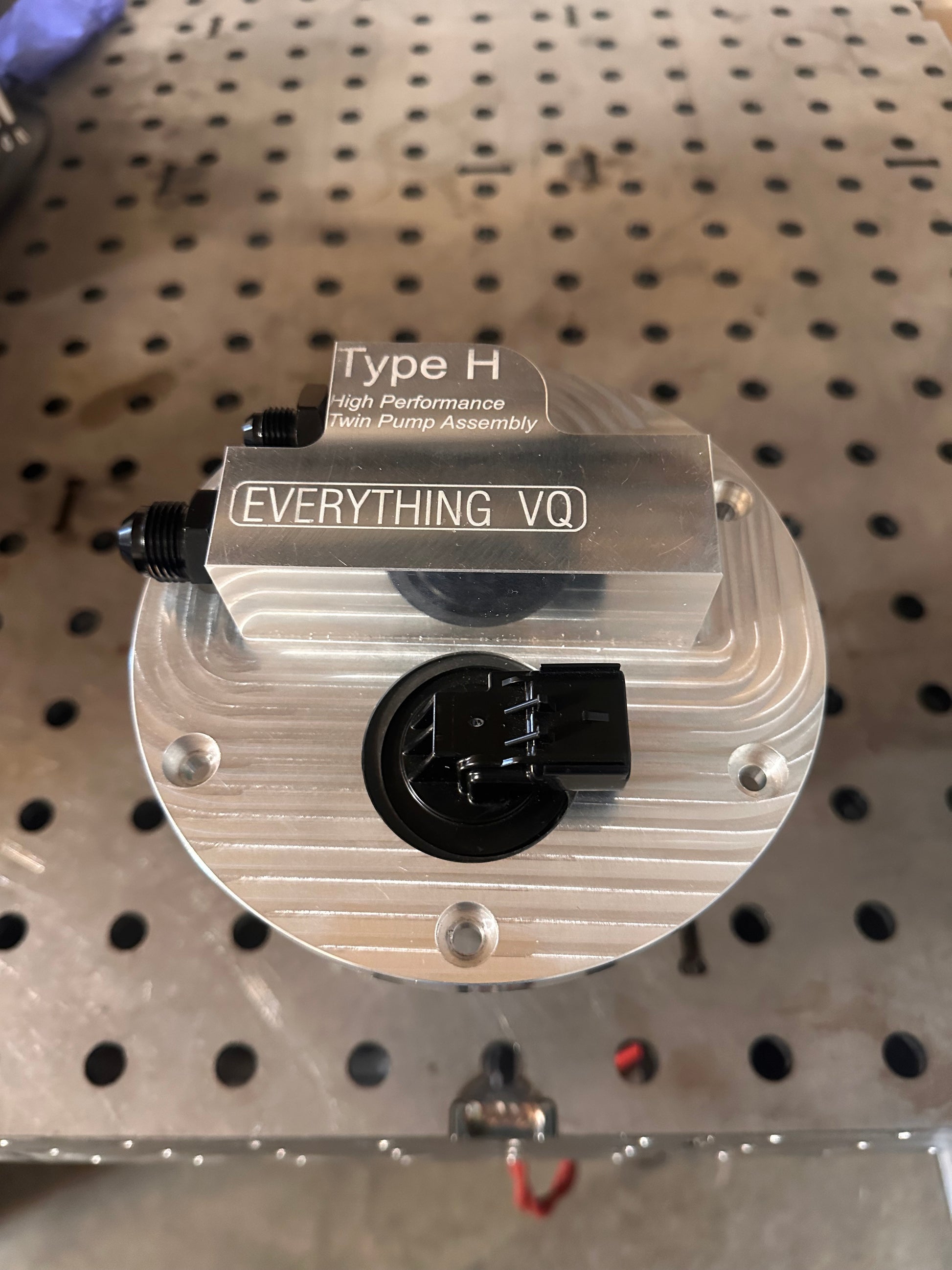

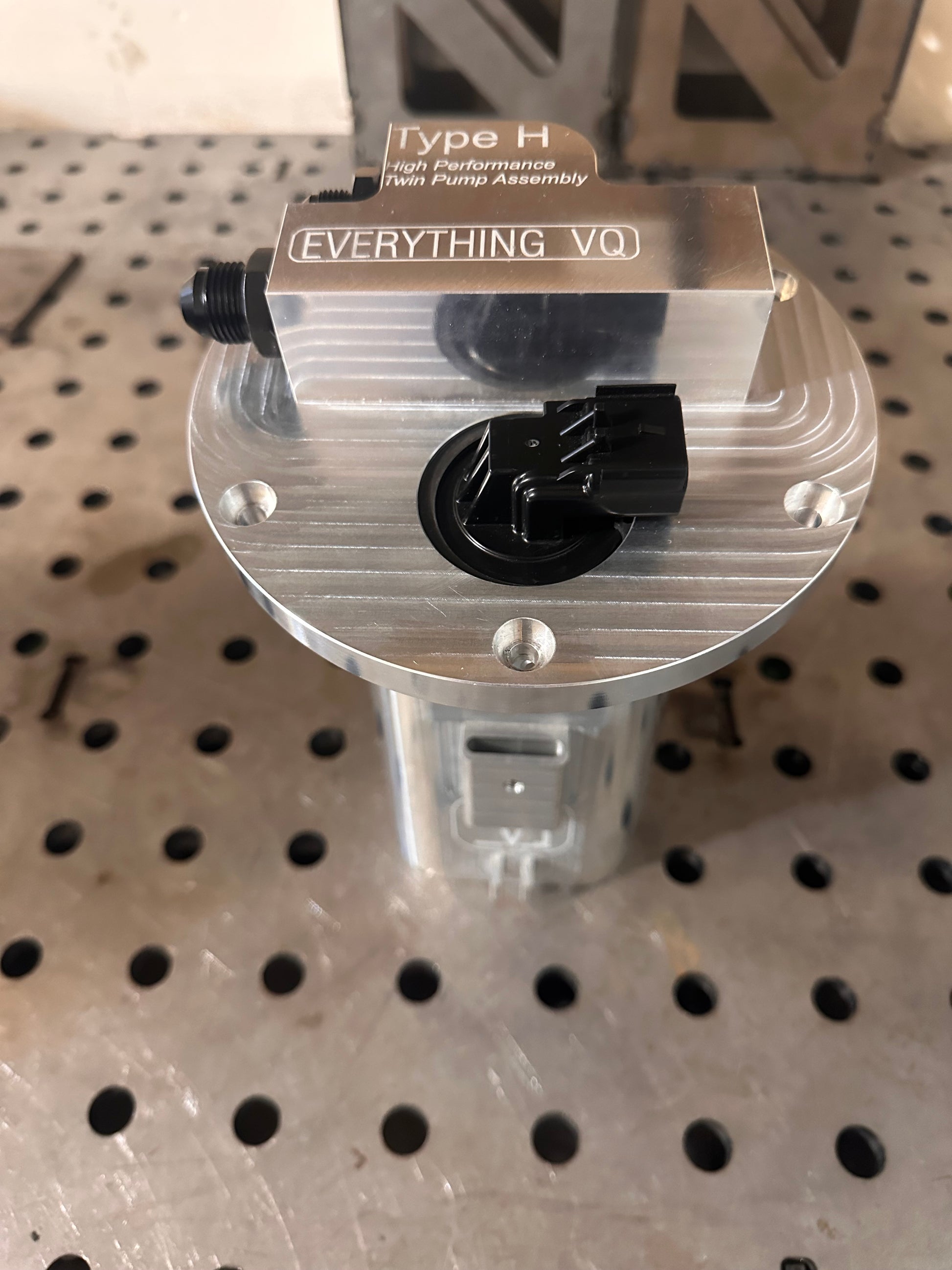

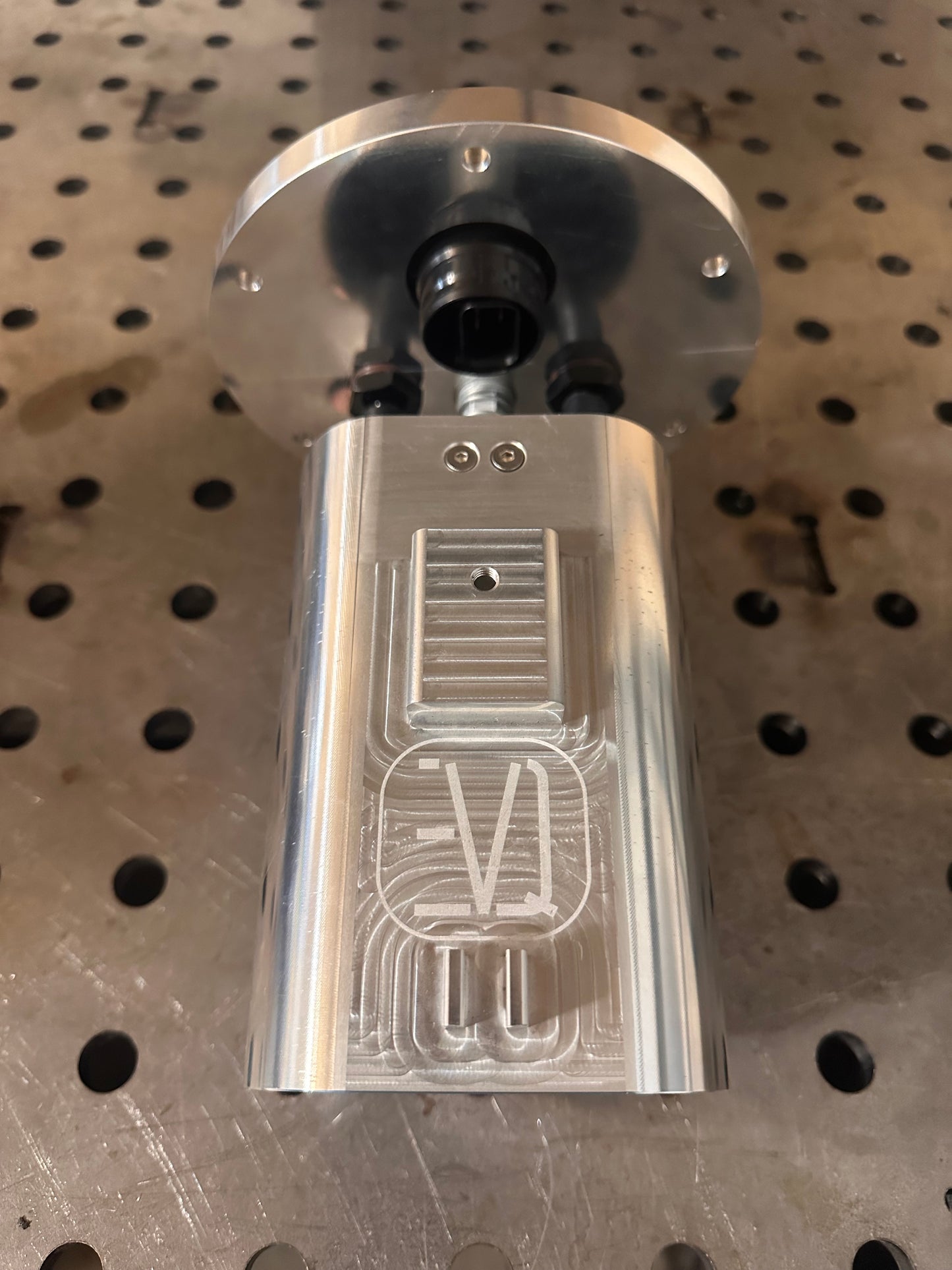

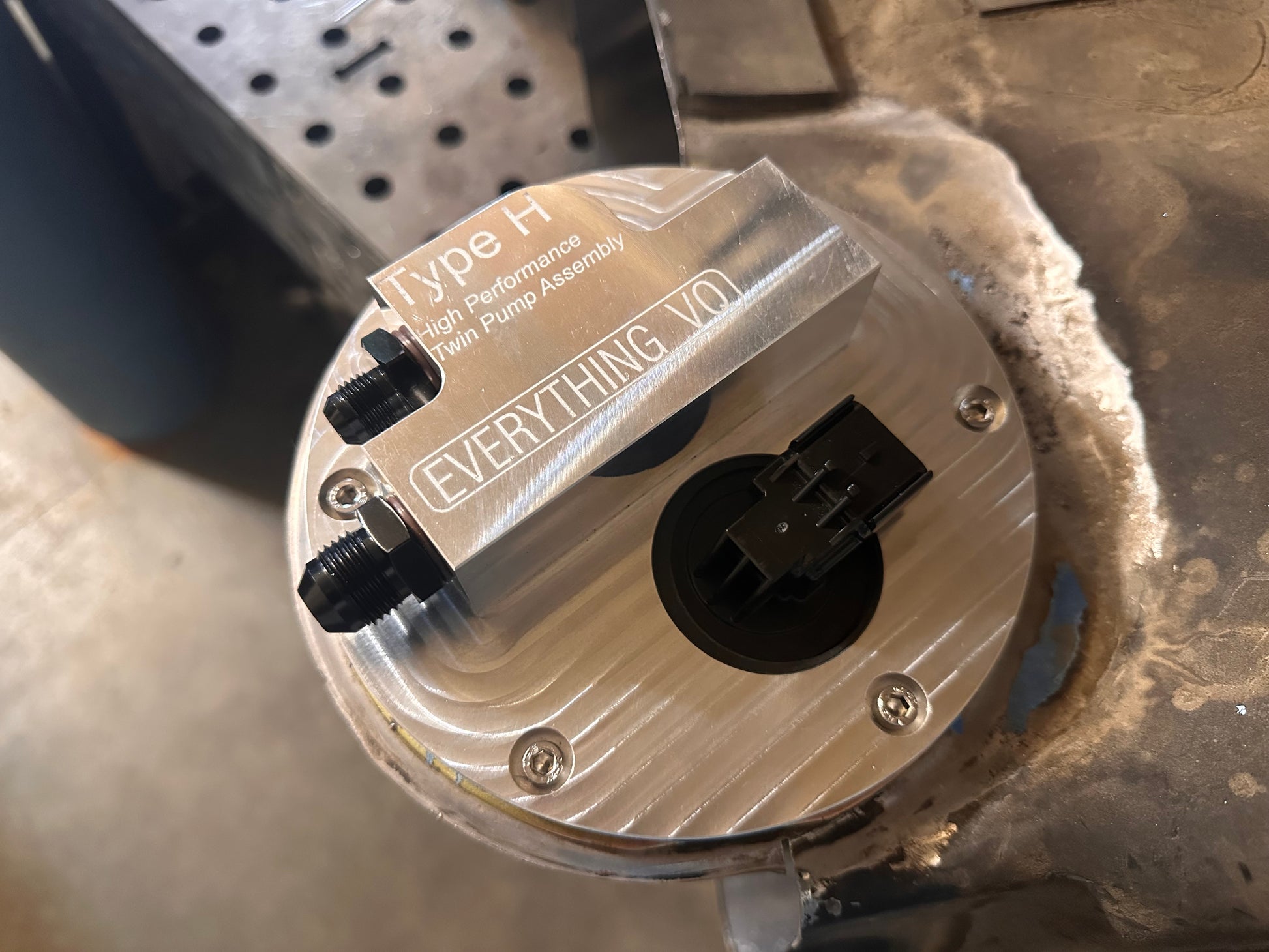

The top hat is very versatile allowing just about any -8 ORB fittings to be used to accommodate a 1/4” feed/return up to a 3/4” feed/return.

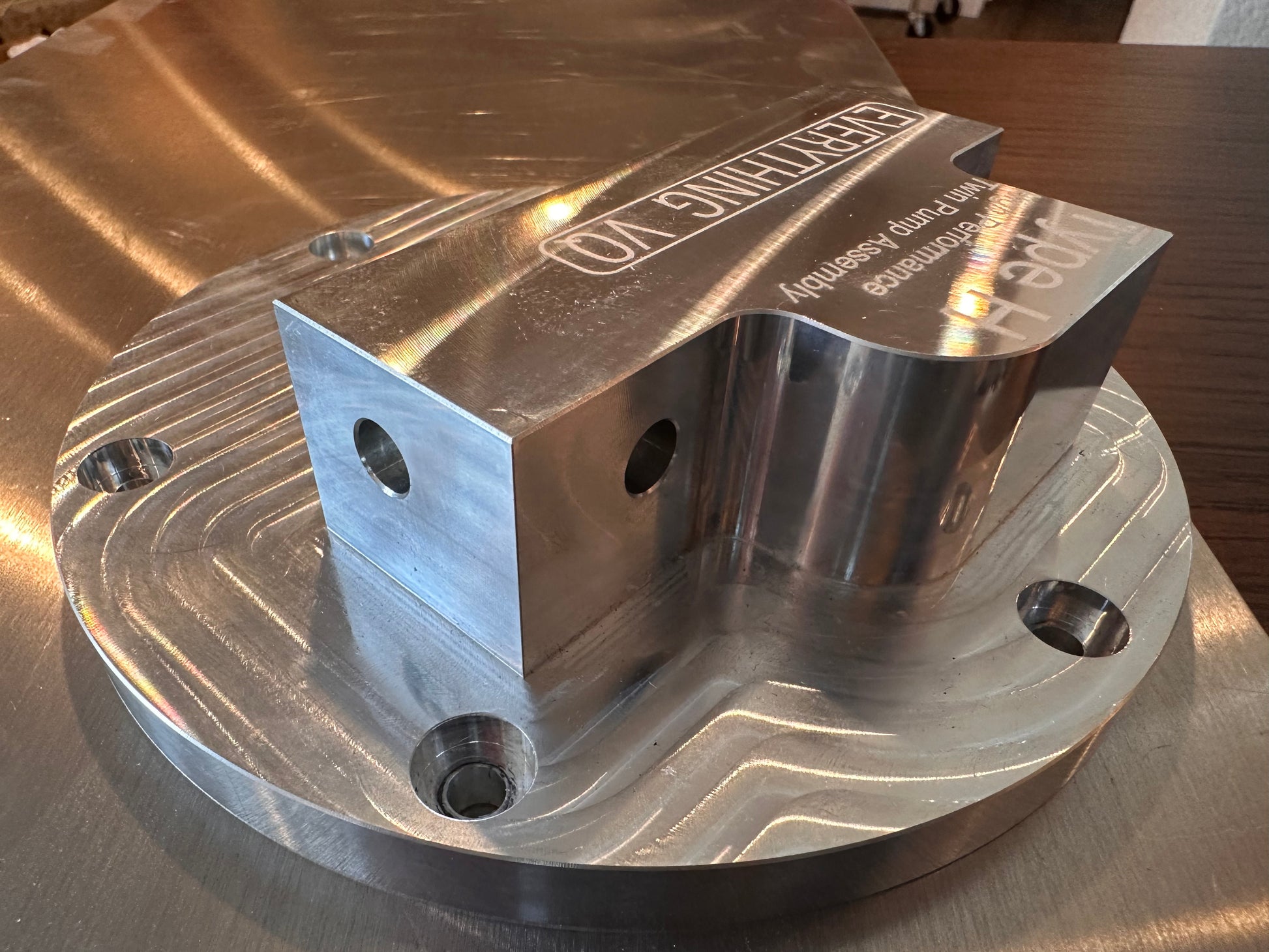

Two 1/8” NPT (or similar) blanks are machined into the top hat to fit a fuel pressure, fuel temp, or any other ~1/8” (1/4” diameter) style sensor.  The ports would need drilled-out and threaded for your specific use.

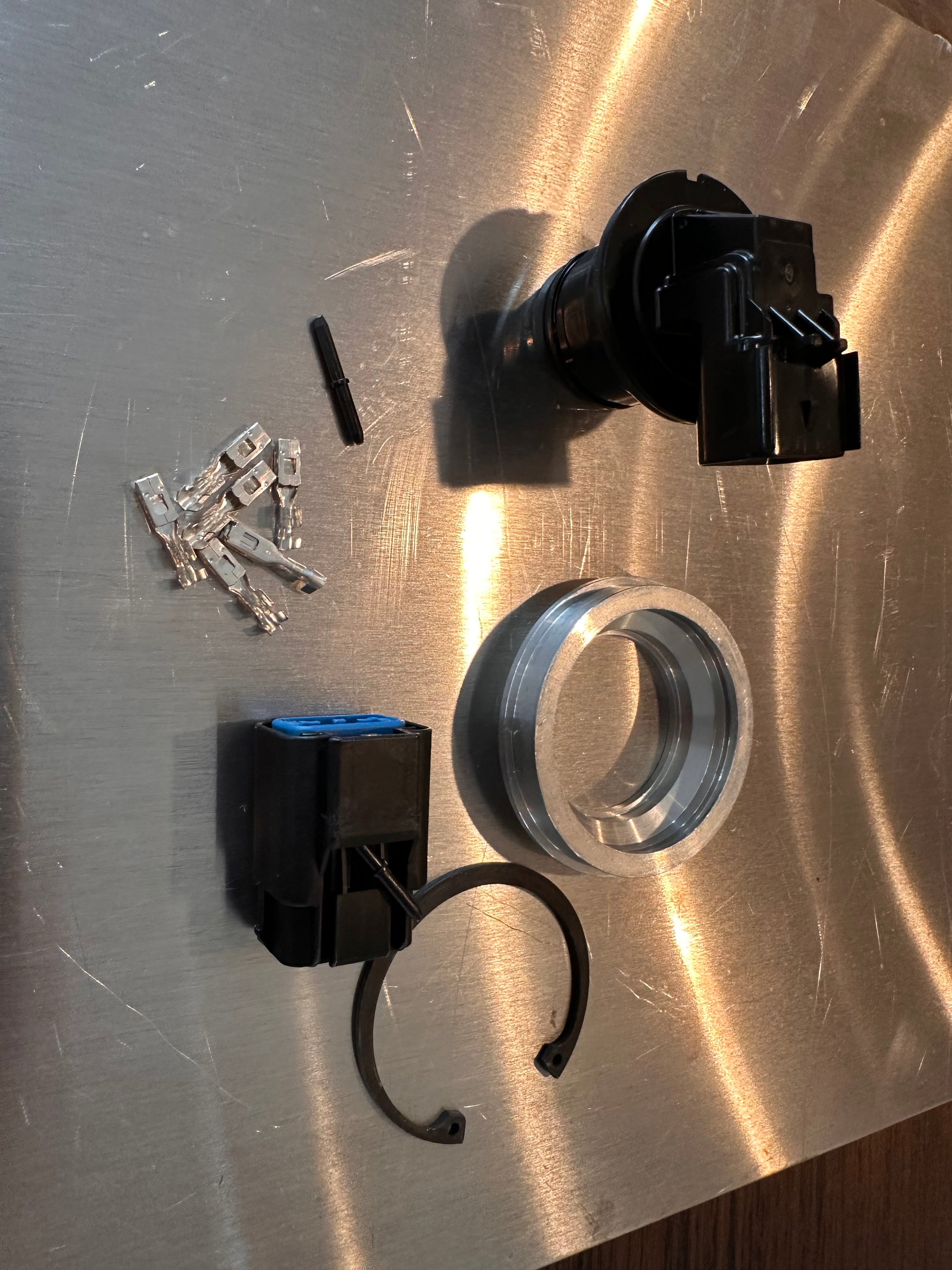

We use the standard 6pin bulkhead connector machined into the top hat.

The kit excludes pumps but can be added at a discounted price(message me).  We opted for the AEM 50-1220 bc their compact size, AEM’s trusted reliability, AEM’s top tier customer support, and are readily availability.

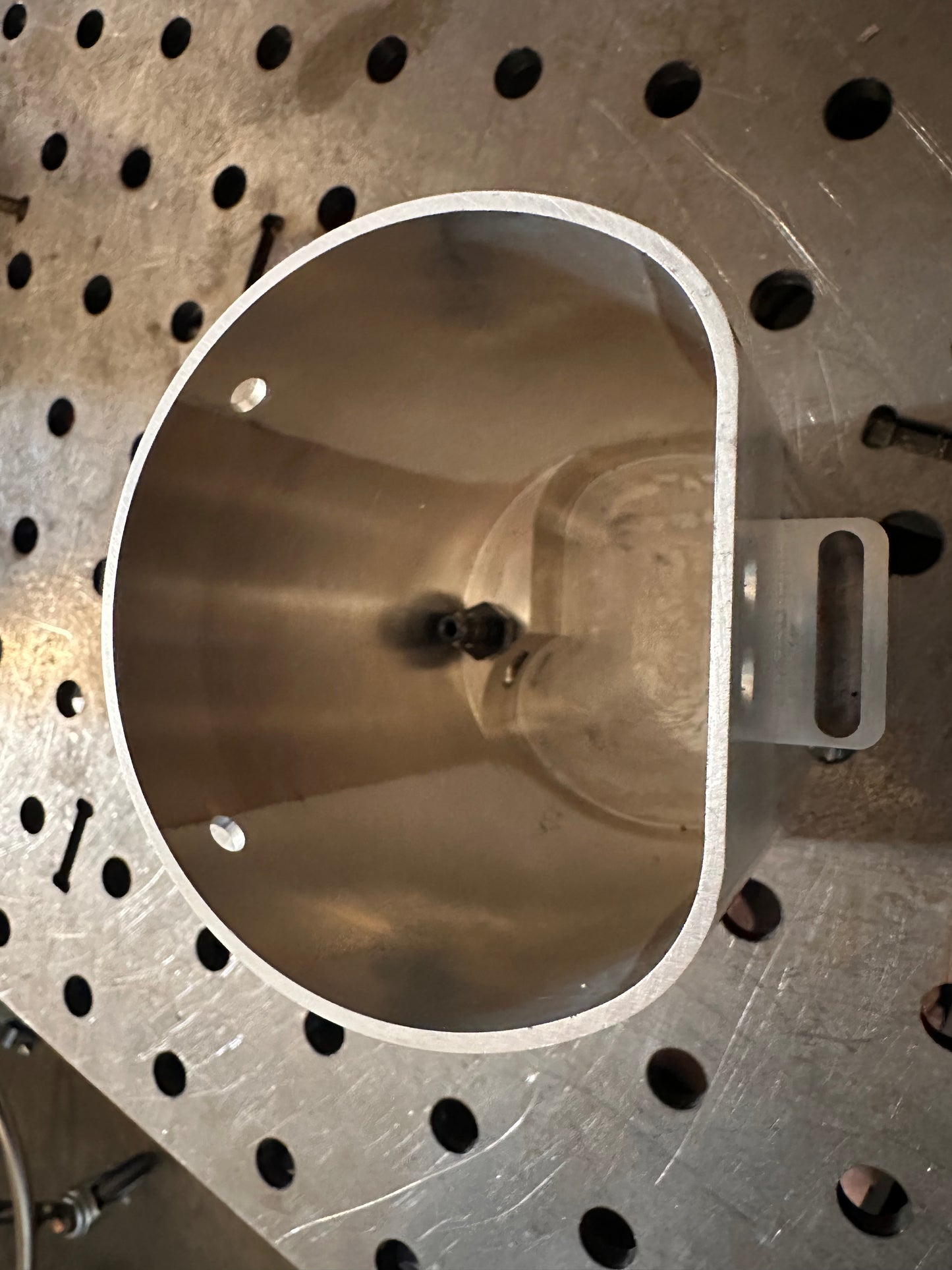

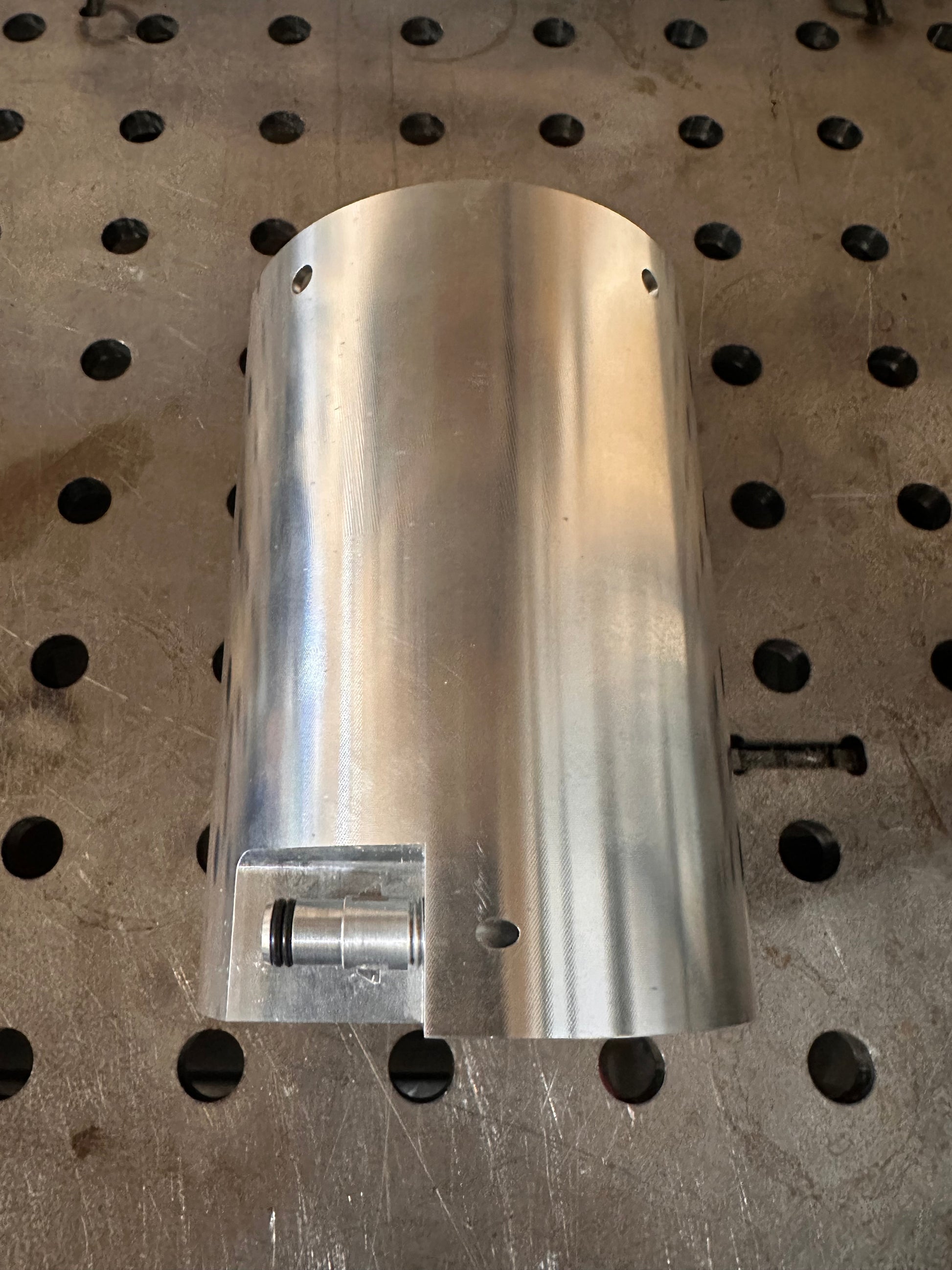

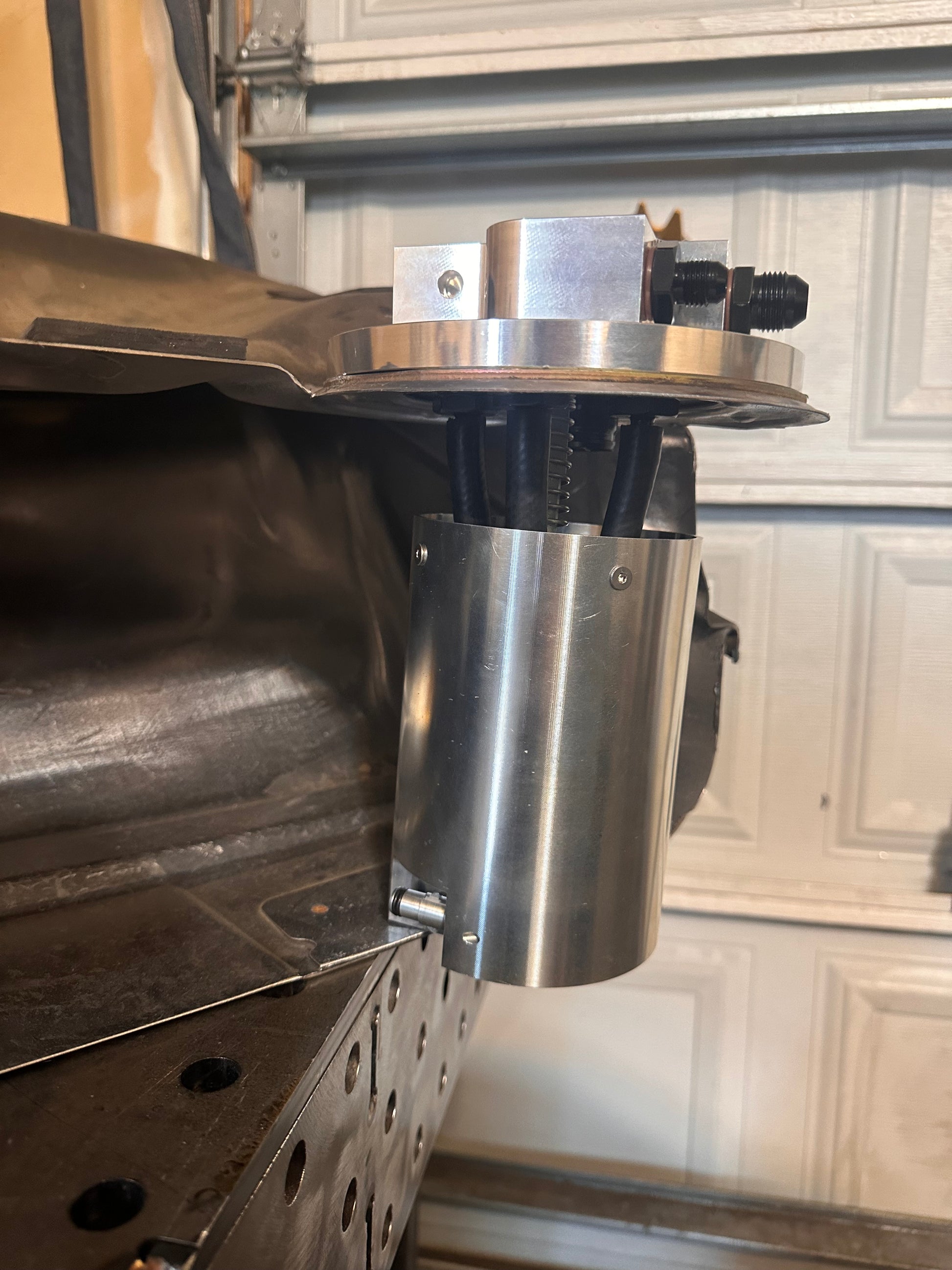

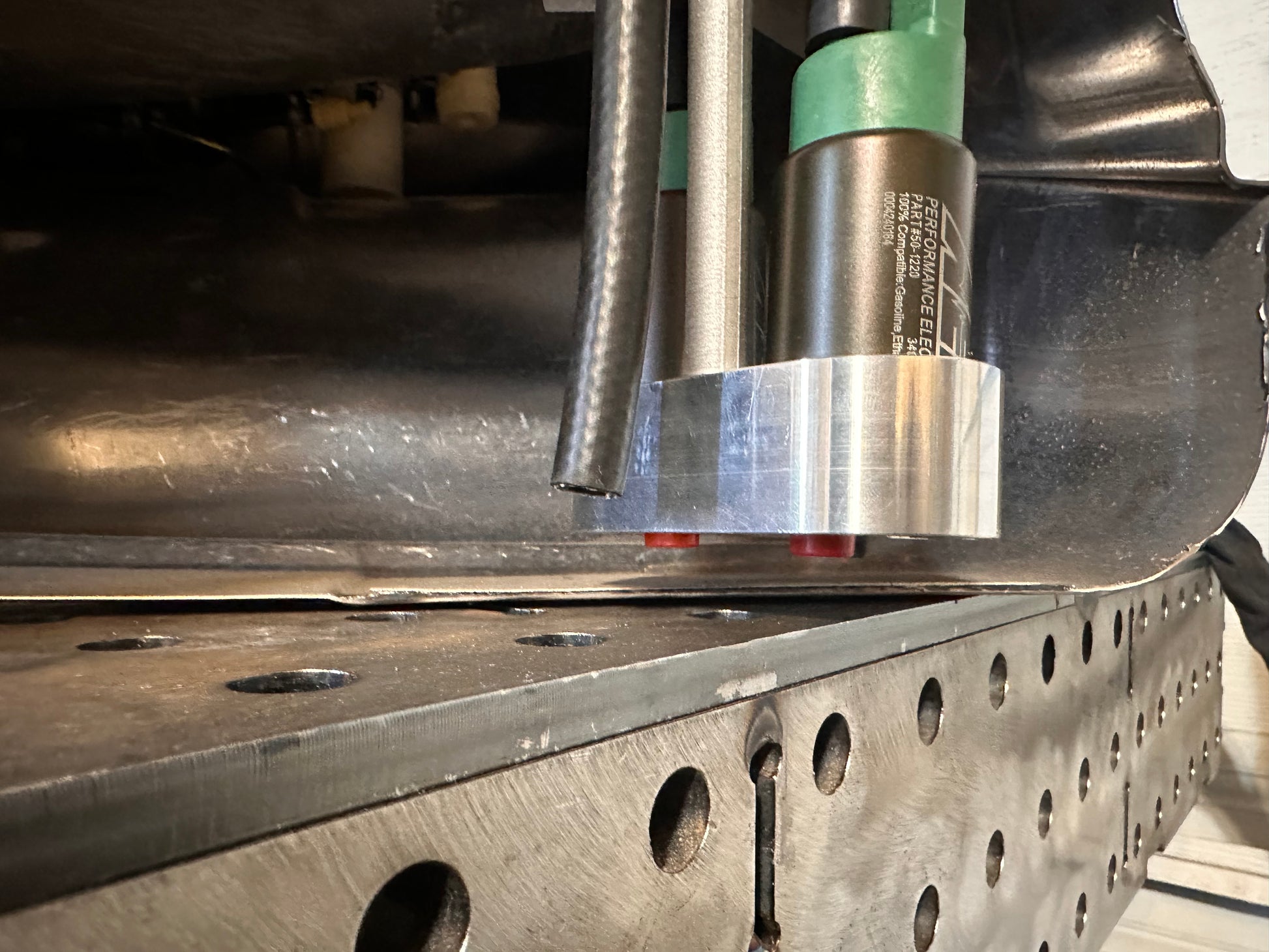

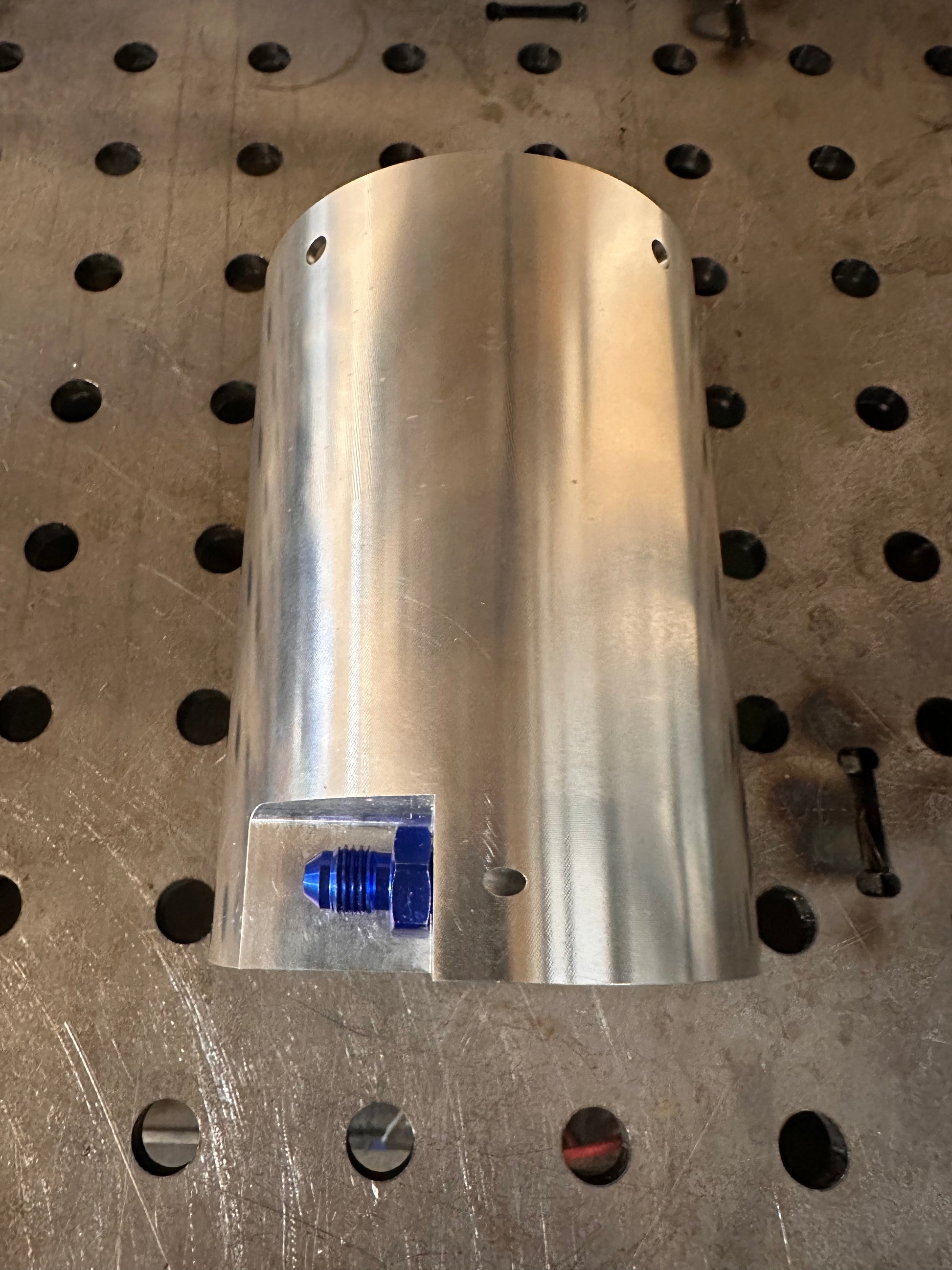

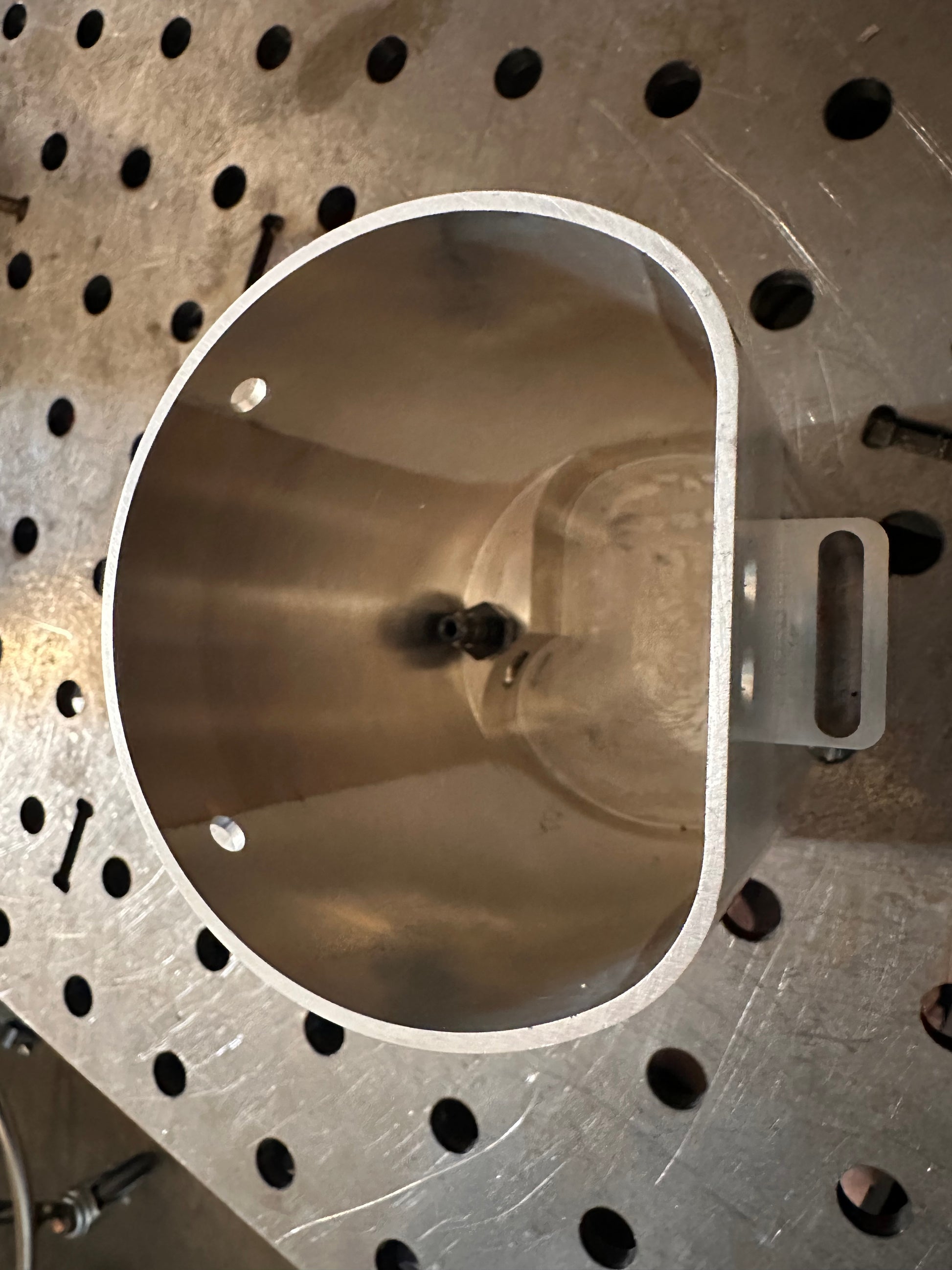

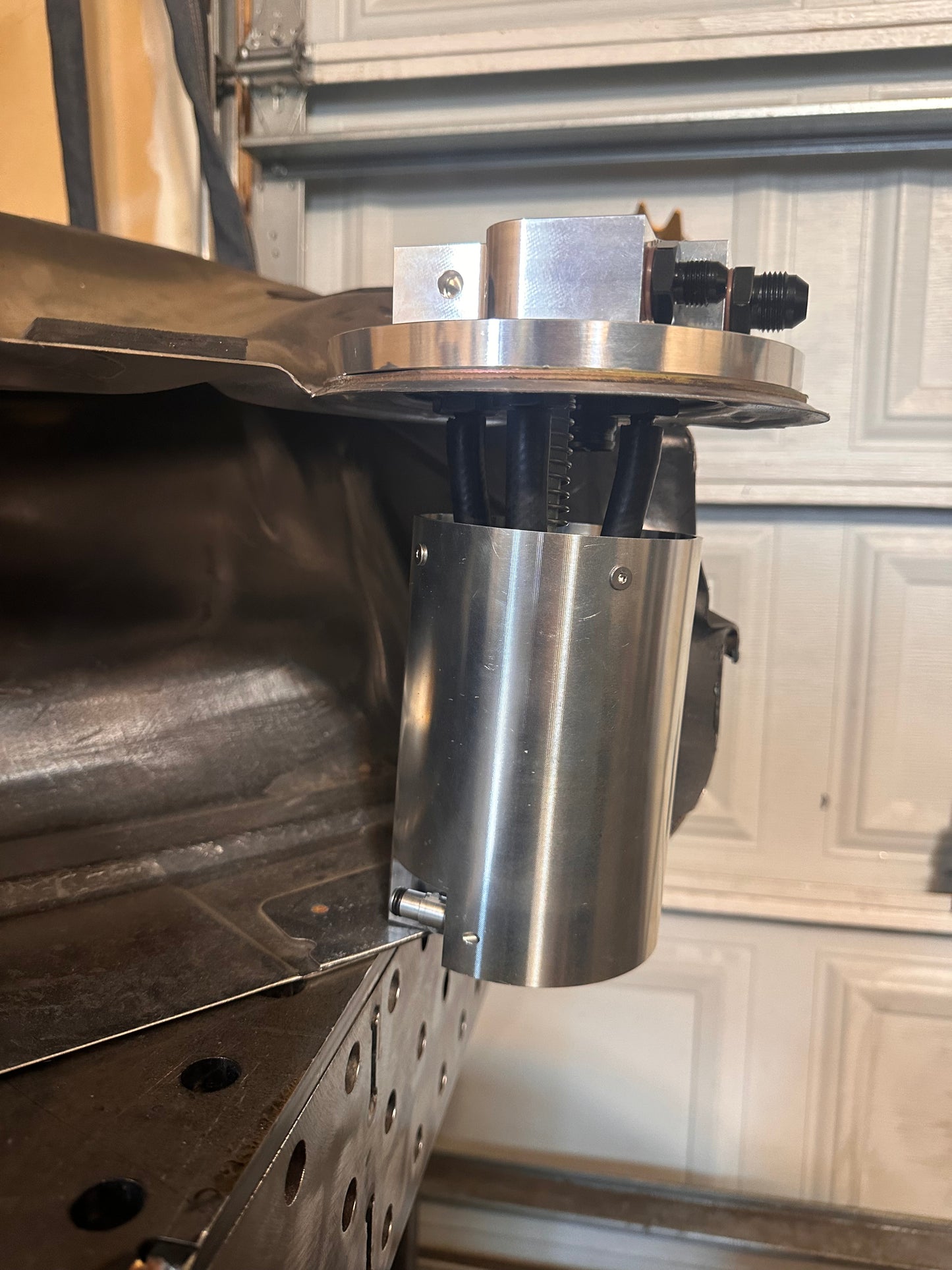

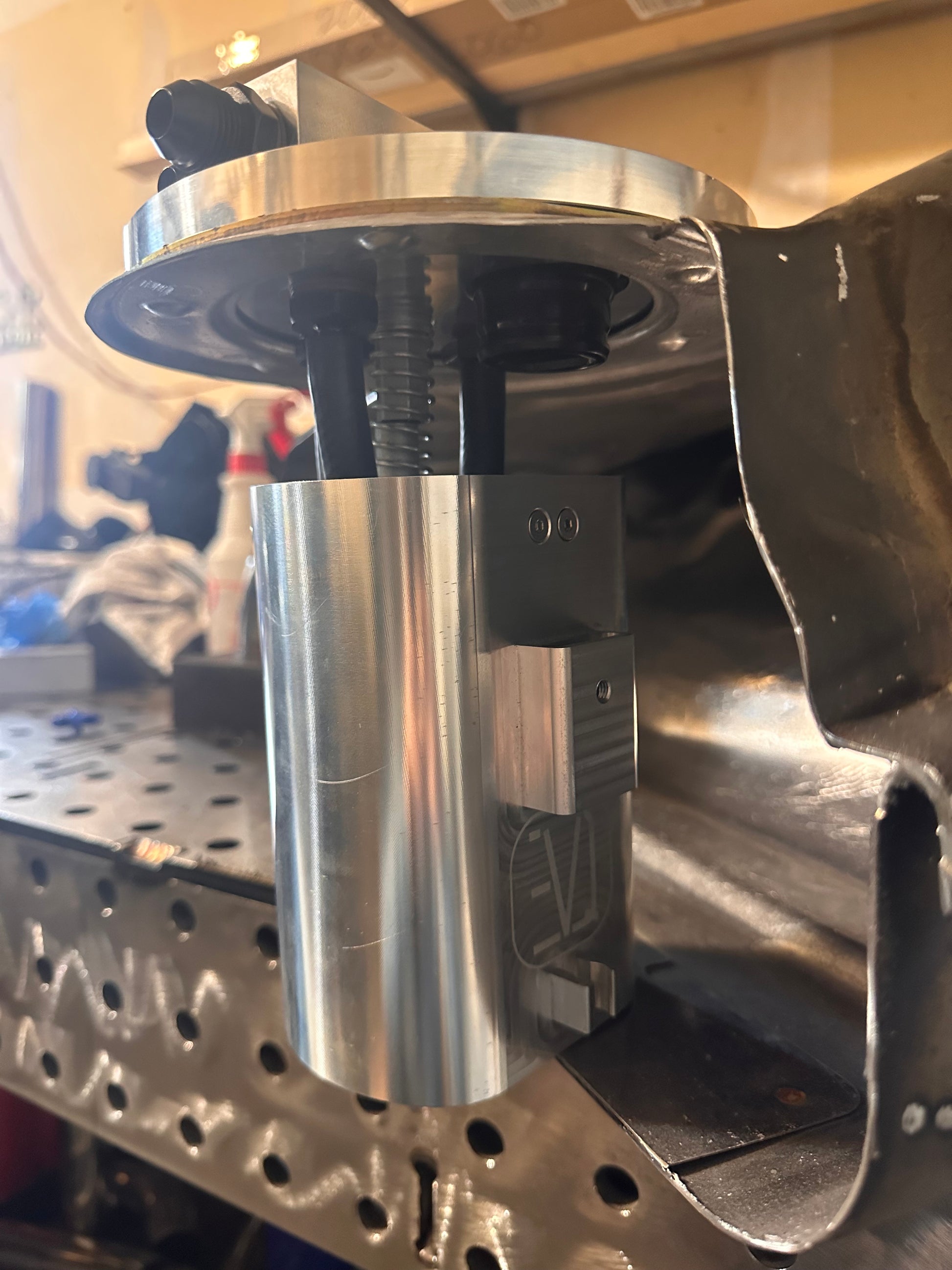

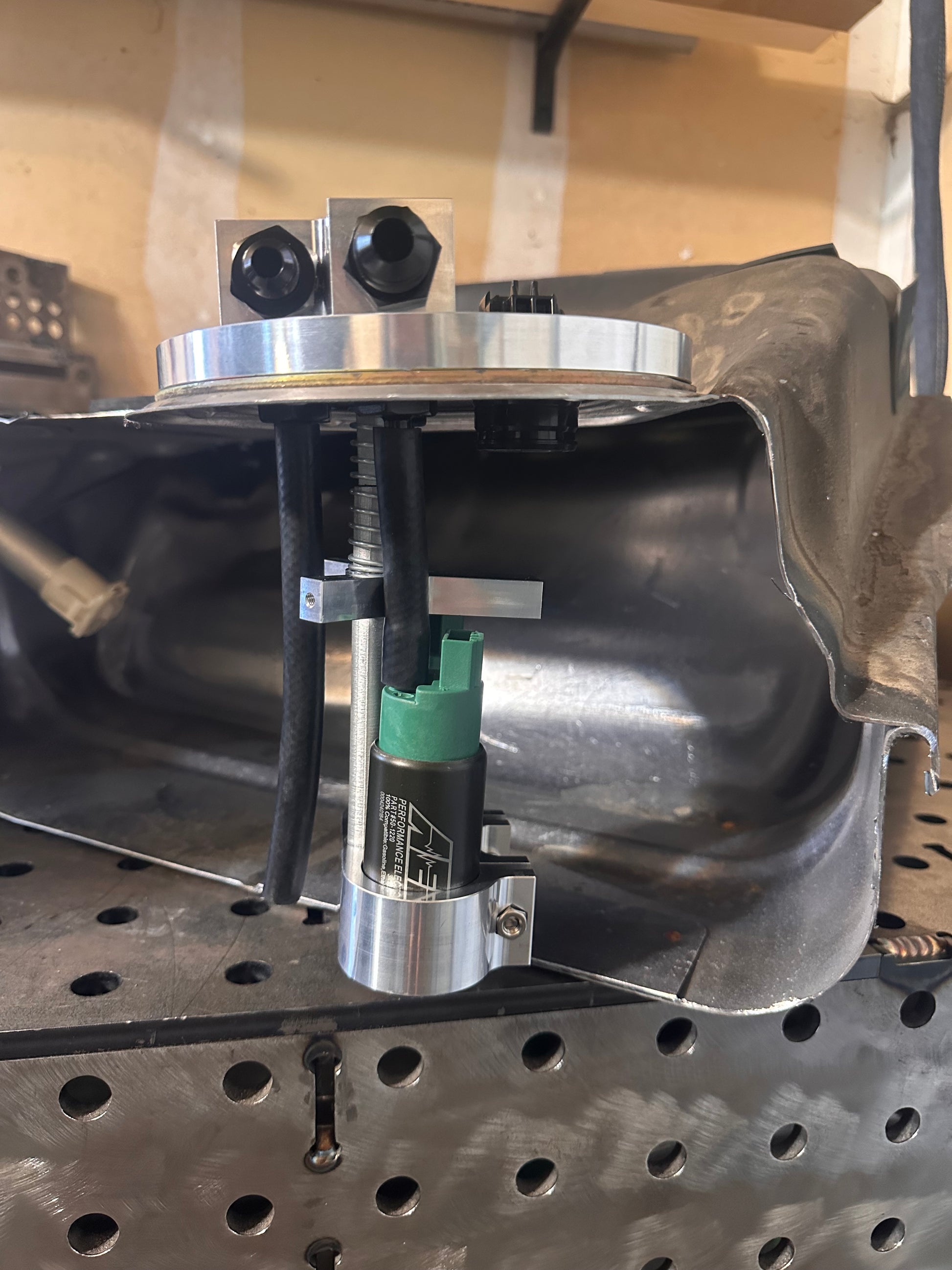

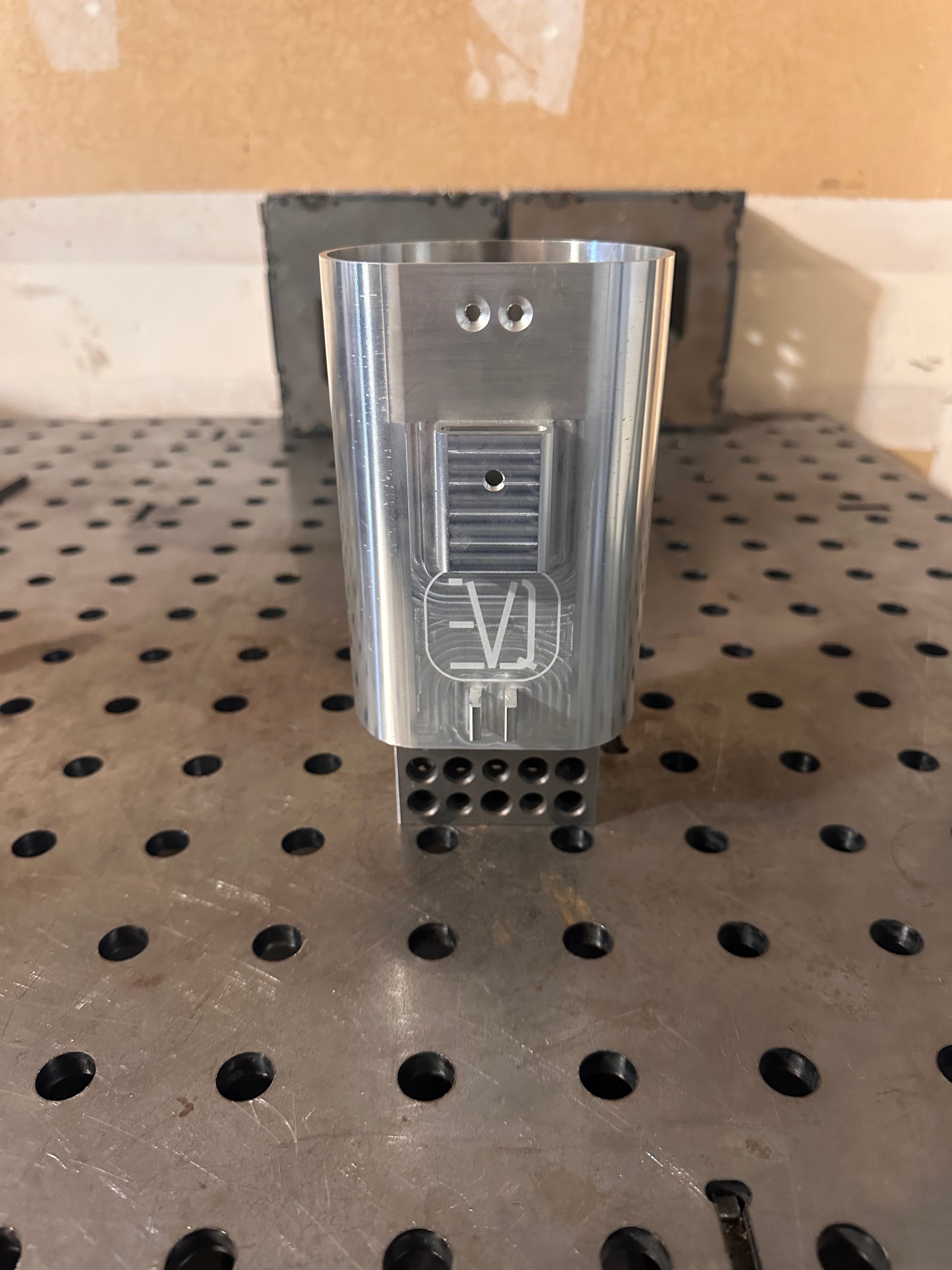

We clocked the top hat to offer a straight-shot to the fuel lines.  The surge tank can be rotated in any direction inside the OEM fuel tank.  The surge tank is spring loaded (like the OEM) so it’s not bouncing inside the OEM fuel tank.

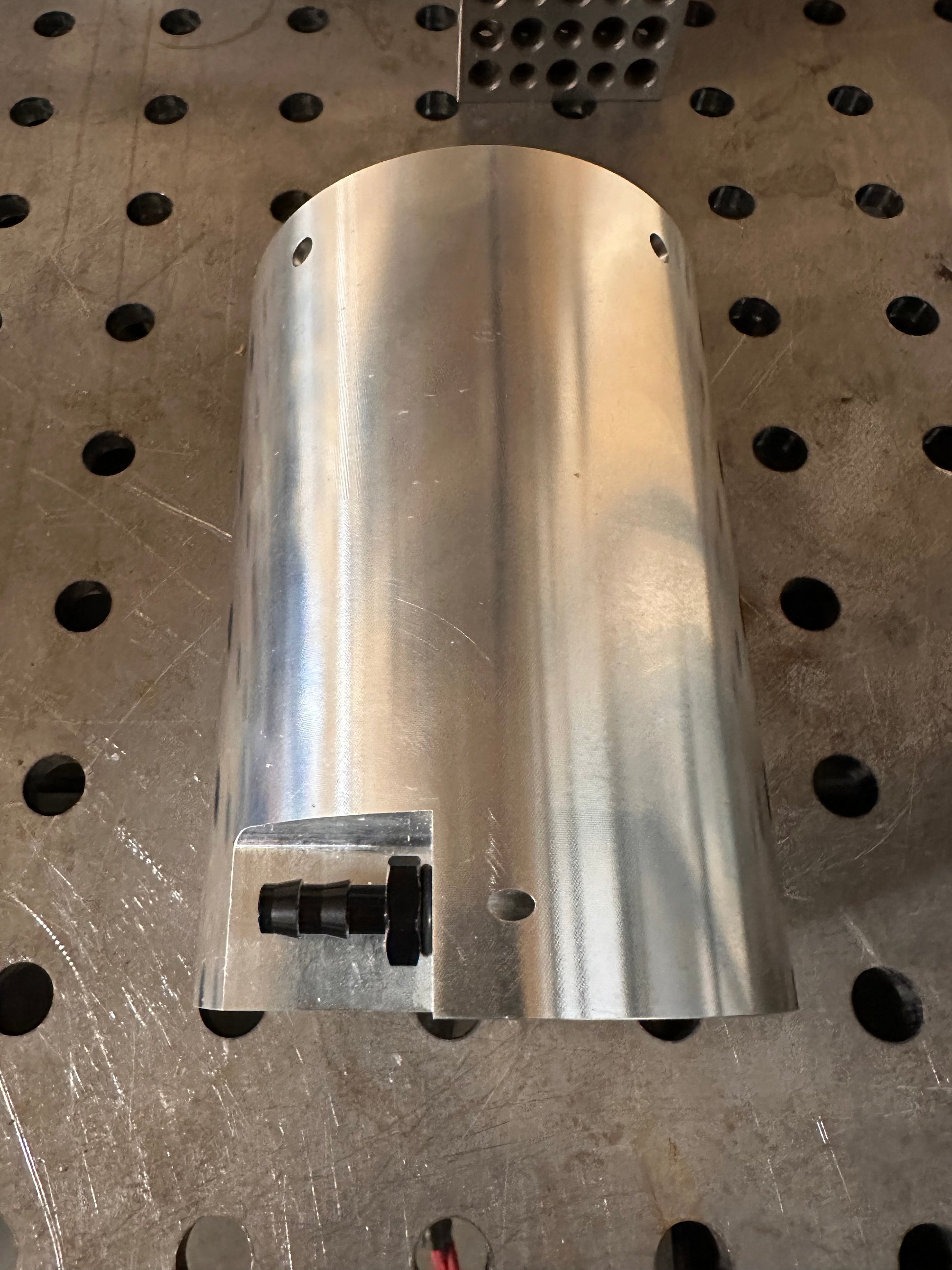

The OEM siphon hose fitting (included) is independent of the surge tank, so it can be removed and replaced with an alternate style of fitting (barb, AN, etc).  This was done to run a line & pump from the drivers-side saddle or any other applicable setup.

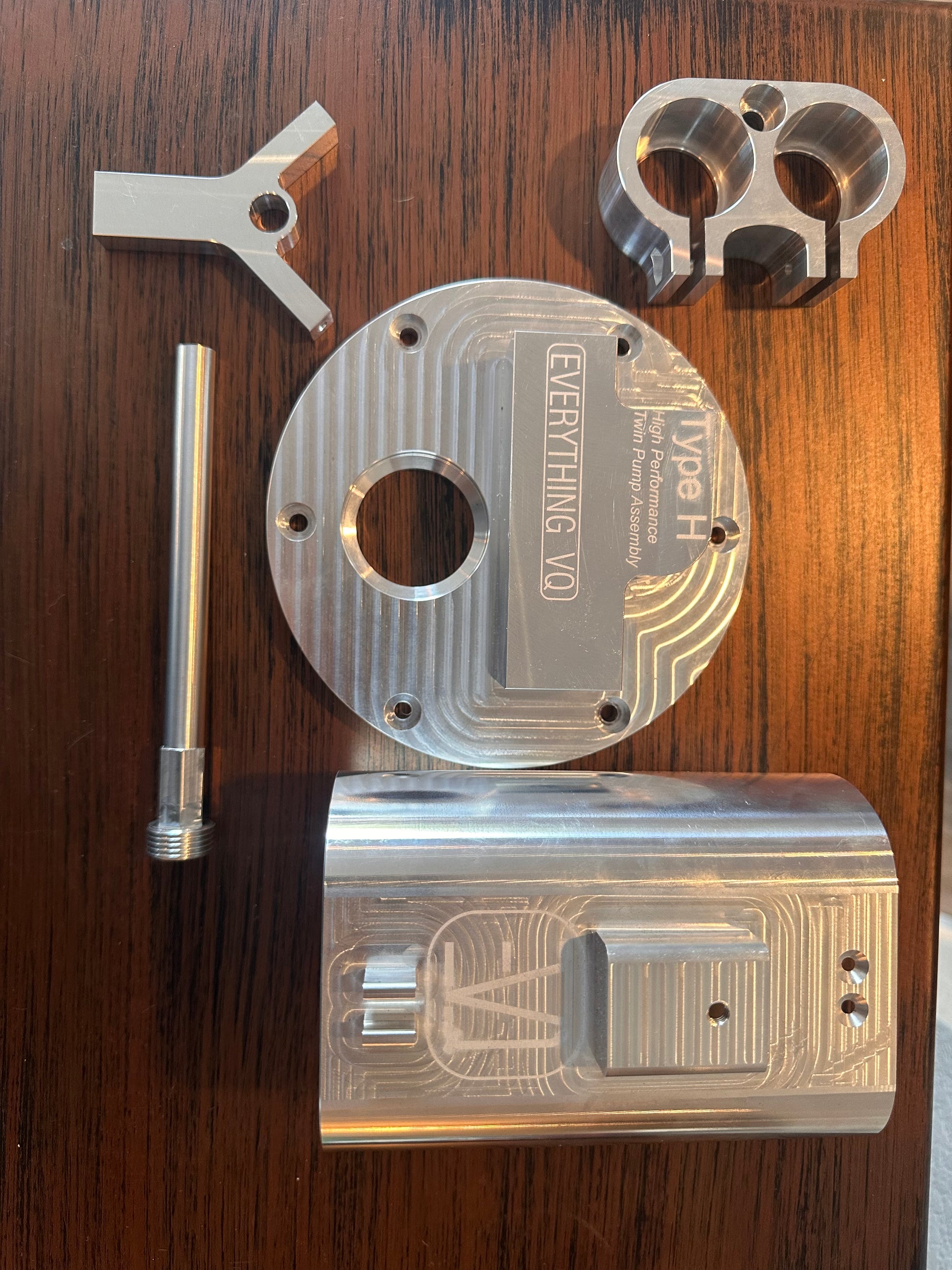

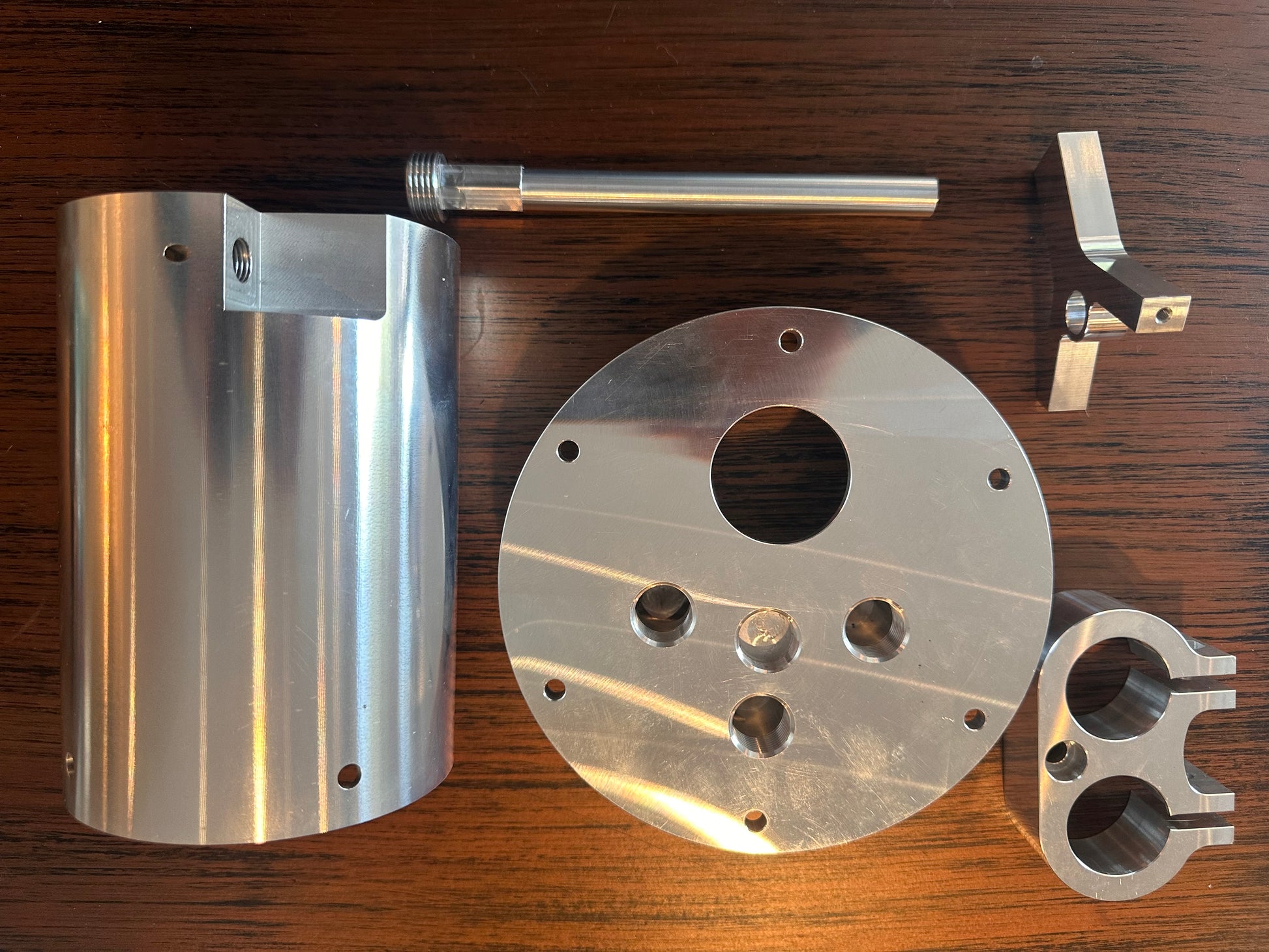

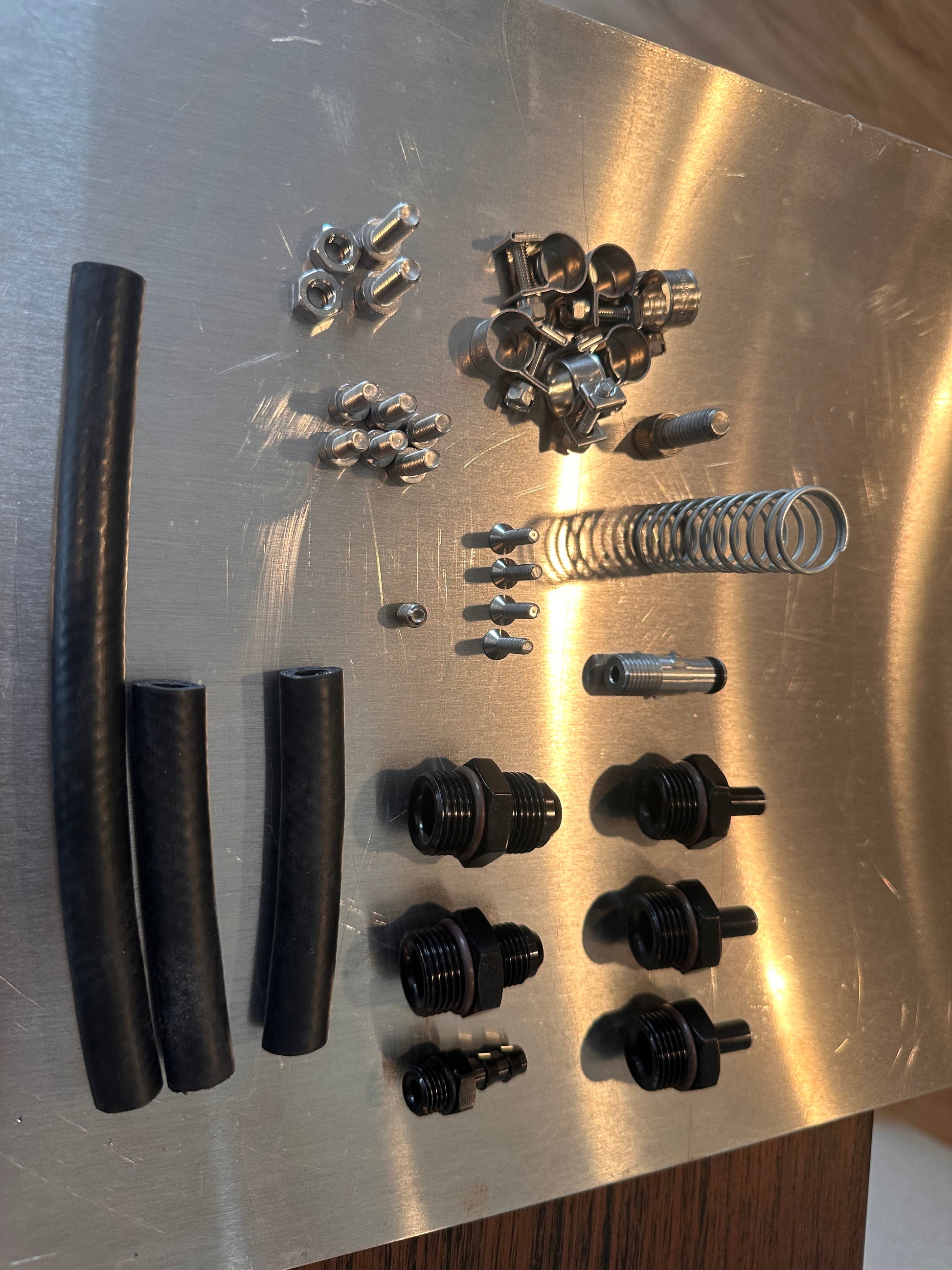

It’s constructed from 6061 aluminum and all hardware, hoses, clamps, etc are included

Hoses are Radium submersible 3/8” line

Fittings are all Radium

Hardware is all A2-70 stainless steel

The connector is sourced from Racetronix

The tank will accept an OEM level sensor and OEM temp sensor as long as they’re wired through the bulkhead connector.
