EVQ Labs VQDE Velocity Stack Plate

EVQ Labs VQDE Velocity Stack Plate

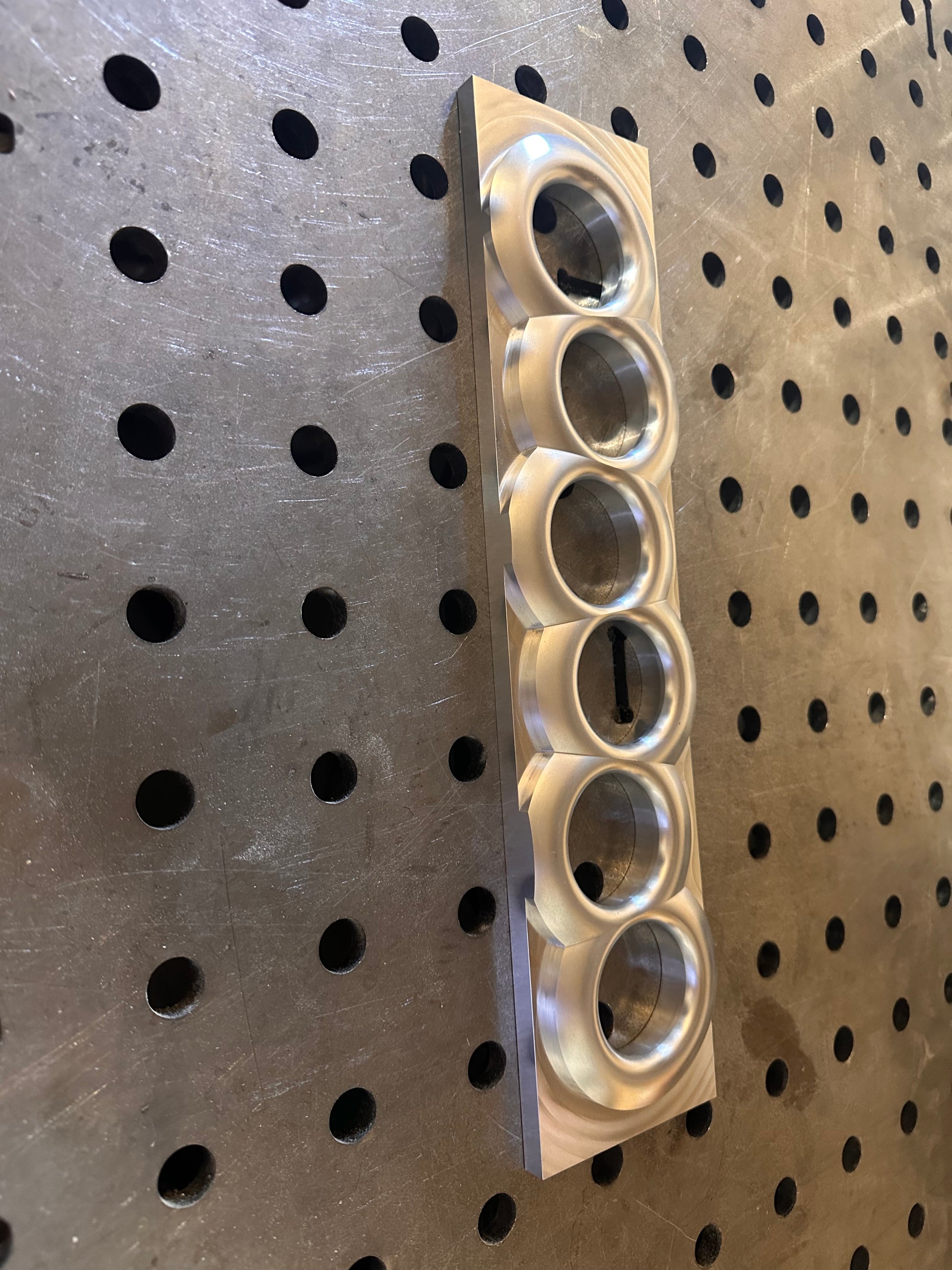

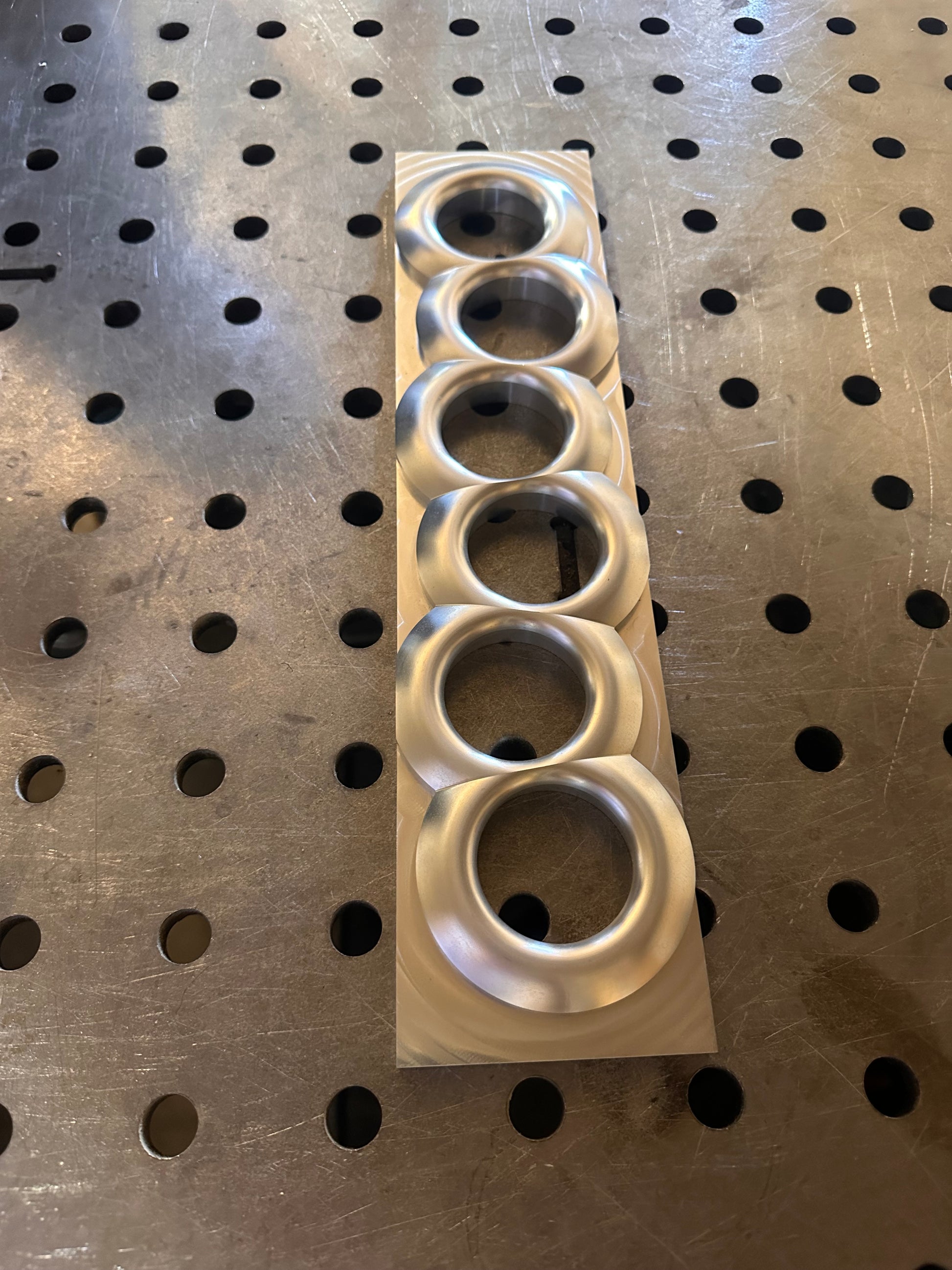

Machined from 3/4”(19mm) of 6061 aluminum plate that takes advantage of the eliptical plane velocity stack.  Eliptical plane velocity stacks show a 6% to 7% increase in flow over a bare tube and a 2% to 3% increase compared to bell-mouth or rolled edged velocity stack thus increasing charge speed and charge volume.

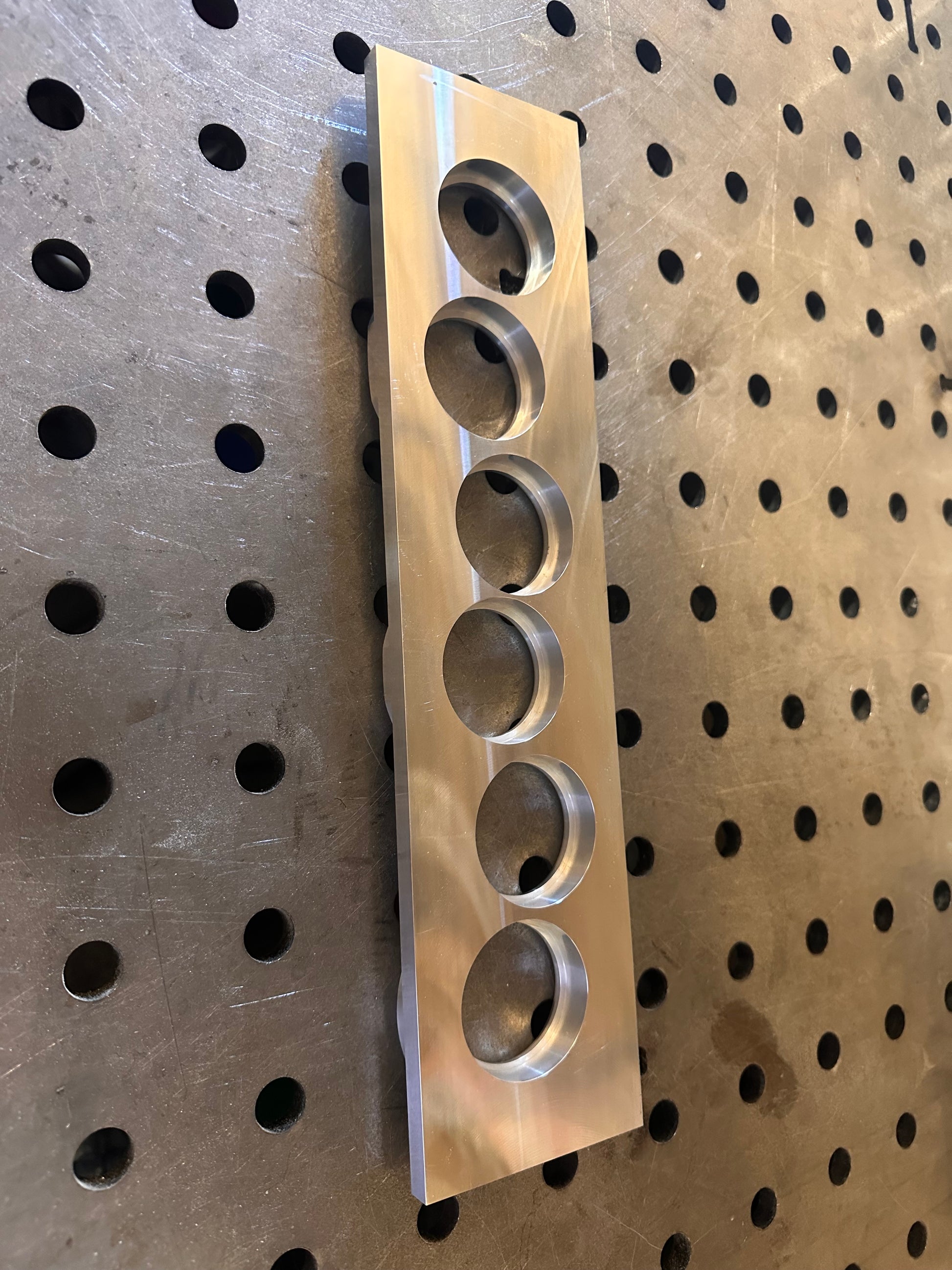

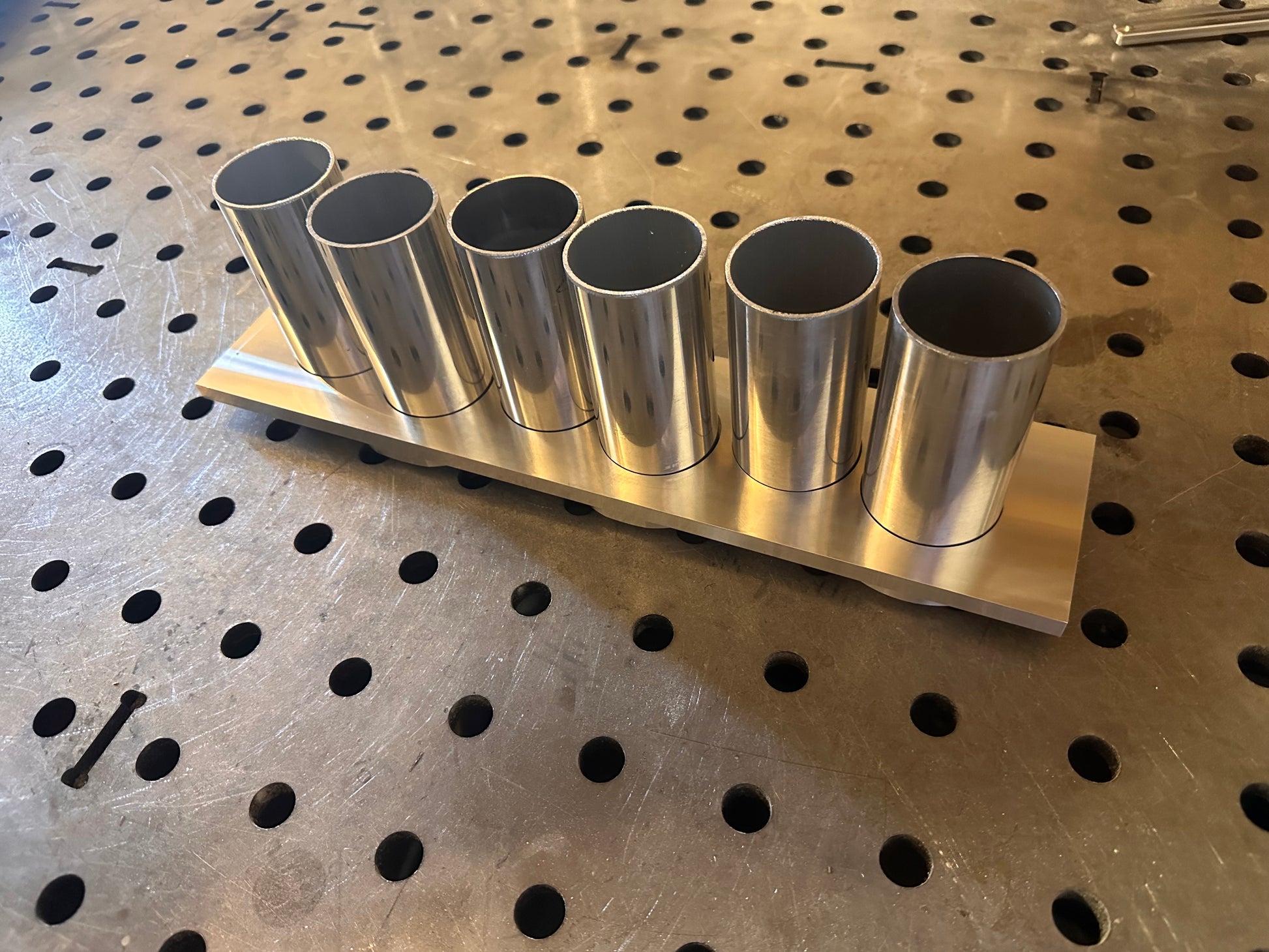

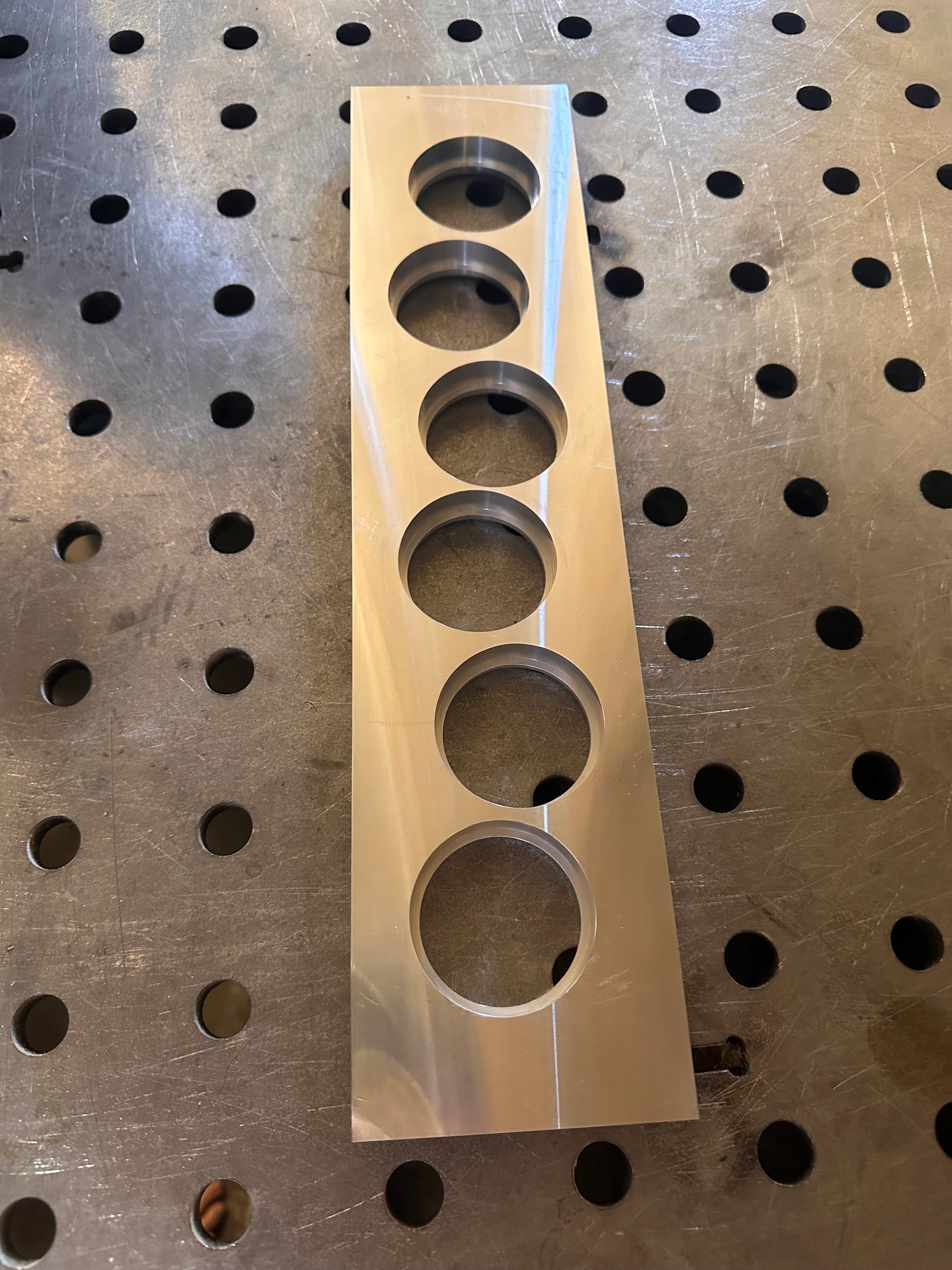

The EVQ Labs Velocity Stack has a counter-machined bottom that allows a ~2” aluminum pipe to seat inside without negaively effecting air flow.  Opening measures ~2.015” allowing for fabrication tolerances.

The EVQ Velocity Stack is intended to pair with the lower manifold flange and a user defined set of runners optimized for each individual application.
