Radium Engineering Dual Catch Can Kit, Nissan 370Z

Dual Catch Can Kit, Nissan 370Z

 Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. These kits mount using factory holes and integrate perfectly with the surrounding components. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modification to the vehicle is required.

To keep the symmetry that Nissan designed into the VQ37VHR engine bay, the catch cans secure to the RH strut tower and LH strut tower.

No permanent modifications are required. The two oil catch cans run inline with the twin PCV valves integrated into the valve covers retaining factory functionality.

When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valves close and, thus, this hoses experience no flow. Conversely, the PCV hoses will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: No inline check valve is required since Radium catch cans are pressure sealed. This means a direct intake manifold connection is permitted.

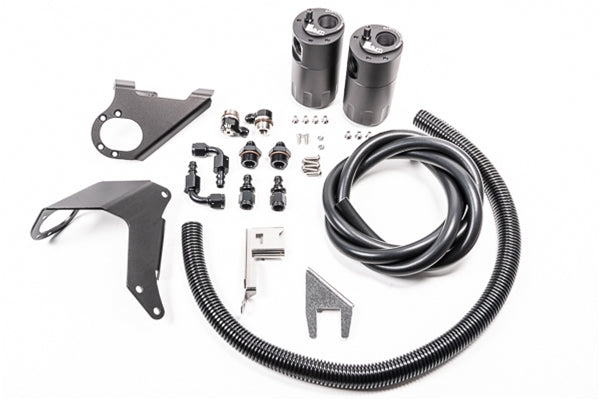

Each kit features the following:
-Anodized oil catch can with integrated condenser and dipstick
-Anodized aluminum 370Z specific mounting brackets
-Anodized aluminum -AN adapter fittings and hose ends
-Stainless steel P/S reservoir and relay box relocation brackets
-Stainless steel mounting hardware

OPTIONAL

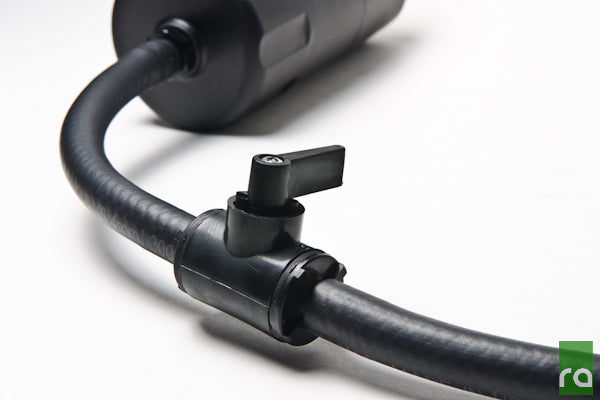

Petcock Drain Kit
-4AN ORB to barb fitting
-Nylon 1/4" barb ball valve
-PCV Compliant Rubber Hose

This kit can be used to remotely drain the catch cans without the need to unscrew the canister body.

More Details

Oil catch cans are essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from high performance driving. Excess oil saturated air circulating back into the air intake stream can lead to degraded performance. Read about all the benefits and functionality of the Radium Engineering's popular catch cans here:

All Radium catch cans provide the following benefits:
-Effectively raises the octane and increased engine performance from cleaner inlet air
-Prevents oil buildup in the intake and intercooler system walls, throttle body, intake manifold, etc.
-Excessive oil collection can be an indicator of a damaged engine.
-Lowers hydrocarbon emissions
-Capacity: 7 fluid ounces each
