Turbosmart

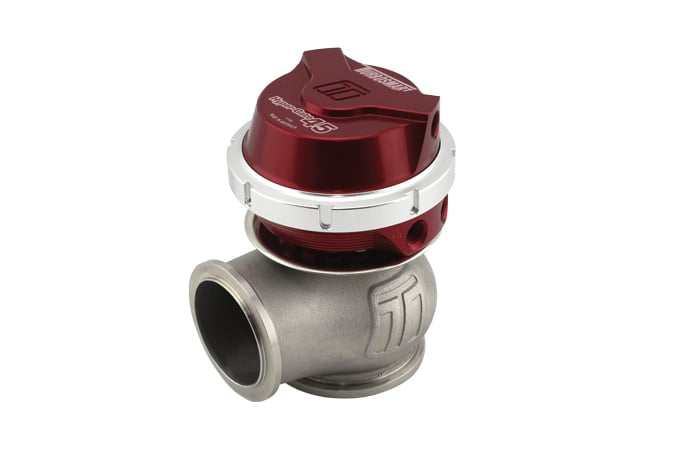

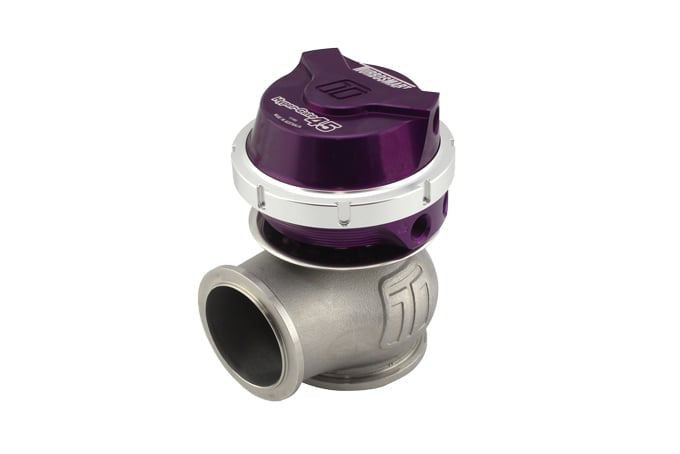

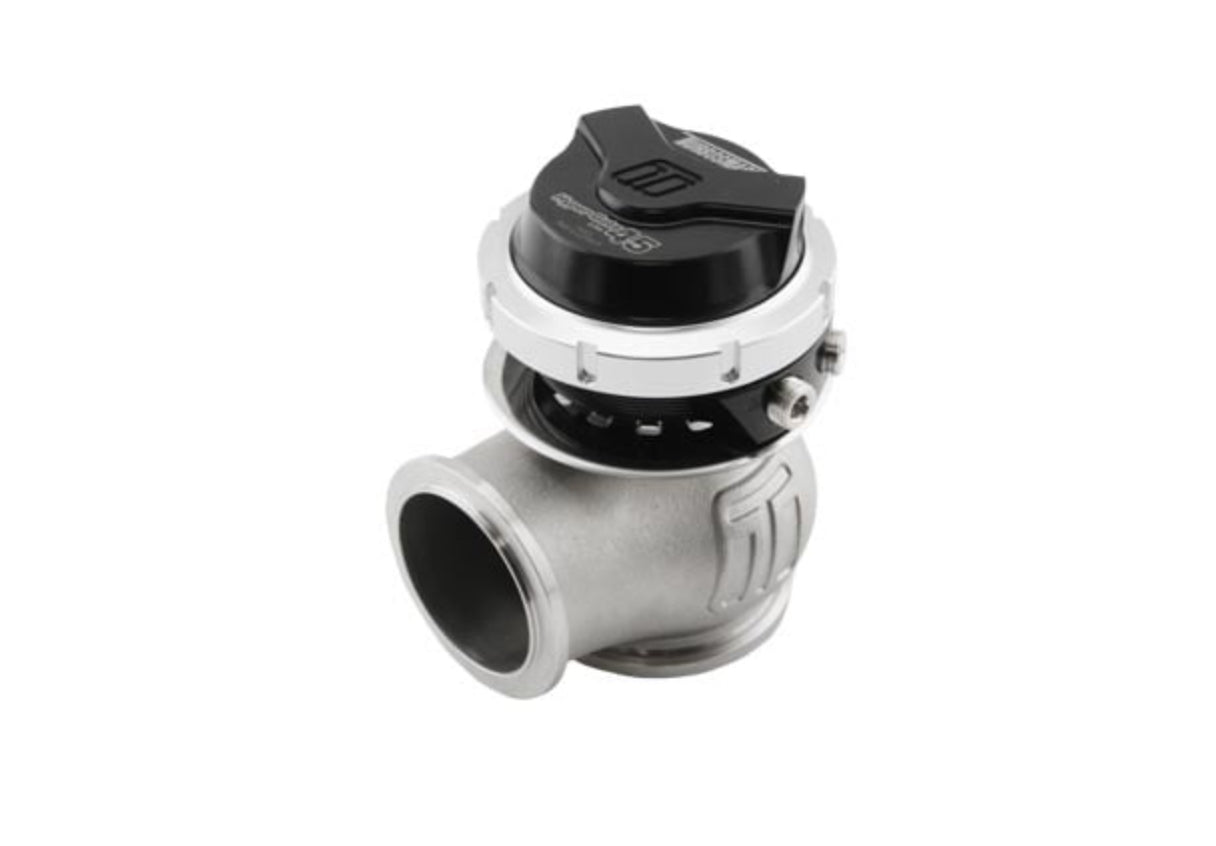

Turbosmart GenV HyperGate45 External Waste Gate
Couldn't load pickup availability
TurboSmart products are made from high-quality materials to serve you and your automotive needs. Each series is designed using state-of-the-art technology, in-house research & design and with the end consumer in-mind. TurboSmart products will meet your needs and deliver great quality at an affordable cost.
Features & Benefits
- Designed to help you get the most out of your vehicle
- Perfect for use in high-performance environments
- Made to be rock-solid strong and durable to endure punishing conditions
- Crafted from the finest materials to ensure superior dependability and terrific value
The GenV WG45 HyperGate45 External Wastegate is a Motorsport proven, cost effective external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Available In
Black, Blue, Red and Purple
Wastegate Position Sensor Version & Upgrade
Compressed Gas (ex: Co2) Version
Motorsport Version (CFD driven Heatsink design)
eWG (Electronically Actuated) Version
HP (High Pressure Version) Up to 50psi
Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
Other TurboSmart Products available for any chassis/engine - if you dont see what you’re looking for please message us directly.
We shop our competition - if you find a lower comprable price we will match or beat it - message for details!
Founded in Australia in 1997, Turbosmart has quickly become one of the automotive aftermarket’s biggest names for turbo control and management. Their boost controllers, blowoff valves, wastegates, and fuel management systems are found on vehicles all over the world, and they offer replacement/upgrade components for a number of popular vehicle models.
WARNING - Proposition 65 Compliance Statement:
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
Important Emissions Note: This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.
