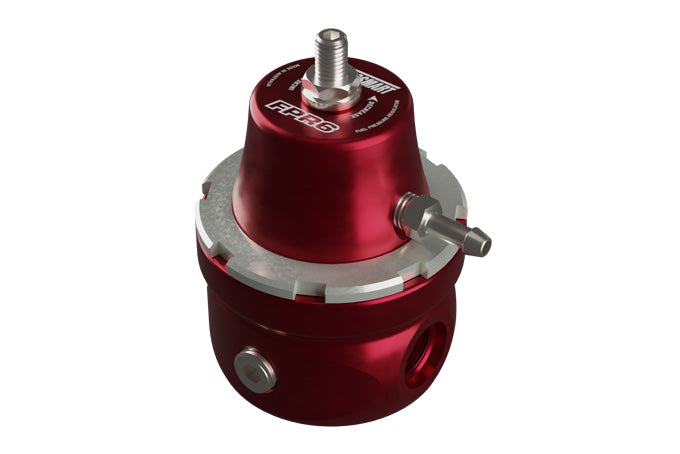

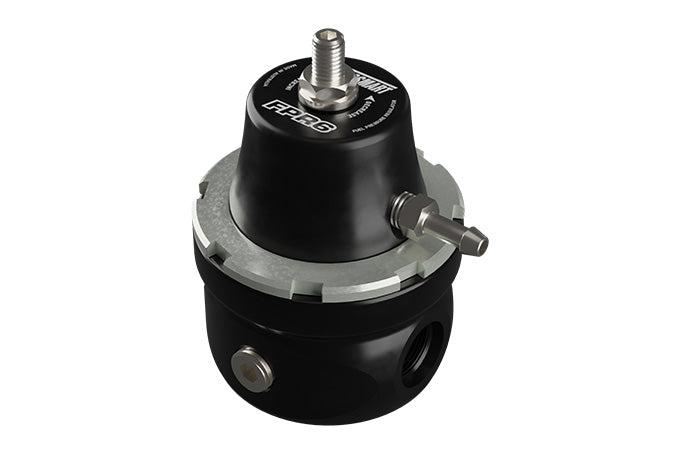

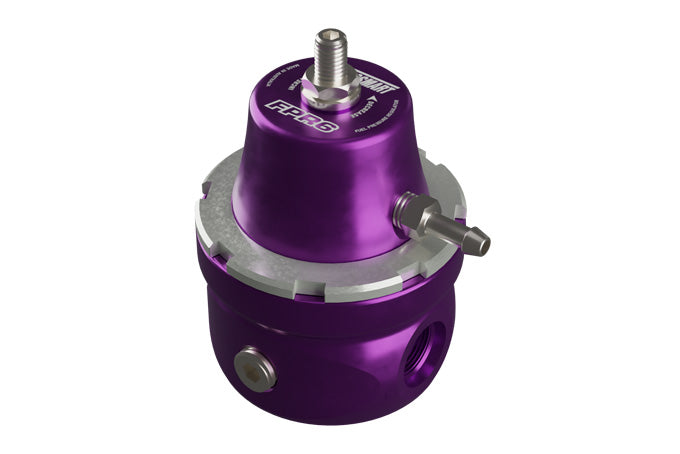

Turbosmart FPR Series Fuel Pressure Regulator
The Turbosmart FPR6 Series provides market-leading fuel control and response via actual 1:1 ratio and superior flow and bypass capacity for vehicles with -6 / 6AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR6 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR6 Range includes a 6AN inlet, outlet and returns port and is Available in Standard (35psi to 80psi) and LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 1200HP systems.
Features
-Stainless Steel Valve Seat
-Suitable for all fuel types
-1:1 Class Leading Ratio and Response
-Adjustable Pressure
-1/8 NPT Gauge / Pressure Sensor Port
-Unique Locking Collar Design
-Milspec Diaphragm

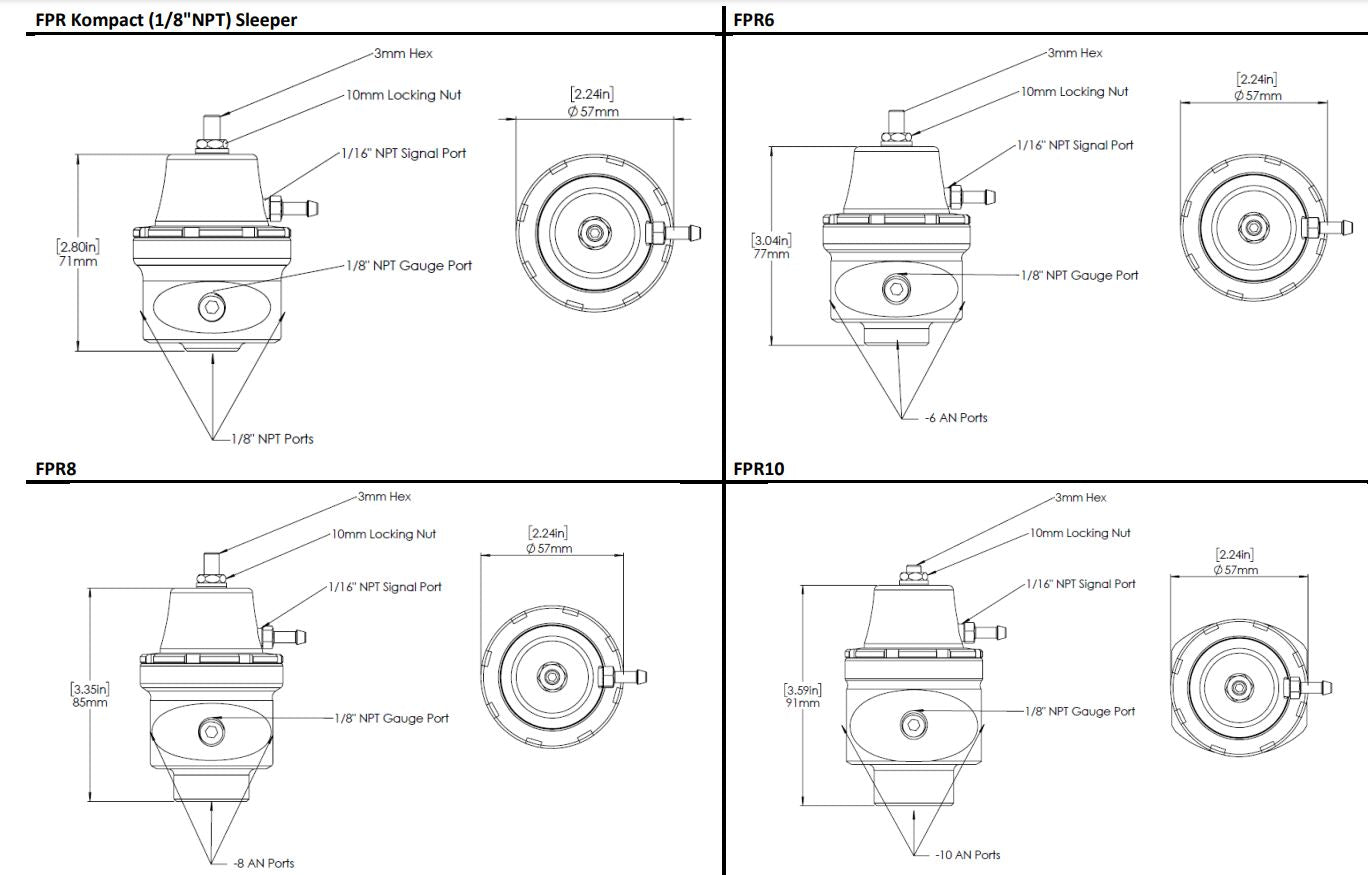

-Detailed Specific Fuel Flow Data and Spec
-Black
-Blue
-Purple
-Red
The Turbosmart FPR8 Series provides market-leading fuel control and response via a true 1:1 ratio and superior flow and bypass capacity for vehicles with -8 / 8AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR8 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR8 Range includes an 8AN inlet, outlet, and returns port and is available in Standard (35psi to 80psi) and LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 2000HP systems.
Features
-Stainless Steel Valve Seat
-Suitable for all fuel types
-1:1 Class Leading Ratio and Response
-Adjustable Pressure
-1/8 NPT Gauge / Pressure Sensor Port
-Unique Locking Collar Design
-Milspec Diaphragm
-Detailed Specific Fuel Flow Data and Spec
-Black
-Blue
-Purple
-Red
FPR10 Model LineThe Turbosmart FPR10 Series provides market-leading fuel control and response via a true 1:1 ratio and superior flow and bypass capacity for vehicles with -10 / 10AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR10 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR10 Range includes a 10AN inlet, outlet and returns port and is available in Standard (35psi to 80psi) and LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 3000HP systems.
Features
-Stainless Steel Valve Seat
-Suitable for all fuel types
-1:1 Class Leading Ratio and Response
-Adjustable Pressure
-1/8 NPT Gauge / Pressure Sensor Port
-Unique Locking Collar Design
-Milspec Diaphragm
-Detailed Specific Fuel Flow Data and Spec
-Black
-Blue
-Purple
-Red
Other TurboSmart Products available for any chassis/engine - if you dont see what you’re looking for please message us directly.
We shop our competition - if you find a lower comprable price we will match or beat it - message for details!
Founded in Australia in 1997, Turbosmart has quickly become one of the automotive aftermarket’s biggest names for turbo control and management. Their boost controllers, blowoff valves, wastegates, and fuel management systems are found on vehicles all over the world, and they offer replacement/upgrade components for a number of popular vehicle models.
