Prosport Perfromance
Prosport Performance Gauges 2 1/16” JDM Series
Regular price
$108.00 USD
Regular price
Sale price
$108.00 USD
Unit price
per
Couldn't load pickup availability
Prosport Performance Gauges JDM Series
JDM Series - (Japanese Dual Movement)
Amber/White 52mm - 2 1/16" (2 3/8” Available)
With Warning & Blacked out when off
Amber/White 52mm - 2 1/16" (2 3/8” Available)
With Warning & Blacked out when off
This gauge is the fastest most responsive in our line up.
Whisper quiet and lightning speed makes this series the one to get if you are looking for the ultimate in performance, speed and accuracy.
Each gauge has a fully programmable warning feature built right into the gauge.
Customize the gauge for your application, set the gauges to warn you at any level using the button on the front
We incorporated our unique micro led's around the scaleplate which come on and trail the pointer as it cycles in a cool Blue color.
We incorporated our unique micro led's around the scaleplate which come on and trail the pointer as it cycles in a cool Blue color.
The Blue led's turn red as you pass your programmed warning level.
Power up the first gauge then daisy chain each additional gauge (Excluding Wideband AFR gauge kits).
Less wiring means faster install.
Plug and play wiring harness included.
No cutting / Splicing wires each gauge comes with a direct harness from the gauge to their respective sender.
All of our JDM Series gauges perform a dramatic opening ceremony with a full digital sweep each time the vehicle is turned on.
These gauges are very thin, perfect for tight mounting options only 1 3/8" deep

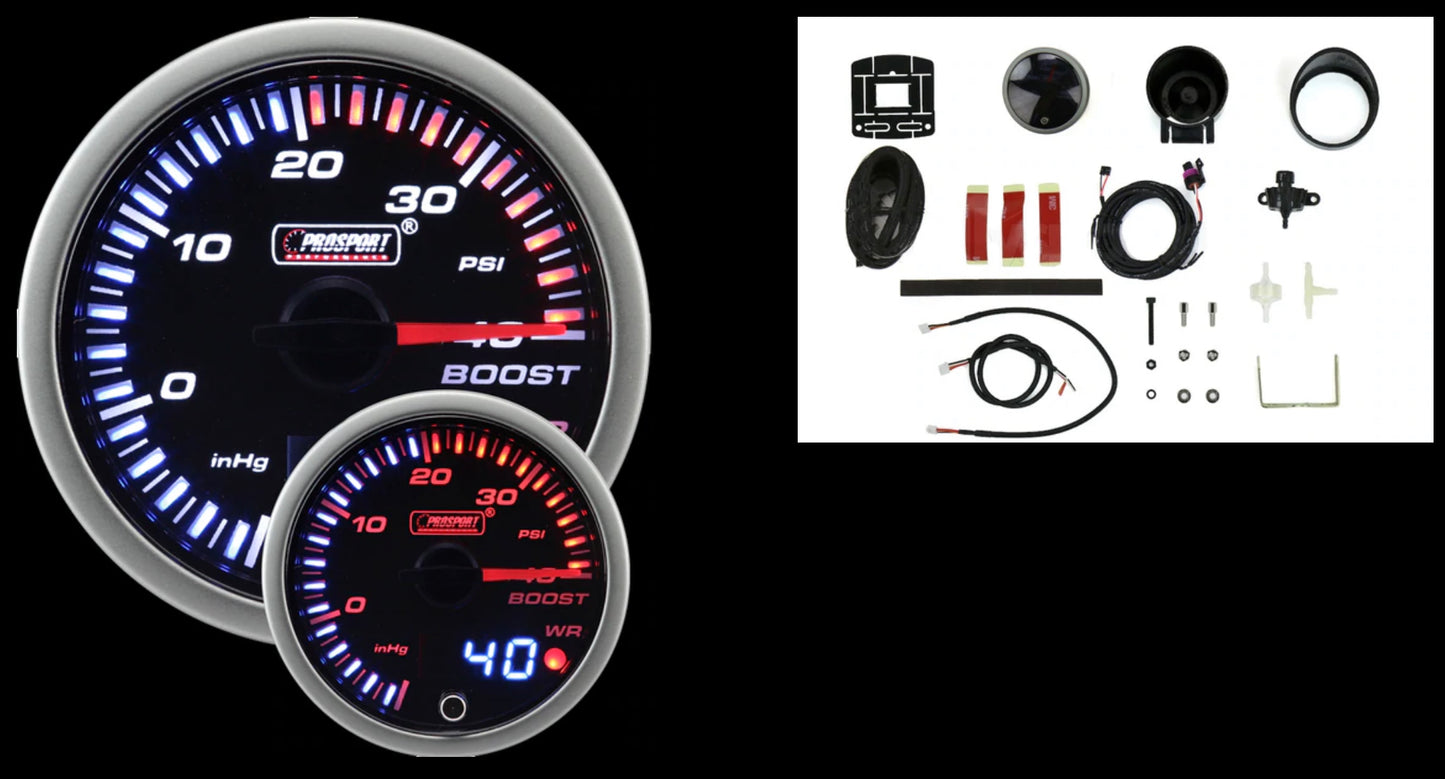

All JDM Boost gauges come standard with our new waterproof Boost sender. No need to worry about where to mount the sender.If your vehicle is supercharged or turbocharged then this gauge is simply a must have. For peak performance you need to know how much boost you are making at maximum RPM's. Now you can accurately monitor your boost as you modify your ride!
Save your turbo- Set the warning feature to alert you before you overboost. Fully programmable to any level you want. Make changes within seconds using the buttons on the front of the gauge.
Features:
Exhaust Temperature
Features:
-
Whisper quiet and lighting fast Japanese Stepper Motor Movement
- -30psi to +40psi reading range
- Analog and digital display
- Silicone tubing / T-adapter kit
- Pointer trailing LED's
- Fully programmable Warning feature
- Premium waterproof sender
- Includes Plug & Play wire harness (gauge to sender)
- 2 color choices
- Decal & Instructions
- Mounting base with Visor
- Free tech support
- Gauge will perform a digital sweep on Start-up
Exhaust Temperature
400-2400°F range, with a 270° dial sweep, now you can easily learn the Exhaust temperature & how your modifications will affect the engine performance. With this gauge you can now tune your vehicle for peak performance.
Features:

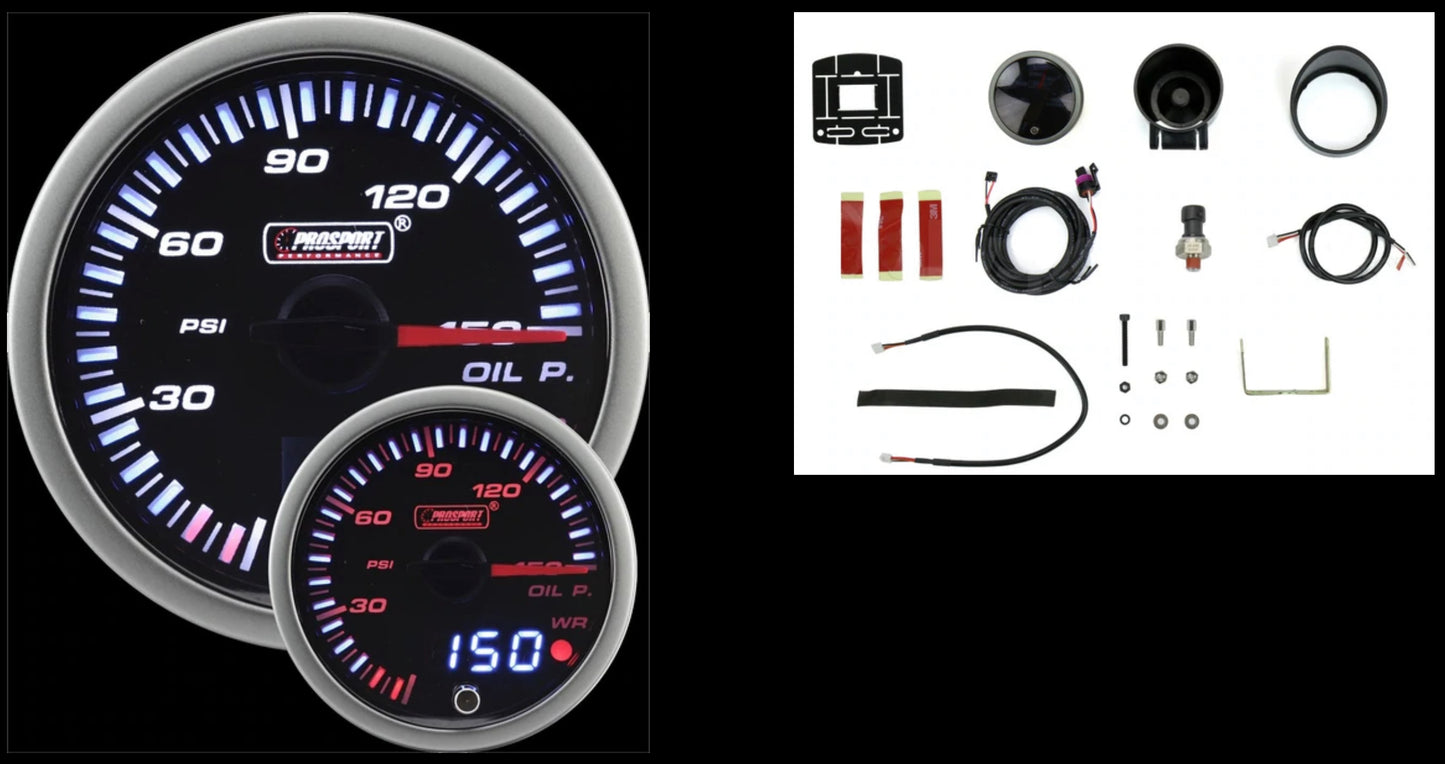

Oil Pressure
Features:
- Wisper quiet and lighting fast Japanese stepper motor movement
- Analog and digital display
- Pointer trailing LEDs
- Fully programmable Warning feature
- Premium K type temperature sender
- Includes plug & play wire harness (gauge to sender)
- 2 color choices
- Mounting base cup and Visor
- Decals & Instructions
- Free tech support
- Gauges perform a pointer sweep/self check on start up
Don't trust your factory gauge for important monitoring of engine functions. By the time your factory idiot light comes on the damage is already done. Monitor you engine functions with one quick glance and notice any problems before it is catastrophic.
Features:
- Wisper quiet and lighting fast Japanese stepper otor movement
- 0-150psi range
- Analog and digital display
- Pointer trailing LED
- Fully programmable warning feature
- Premium waterproof sender
- Includes Plug & Play wire harness (gauge to sender)
- 2 color choices
- Mounting base & Visor
- Decal & Instructions
- Free tech support
- Gauges performs a pointer sweep/self check on start up

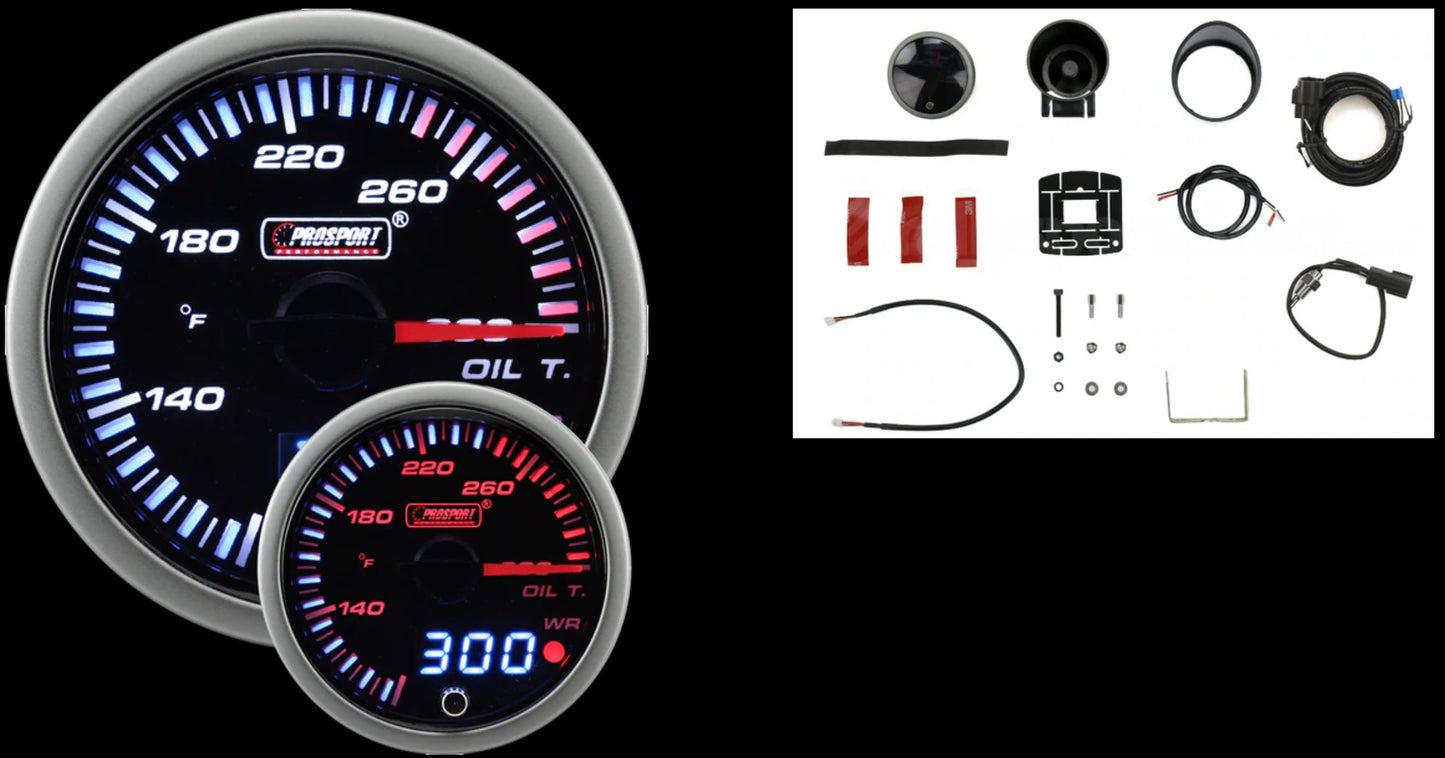

Oil Temperature
With a 270° dial face and utilizing only Premium grade sending units these full sweep dual display electric gauges are durable, fast, reliable, safe & easy to install. Monitor your engine temperature with more precision. Keep hazardous fluids out of the passenger compartment. Set the warning level to any temperature and let the gauge "warn" you once you exceed your set temperature. Amber/White display and blacked out when off. Features:
Voltage
- 100°-300°F Reading range
- 1/8” NPT threaded temperature sender
- Wisper quiet and lighting fast Japanese stepper motor movement
- Analog and digital display
- Pointer trailing LEDs
- Fully programmable warning feature
- Includes temperature sender
- Includes Plug & Play wire harness (gauge to sender)
- 2 color choices
- Mounting base & Visor
- Decals
- Free tech support

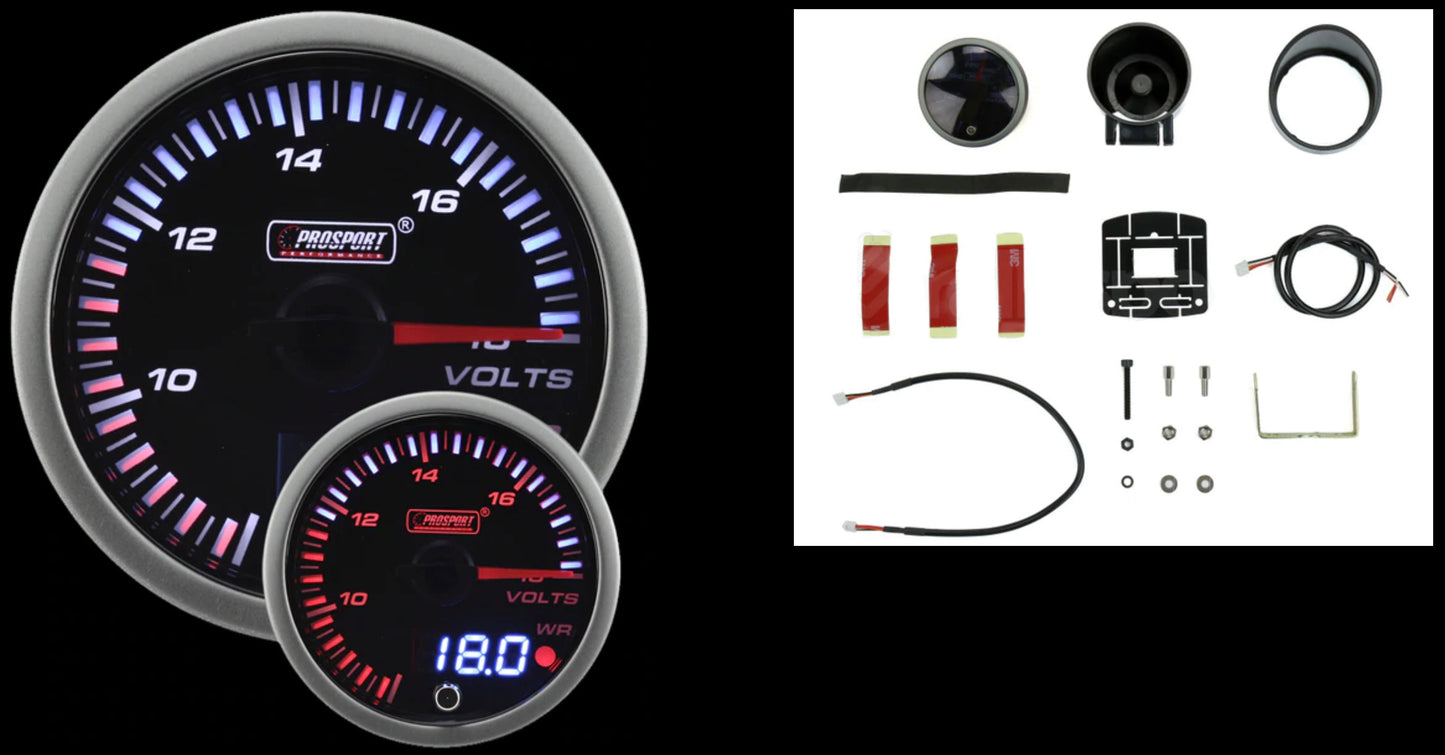

Voltage
Monitor your engine functions with one quick glance and notice any problems before your vehicle leaves you stranded.
Don't wait for your factory battery light to come on, once that happens you'll be walking home! Don't ignore your electrical system, if you have a system, gauges, turbo timers, etc.. You want to keep an eye on your voltage.
Features:
- Whisper quiet and lighting fast Japanese stepper motor movement
- Analog and digital display
- 8v to 18v reading range
- Pointer trailing LEDs
- Fully programmable warning feature
- Premium waterproof sender
- Includes Plug & Play wire harness (gauge to sender)
- 2 color choices
- Mounting base & Visor
- Decal & instructions
- Free tech support
- Gauge performs a digital sweep/self check on Start-up
Water Temperature
With a 270° dial face and utilizing only Premium grade sending units these full sweep dual display electric gauges are durable, fast, reliable, safe & easy to install. Monitor your water/coolant temperature with more precision. Keep hazardous fluids out of the passenger compartment. Set the warning level to any temperature and let the gauge "warn" you once you exceed your set temperature.
Amber/White display and blacked out when off.
Features:
- Whisper quiet and lighting fast Japanese Stepper Motor Movement
- 80°F - 280°F reading range
- 1/8” NPT threaded temperature sender
- Analog and digital display
- Pointer trailing LEDs
- Fully programmable warning feature
- Daisy chain
- Includes temperature sender
- Includes Plug & Play wire harness (gauge to sender)
- 2 color choices
- Mounting base & Visor
- Decal & instructions
- Free tech support

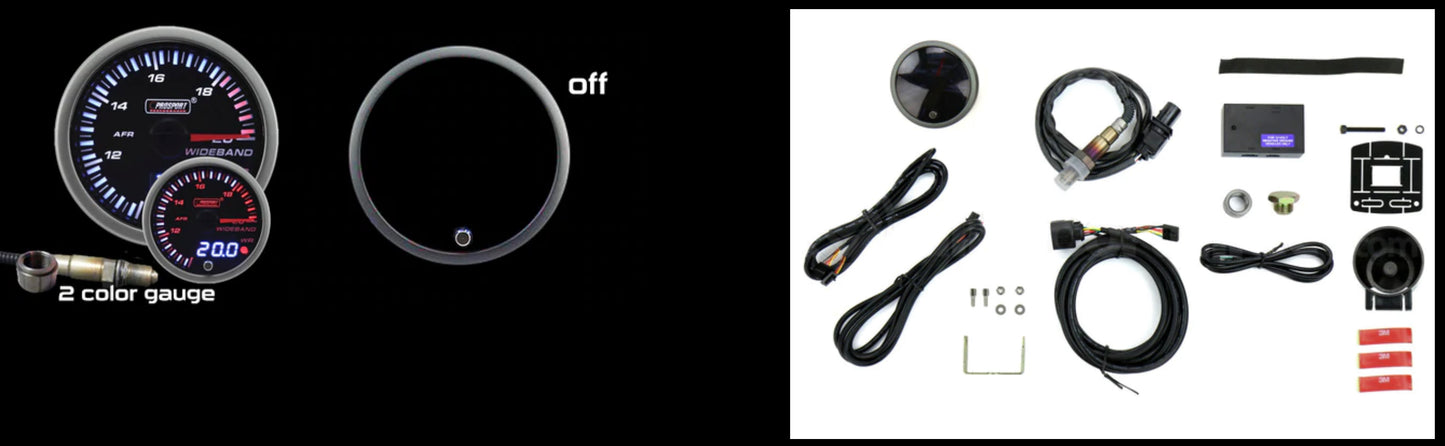

Wideband Air Fuel Ratio
Utilizing the latest Bosch wideband O2 sensor with a 5 wire heated LSU 4.9 (Prosport Inc. is the only one in the USA to use them) our gauge now has the widest range 10.0:1 to 20.0:1 AFR readings on the planet.
Featuring a Dual color (Amber, white) Analog readout in the center of the gauge with trailing LED's around the outside of the scale plate AND a Blue Digital display for immediate reference to AFR.
This is a complete kit that includes everything you need:
- AFR digital Gauge
- Bosch 4.9 five wire heated O2 sensor
- UEGO Control Box
- Weld in Bung
- Instructions
- 10ft Wiring harness(Gauge to O2 sensor)
- Plug & Play wiring harness
- Mounting base & Visor
- Decals & Instructions
- 0-5 volt output signal for data logging

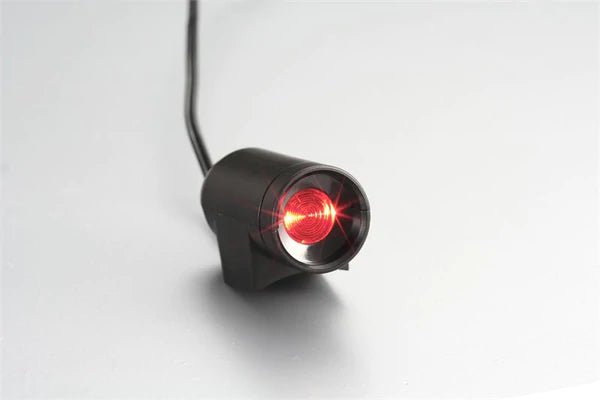

Warning Light
This external warning light can be used with Premium Series gauges.
Just plug this into the back of your Premium Gauge with the supplied harness and that's it! It takes less than a minute to install!
This light is especially handy if you turn off your audible beep. If your gauge has warning / peak recall, this is for you!
Includes a short harness for gauge pod mounting and a 3ft harness for mounting away from your gauges.
Prosport Gauges combine a modern appearance with advanced technology, and are available in a variety of styles including their unique JDM series of gauges, which combine a super responsive stepper motor-driven pointer and LED indicator lights. Prosport also offers a variety of other performance accessories, including catch cans, oil filter adapters, the O2 sensor CEL FIX, turbo blankets, and more.
Other Prosport Performance Products available for any chassis/engine - if you dont see what you’re looking for please message us directly.
We shop our competition - if you find a lower comprable price we will match or beat it - message for details!
