AEM Replacement MAP & Pressure Sensors

$172.50 USD
$166.99 USD $172.50 USD
Sale Sold out
Sensor Type

AEM Replacement MAP & Pressure Sensors

Select Replacement Sensors Pressure Range

*************************************************************************************

MAP & Pressure Sensors

Stainless Steel Absolute (PSIa) Pressure Sensors:
AEM offers high quality stainless steel PSIa sensors in 15psi, 30psi, 50psi, 75psi, and 100psi. PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed.
The most common use for absolute pressure sensors is reading manifold pressure. PSIa pressure sensors are required if you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

Stainless Steel Gauge style (PSIg) Pressure Sensors:
AEM offers high quality stainless steel PSIg sensors in 100psi, 150psi, 500psi, 1,000psi, and 2,000psi.  Gauge style pressure sensors reference pressure above atmospheric pressure. When exposed to atmospheric pressure, gauge style pressure sensors will read 0 psig. Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure etc.

Brass Absolute (PSIa) Pressure Sensors:
AEM offer high quality brass PSIa sensors in 30psi, 50psi, and 75psi. PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa sensors are required of you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

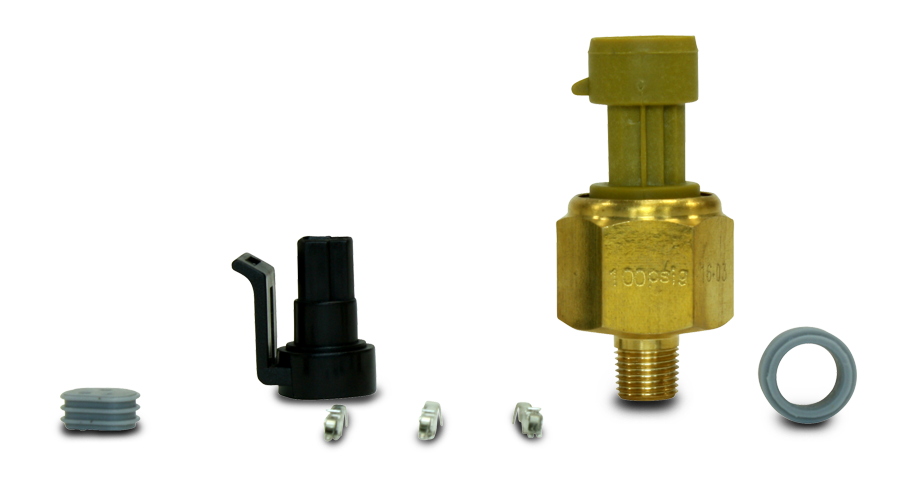

Brass Gauge style (PSIg) Pressure Sensors
AEM offers brass PSIg sensors in 15psi, 100psi, and 150psi. Gauge style pressure sensors reference pressure above atmospheric pressure. When exposed to atmospheric pressure, gauge style pressure sensors will read 0 psig. Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure etc.

Which Pressure Sensor is right for you?
There are many different tools that can be used for measurement, but the degree of accuracy is dependent upon the tool. For example, a ruler can measure distance with a good degree of accuracy, but for a more precise measurement a caliper should be used.  The difference between a brass pressure sensor and a stainless steel pressure sensor is similar if we think about it in these terms:

Stainless Pressure Sensor = Caliper
Use a SS Pressure Sensor where you need exact details of the pressure.
  • Stainless-steel sensors accurate to within 1% of full scale (pressure sensors)
  • High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)
  • Connector and pins included
Example: MAP Sensor information for the ECU – Calibration/crucial information for the ECU.

Brass Pressure Sensor = Ruler
Use a Brass Pressure Sensor where you need a good reference to what pressure is being seen.
  • Brass sensors accurate to within 3% of full scale (pressure sensors)
  • High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)
  • Connector and pins included
Example: Brass Pressure Sensor used for a Boost Gauge – Reference/Information for knowing manifold pressure, not for ECU calibration.

    STOP! THIS PRODUCT HAS LEGAL RESTRICTIONS.
    READ THIS BEFORE INSTALLING/USING!

    WARNING!

    THIS IS A RACE ONLY PRODUCT MANUFACTURED AND SOLD FOR INSTALLATION ON VEHICLES DESIGNED TO BE USED SOLELY FOR COMPETITION PURPOSES. ONCE THIS PART IS INSTALLED, THE VEHICLE MAY NEVER BE USED, OR REGISTERED OR LICENSED FOR USE, ON A PUBLIC ROAD OR HIGHWAY. IF YOU INSTALL THIS PART ON YOUR VEHICLE AND USE THE VEHICLE ON A PUBLIC ROAD OR HIGHWAY, YOU WILL VIOLATE THE CLEAN AIR ACT AND MAY BE SUBJECT TO PERSONAL CIVIL OR CRIMINAL LIABILITY, INCLUDING FINES OF UP TO $4,819 PER DAY.
    IT IS THE RESPONSIBILITY OF THE INSTALLER AND/OR USER OF THIS PRODUCT TO ENSURE THAT IT IS USED IN COMPLIANCE WITH ALL APPLICABLE LAWS AND REGULATIONS. IF THIS PRODUCT WAS PURCHASED IN ERROR, DO NOT INSTALL AND/OR USE IT. THE PURCHASER MUST ARRANGE TO RETURN THE PRODUCT FOR A FULL REFUND.
    THIS POLICY ONLY APPLIES TO INSTALLERS AND/OR USERS WHO ARE LOCATED IN THE UNITED STATES; HOWEVER, CUSTOMERS WHO RESIDE IN OTHER COUNTRIES SHOULD ACT IN ACCORDANCE WITH THEIR LOCAL LAWS AND REGULATIONS.
    WARNING:
    This installation is not for the tuning novice! Use this system with EXTREME caution! The AEM Infinity Programmable EMS allows for total flexibility in engine tuning. Misuse or improper tuning of this product can destroy your engine! If you are not well versed in engine dynamics and the tuning of engine management systems DO NOT attempt the installation. Refer the installation to an AEM-trained tuning shop or call 800-423-0046 for technical assistance.
    NOTE: IT IS THE RESPONSIBILITY OF THE ENGINE TUNER TO ULTIMATELY CONFIRM IF THE CALIBRATION IS SAFE FOR ITS INTENDED USE. AEM holds no responsibility for any engine damage that results from the misuse or mistuning of this product!

  • PROPOSITION 65 WARNING: These products may contain chemicals known to the State of California to cause birth defects or other reproductive harm. For more information visit www.P65Warning.ca.gov
