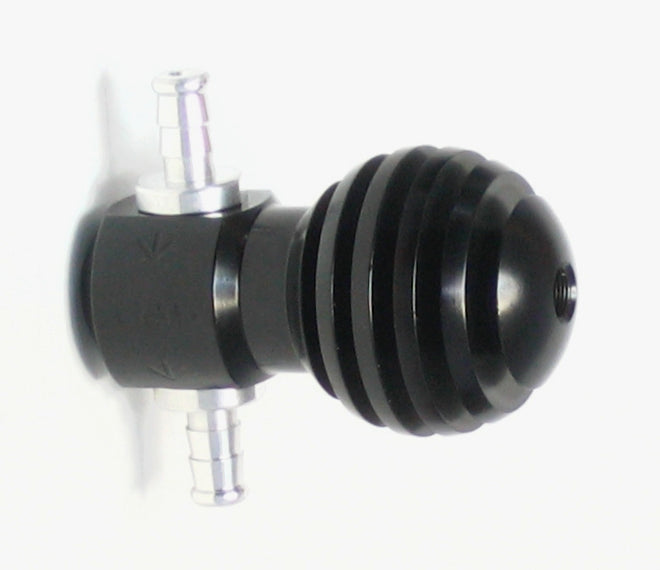

Go Fast Bits Atomic Single Stage Boost Controller

Go Fast Bits Atomic Single Stage Boost Controller

GFB Atomic Boost Controller Case Study
The Atomic has earned a reputation as being one of the most reliable and effective manual boost controllers on the market, boasting a repeatable and steady boost curve, quick rise rate, and great bang-for-buck!

The Atomic Boost Controller was tested on an MY02 Subaru WRX (whose only mods were a turbo-back exhaust) back-to-back with the factory controller. A base-line power run was performed with the factory boost control, and the boost level was measured at the same time. The Atomic was then installed and set to the same peak boost level of 0.9bar (13.2 psi) so that the spool-up time could be accurately compared before and after the installation.

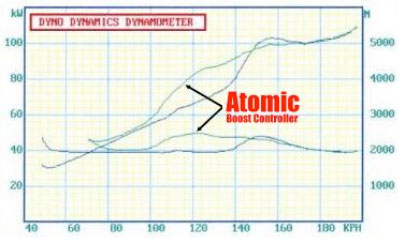

The dyno graph shows the Atomic boost curve in green, and the factory curve in blue. 4th gear is used for both tests, and proof that the Atomic was set to the same peak level is seen towards the end of the chart as the two curves meet. However, notice the massive gains down low in the rev range, as much as 18kW (23.4hp) AT THE WHEELS!

This increase in power shows that the Atomic allows the boost to rise significantly earlier than the factory controller, which on the road represents much better acceleration from a whopping 1700RPM earlier in the rev range. All this WITHOUT exceeding the factory peak boost level, and for a pocket-money price!

It is important to note that the MY01-02 (MY02-03 in the US, GDA chassis) model responds very well to this modification, because the factory boost mapping is very conservative in an attempt to keep the torque curve flat and the power delivery linear (which totally kills the feeling that you are driving a turbo!). Note of course that boost can be increased above the factory level for more power gains, but the purpose of this experiment was only to show the improved spool-up potential on this particular model WRX.

So, if you want your GDA WRX to REALLY feel lively, fit an Atomic or Reactor boost controller for the best “bang-for-your-buck” modification you can make!

Simple And Reliable Boost Control
Manual Boost Controllers may lack the extra features of an EBC (Electronic Boost Controller), but they get the job done!

When you need simple, reliable, set-and-forget boost control, a Manual Boost Controller is hard to beat. Installation is as simple as connecting a couple of hoses, and setup is as easy as turning the adjustment until you hit your target. Once that’s done, you can forget about it and drive your car. Being a rugged, mechanical device, it will never vary or fail, no matter how much abuse you can throw at it.

Our Manual Boost Controllers are available in two types, one is suited for conventional pneumatic wastegates, and the other is for use with vacuum-actuated VNT (Variable Nozzle Turbine)/VGT (Variable Geometry Turbine) turbos that are commonly used on diesel engines.

Repeatable And Stable Boost Curve
100% Reliability, Zero Maintenance
Easy To Install In Minutes
Easy To Adjust, Set-and-forget
Precision Needle Valve Bleed System, More Stable Than “ball-and-spring” Types
Manufactured In Australia In Accordance With Iso 9001

About
From the very beginning of my career, I’ve learnt that it’s amazing where tinkering can take you.

I’ve been engineering for 35 years, including 10 years manufacturing components for the automotive market including Original Equipment Manufacturers (OEM). I’ve been determined to push the limits of high performance engines since I was tinkering with my Mini Cooper S in the ‘80s.

When I bought my WRX in 1997, I decided to step it up a notch and get serious. At first, I bought components ‘off the shelf’. Most of these were expensive and imported. Indeed, this was true for the Australian-made ones too. Nothing, however, came even close to the quality I knew they should be, as they were made of inferior materials and of generally poor workmanship, and did not give me the performance gains I was looking for.

So I started designing, testing and developing “GO FAST BITS”, a range of innovative and high-quality blow-off valves, boost controllers, pulley kits and short shifters. These products, unlike what was previously available, were meticulously designed and manufactured from the highest grade materials, working the way they were designed to.

Performance should not be about compromise – parts should fit correctly and deliver real performance outcomes, without making the car difficult to live with on a daily basis. GFB now has three qualified engineers (mechanical and mechatronic), and a team of dedicated enthusistic & passionate individuals who make the GFB name what it is today.

“GO FAST BITS” products are Proudly Australian, made in accordance with the ISO 9001 quality management system. Constantly we’re developing new, and innovative products.

Keep an eye on the website for the latest of GFB’s innovations.
John Adrian, Chief Engineer.
