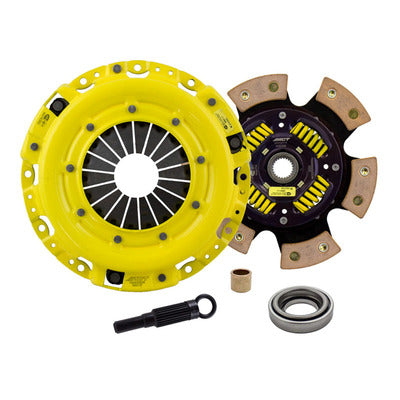

ACT VQDE 669ft-lb Clutch & Pressure Plate Track Kit (NZ1-XTG6)
Couldn't load pickup availability
ACT VQDE 669ft-lb Clutch & 18lb Flywheel Street/Track Kit
| Item Description | XT/Race Sprung 6 Pad |
|---|---|
| Product Weight (lbs.) | 18 |
| Torque Capacity (ft/lbs.) | 669 |
| Torque Capacity Over OE | 83% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 9.8 |
| Clutch Disc Diameter (Millimeters) | 250 |
| Input Shaft Diameter (inches) | 1 |
| Pressure Plate Type | Xtreme |
| Warranty | 12 Months (view details) |
NZ1-XTG6 kit features an Xtreme pressure plate for the most demanding driver.
ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life.
All diaphragms endure a four-stage, heat-treating process for unparalleled performance.
ACT pressure plates have precision cover stampings to provide rigidity and consistency.

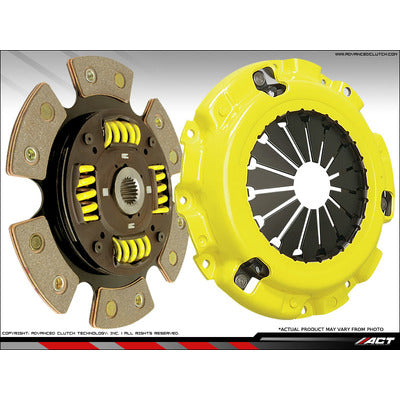

ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions.
ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability.
With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster.
The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Kit includes bronze transmission bushing, throw-out bearing, and clutch alignment tool.| Feel | Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for high horsepower street or race use |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Other Advanced Clutch Technology Products available for any chassis/engine - if you dont see what you’re looking for please message us directly.
We shop our competition - if you find a lower comprable price we will match or beat it - message for details!
Based out of Lancaster, CA, Advanced Clutch Technology has been designing and building high-performance clutch components for the Sport, Compact, Domestic, and Diesel Truck markets since 1994. Their product line includes single- and multi-disc clutch kits, flywheels, throwout bearings, and clutch discs.
