HKS 3SX EXHAUST Series
Couldn't load pickup availability
3SX EXHAUST EXHAUST Series
Description

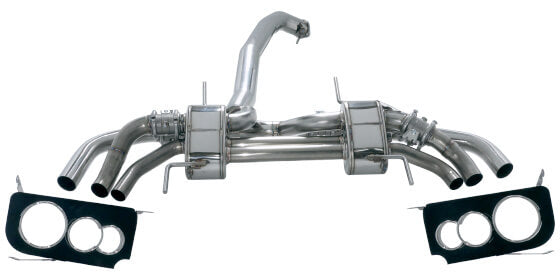

The digital control valve exhaust system for sound pressure and exhaust efficiency. It's always challenge to acquire both quietness and high output for automobile. To comply for turbo upgraded for R35 GT-R, we have developed changeover valve system muffler. So depending on the exhaust flow, the flow channel can be changed to give more power and cool exhaust sound.

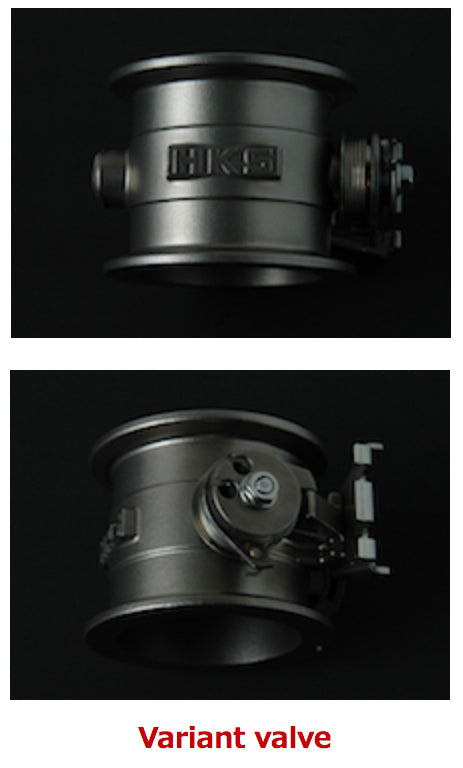

2 valves in front and 2 valves in the back operated by electric motor. The valves are connected to the motor with cables and special unit controls the motor.

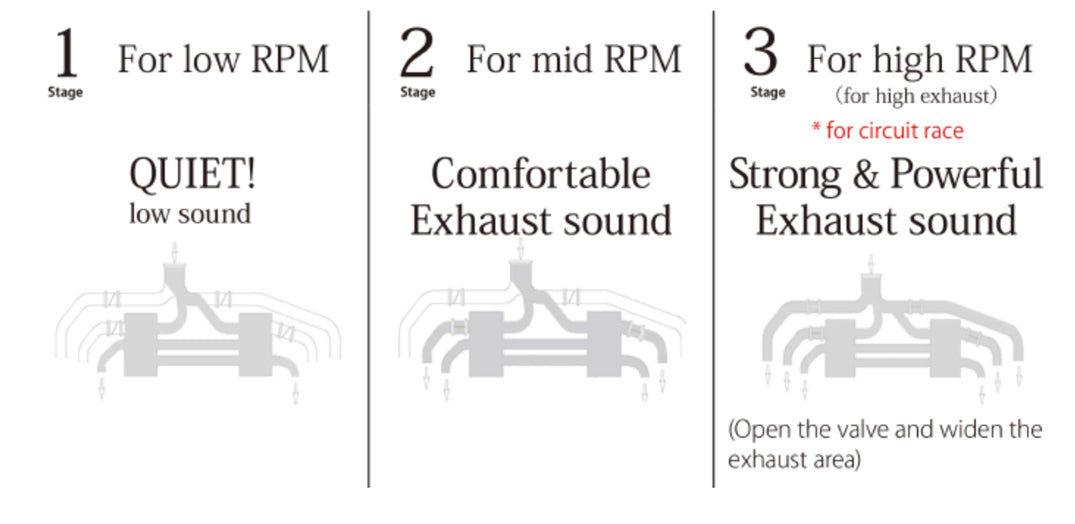

In the automatic mode, the valves are opened or closed by the RPM or automobile speed. For low RPM (Stage 1), all the valves are closed which provides quiet sound. For mid RPM (Stage 2), only the back valves are open for both power and quietness is provided. And finally for high RPM (Stage 3), all the valves are open for the most power. Also the manual mode let you open all the valves.

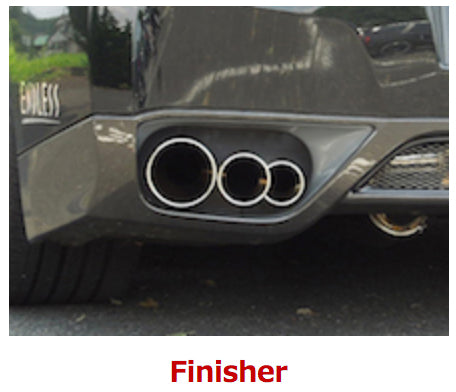

The finisher has a special surface work that make hard for soot to stick to.

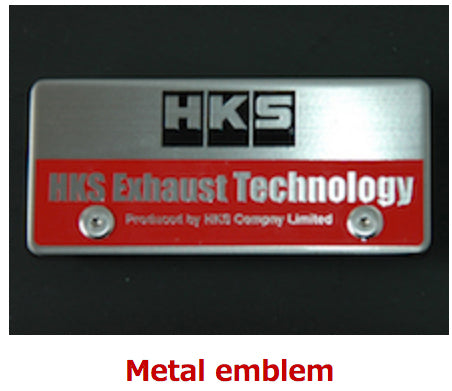

A special metal emblem comes with the kit.

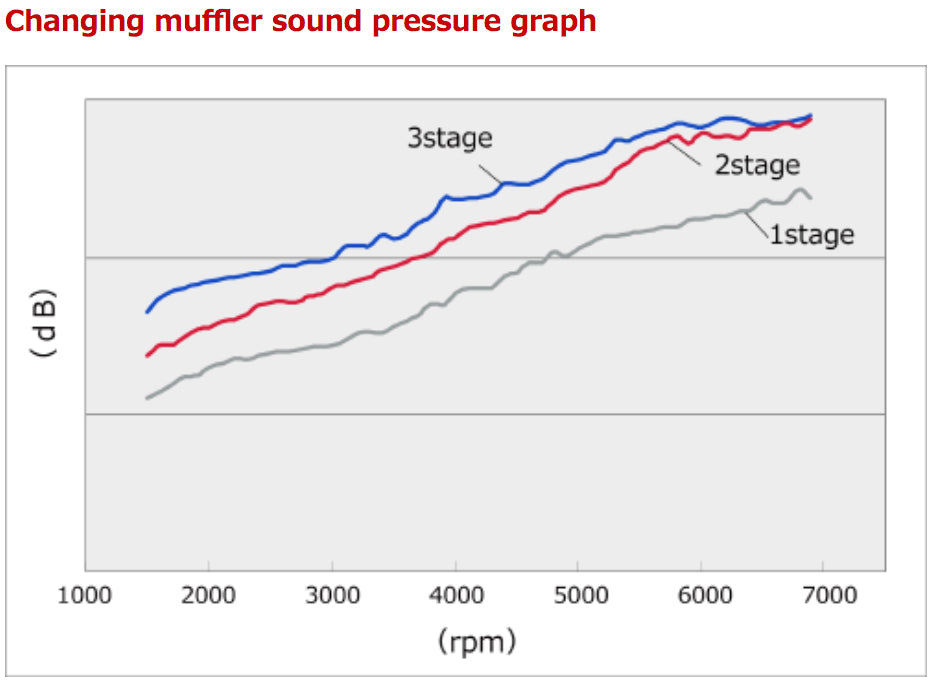

This graph shows each 3 stages testing. We have analyzed muffler's sound pressure and exhaust balance and set the switching point of the stages. (When driving, it automatically changes)
Details
| Make | Nissan |

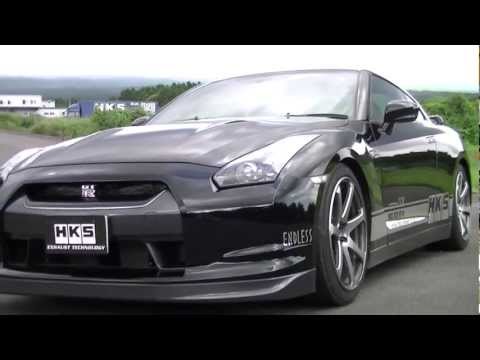

| Name | R35 GT-R 3STAGE EXHAUST SYSTEM |
| Model | GT-R |
| Product Number | 31025-AN006-08-11 |
| Engine | VR38DETT |
*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

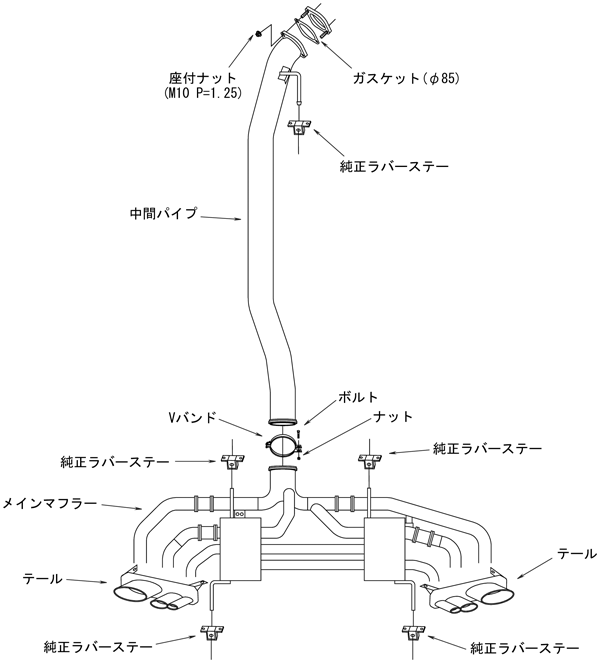

*2: Main material in the component figure.
： SUS304/High quality stainless steel.
： SUH409/Stainless steel commonly used for stock exhaust.
*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
