ECU Pin Out Diagrams - VHR Engine

ECU Pin Out Diagrams - VHR Engine

Nissan’s ECU Pinout VHR diagram is from ‘Harness Side’ which is rather frustrating when youre trying to check pins from the front of the connector.

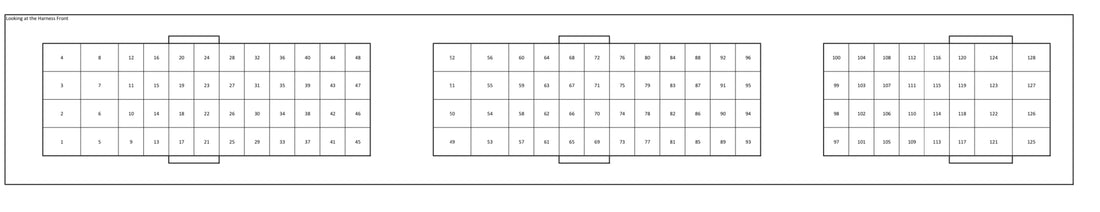

Attached is a inverted diagram of the ECU connector from the connector (Terminal) side.

This is for a 2014 Q40 and may be different for your specific application
